When installing: Ensure that the LCD connector is attached firmly.
2030 LCD hinges
For access, remove these FRUs in order:
• “1160 LCD unit” on page 81
• “2010 LCD bezel ” on page 83

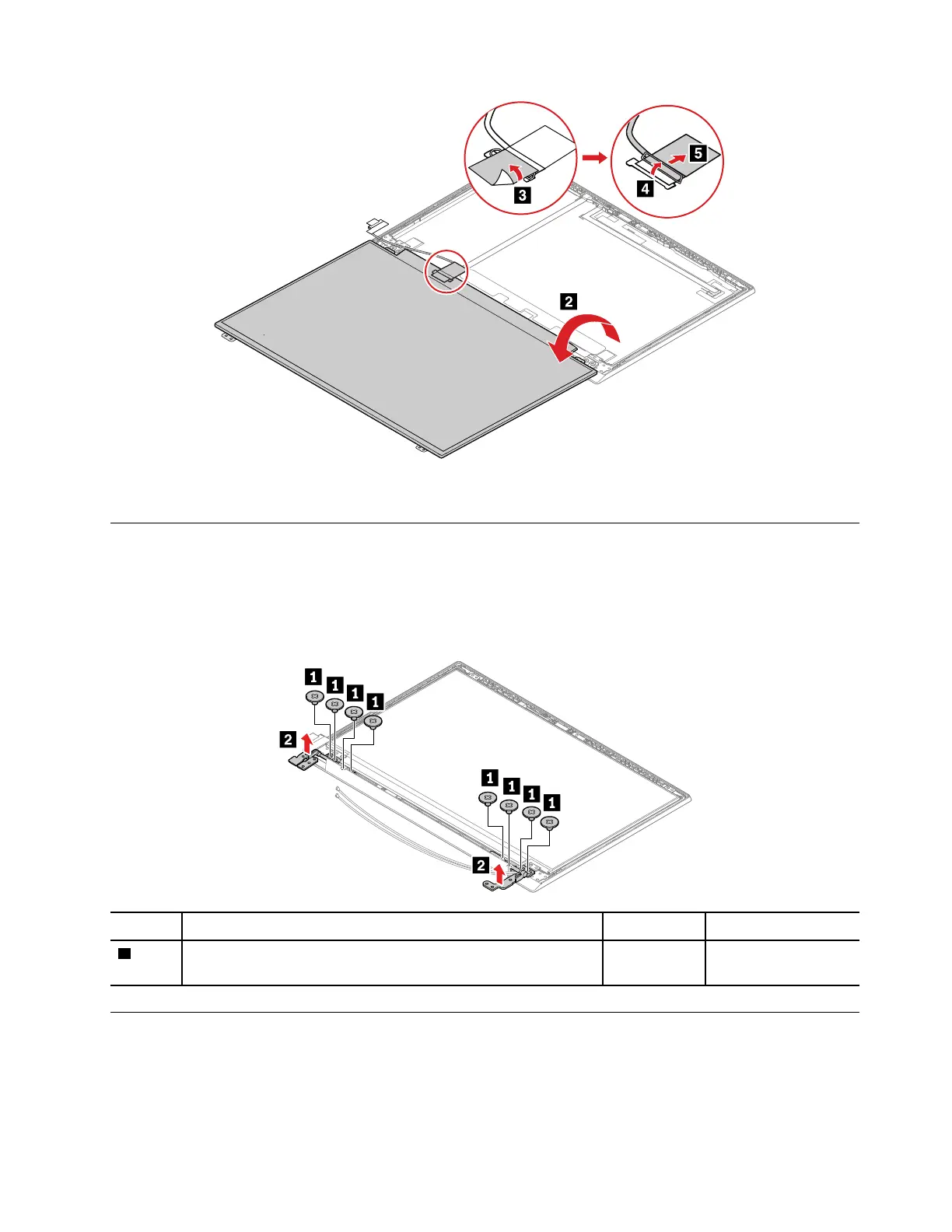

Removal steps of the LCD hinges
Step Screw (quantity) Color
Torque
1
M2 × 3 mm, wafer-head, nylon-coated (8)
Black 0.181 Nm
(1.85 kgf-cm)
2040 Camera/microphone module
For access, remove these FRUs in order:
• “1160 LCD unit” on page 81
• “2010 LCD bezel ” on page 83
• “2020 LCD panel” on page 84
