Lenovo IdeaPad U310/U410
47

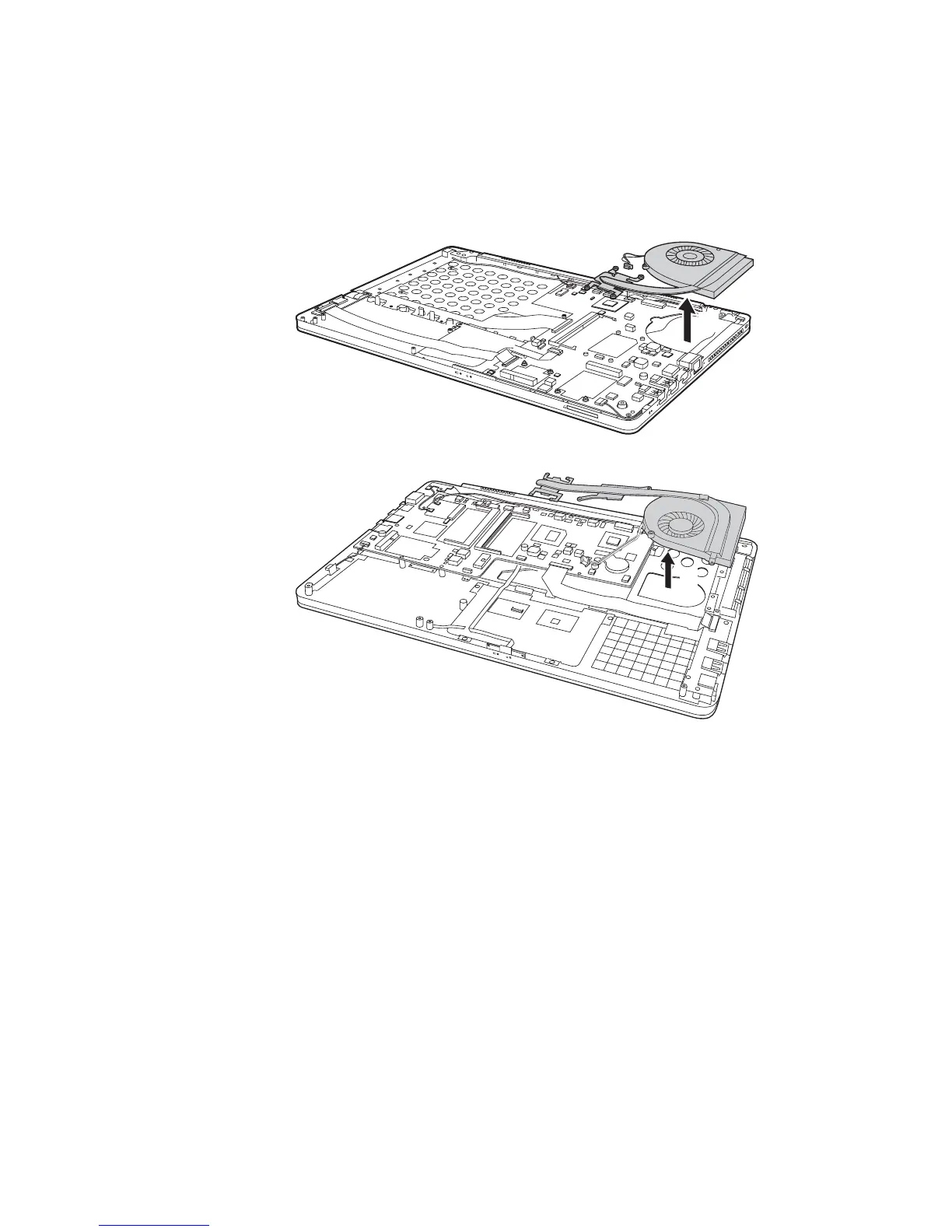

Figure 6. Removal steps of fan assembly and heat sink assembly (continued)
Lift the fan assembly and heat sink assembly in the direction shown by arrow
. Be careful not to damage the connector.
U310:
U410:
d
d
d
