1070 Keyboard
For access, remove this FRU:
• “1010 Battery pack” on page 34
• “1030 Hard disk drive” on page 38
• “1040 DIMM” on page 41
• “1050 PCI Express Mini Card for wireless LAN/WAN” on page 43
• “1060 Fan assembly and Heat Sink assembly” on page 45

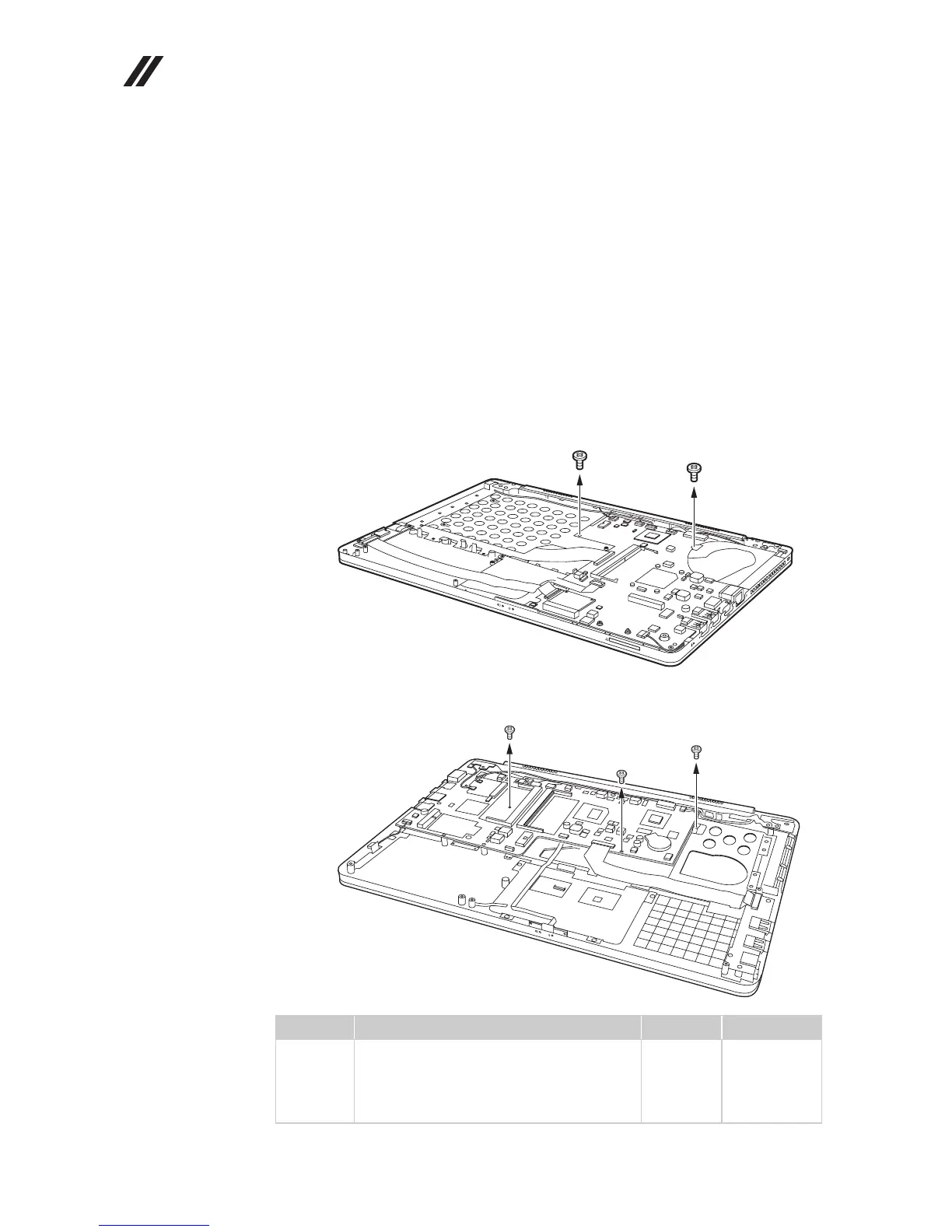

Figure 7. Removal steps of keyboard
Remove the screws .
U310:
U410:
Step Screw (quantity) Color Torque
M2.0 × 2.5 mm, flat-head, nylok-coated
(2) (U310)
M2.0 × 3.0 mm, flat-head, nylok-coated
(3) (U410)
Silver
Silver
2.0 kgfcm
2.0 kgfcm
a
a
a
a
a
a
a
