Lenovo IdeaPad U310/U410
45
1060 Fan assembly and Heat Sink assembly
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1030 Hard disk drive” on page 38
• “1040 DIMM” on page 41
• “1050 PCI Express Mini Card for wireless LAN/WAN” on page 43

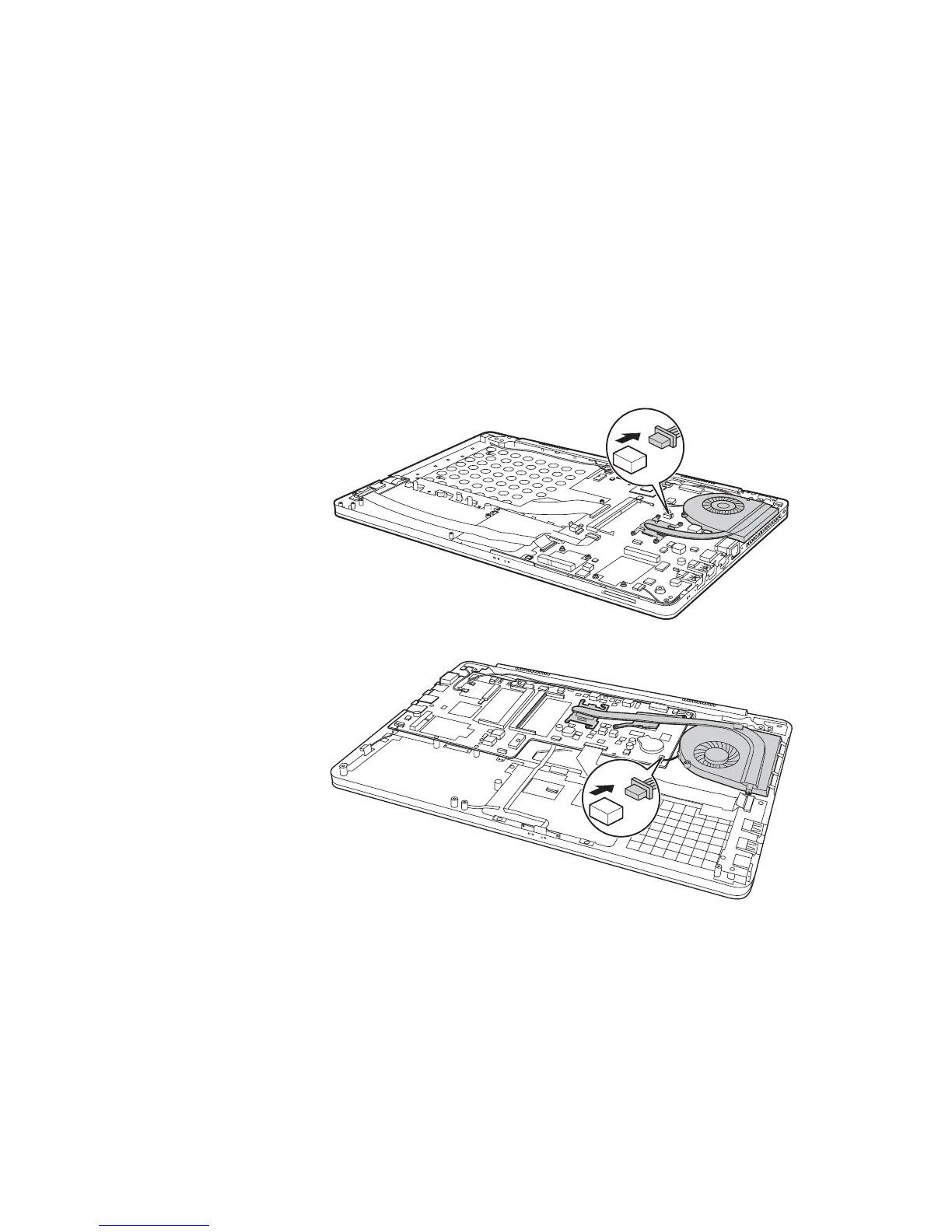

Figure 6. Removal steps of fan assembly and heat sink assembly
Detach the fan connector in the direction shown by arrow .
U310:
U410:
When installing: Make sure that the fan connector is attached firmly to the
system board.
