Lenovo IdeaPad U310/U410
63

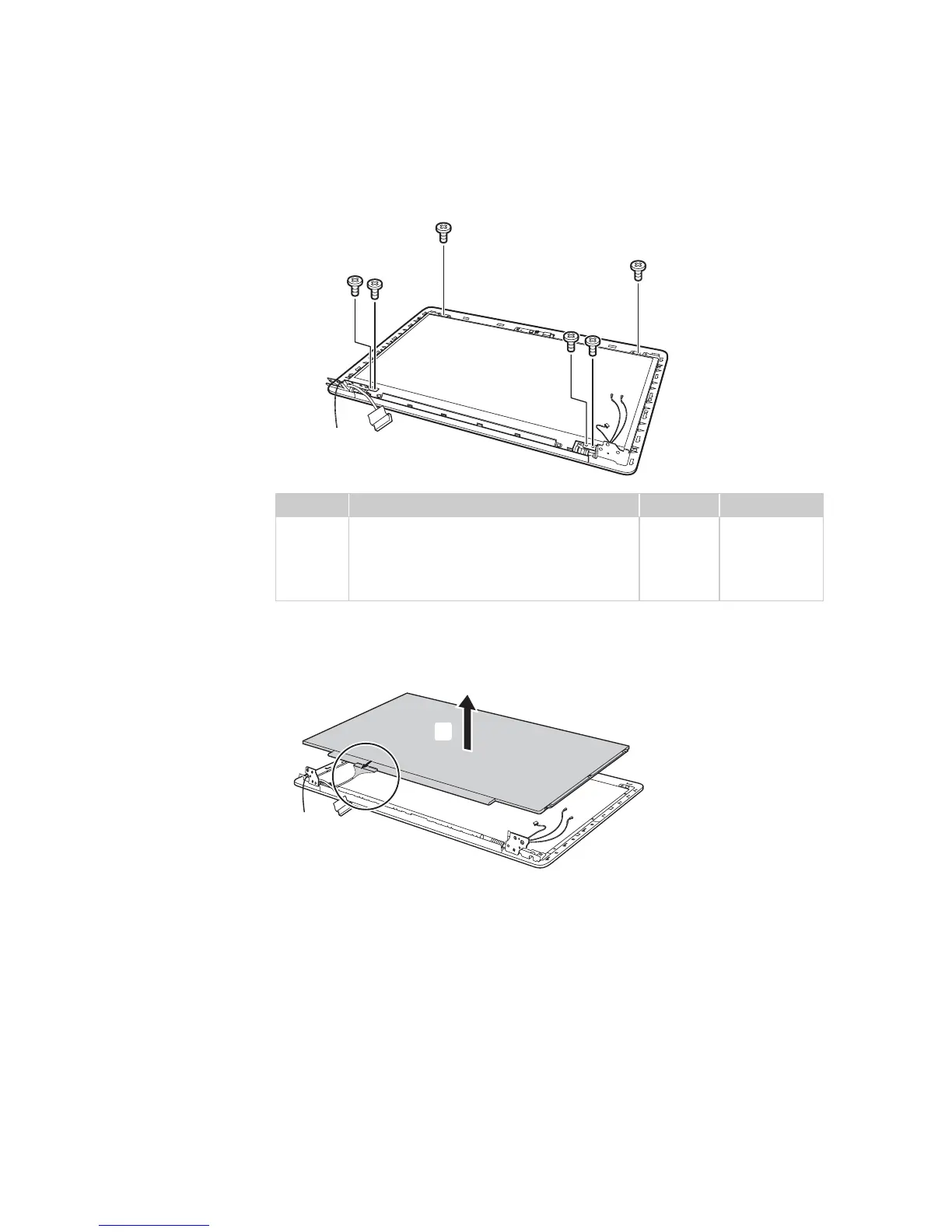

Figure 12. LCD panel, LCD cable, hinges and speakers (continued)
U410:
Disconnect the connector , lift the LCD panel in the direction shown by arrow
.
U310:
When installing: Make sure that the connector is attached firmly.
Step Screw (quantity) Color Torque
M1.7 × 1.5 mm, flat-head, nylok-coated
(4) (U310)
M2.0 × 2.5 mm, flat-head, nylok-coated
(6) (U410)
Silver
Silver
2.0 kgfcm
2.0 kgfcm
a
a
a
a
a
a
a
b
To Next Page
