Connecting cables
After assembling your monitor, you must connect cables correctly to use the monitor and computer. Your
monitor can be used with either the Tiny installed in the monitor or an external desktop computer. To
connect cables, do one of the following:

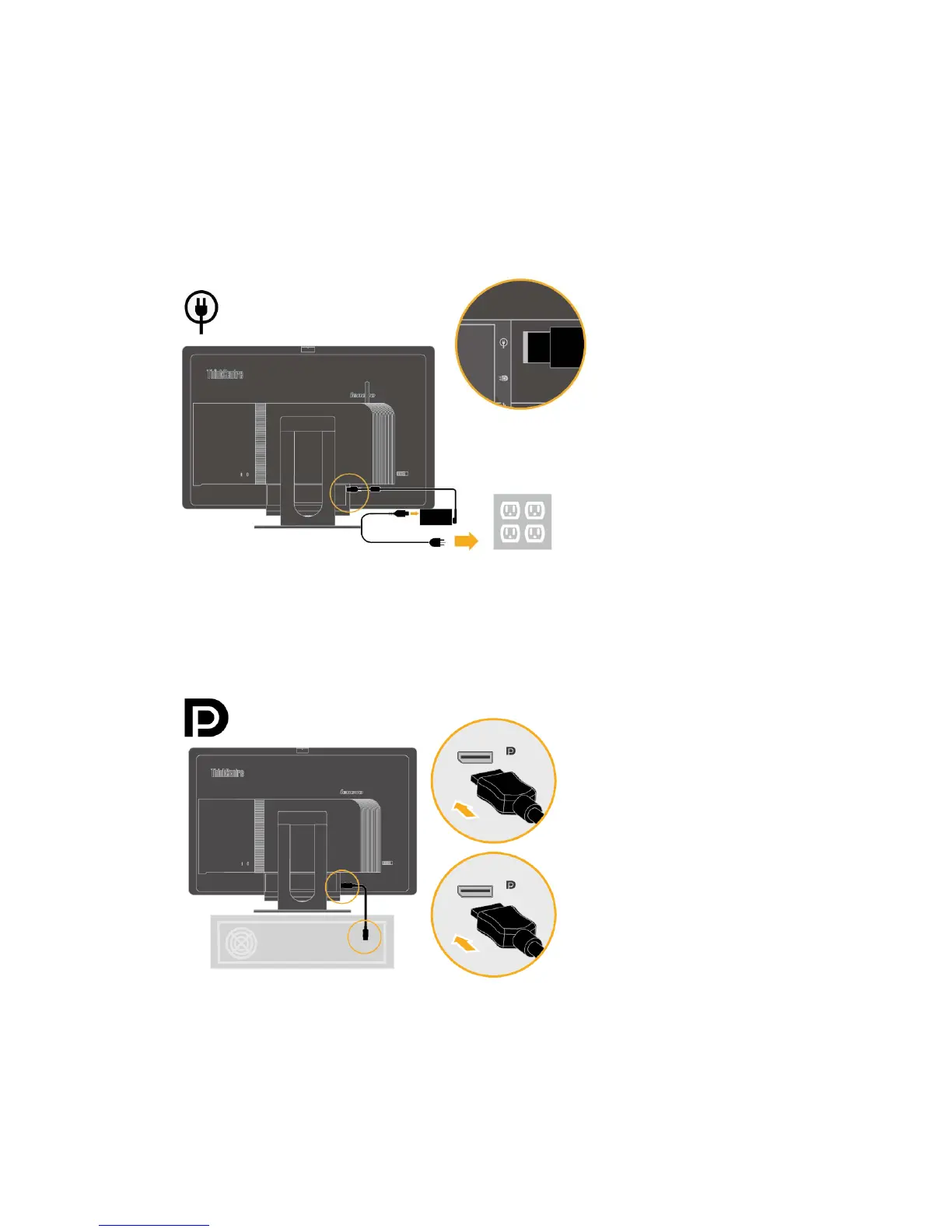

If you use the Tiny installed in the monitor, connect the ac power adapter cable and power cord that come
s with
the monitor. First connect the ac power adapter cable to the ac power adapter connector on the monitor. Then,
connect one end of the power cord to the ac power adapter and the other end to a properly-grounded electrical
outlet.
If you use the external desktop computer, do the following:
1.
Use a DisplayPort cable of this type as shown. Connect one end of the DisplayPort cable to the DisplayPort
connector on the monitor and the other end to a DisplayPort connector on the computer. To locate the
DisplayPort connector on the monitor, see “Locating connectors and controls on your monitor” on page 2.
Chapter 1 Getting started 9
