•“1110Keyboard”onpage76
•“1120Keyboardbezel”onpage82
•“1140Systemboardassembly”onpage85
•“1160LenovoOneLinkconnectorcover”onpage91
•“1170DC-inbracketandDC-inconnectorwithRJ45subcard”onpage91
•“1200LCDunit”onpage95
•“2010LCDbezelassembly”onpage101
•“2020LCDpanelandhinges”onpage102

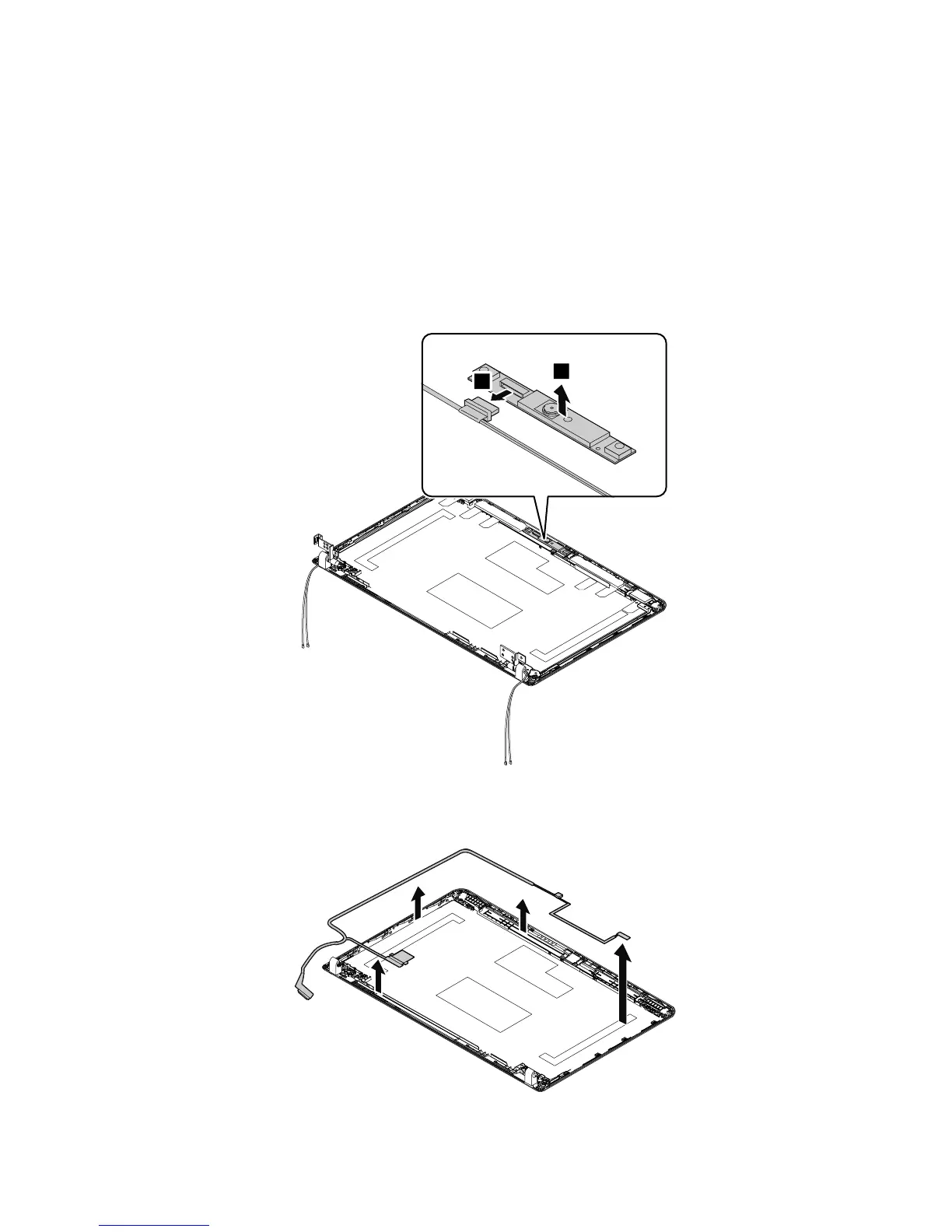

Removalstepsofthecamerawithmicrophonecombocard
Note:Thecameraisonlyavailableinsomemodels.
1
2
Wheninstalling:Ensurethattheconnectorisattachedrmly.
RemovalstepsofLCDcables
Chapter9.RemovingorreplacingaFRU105
