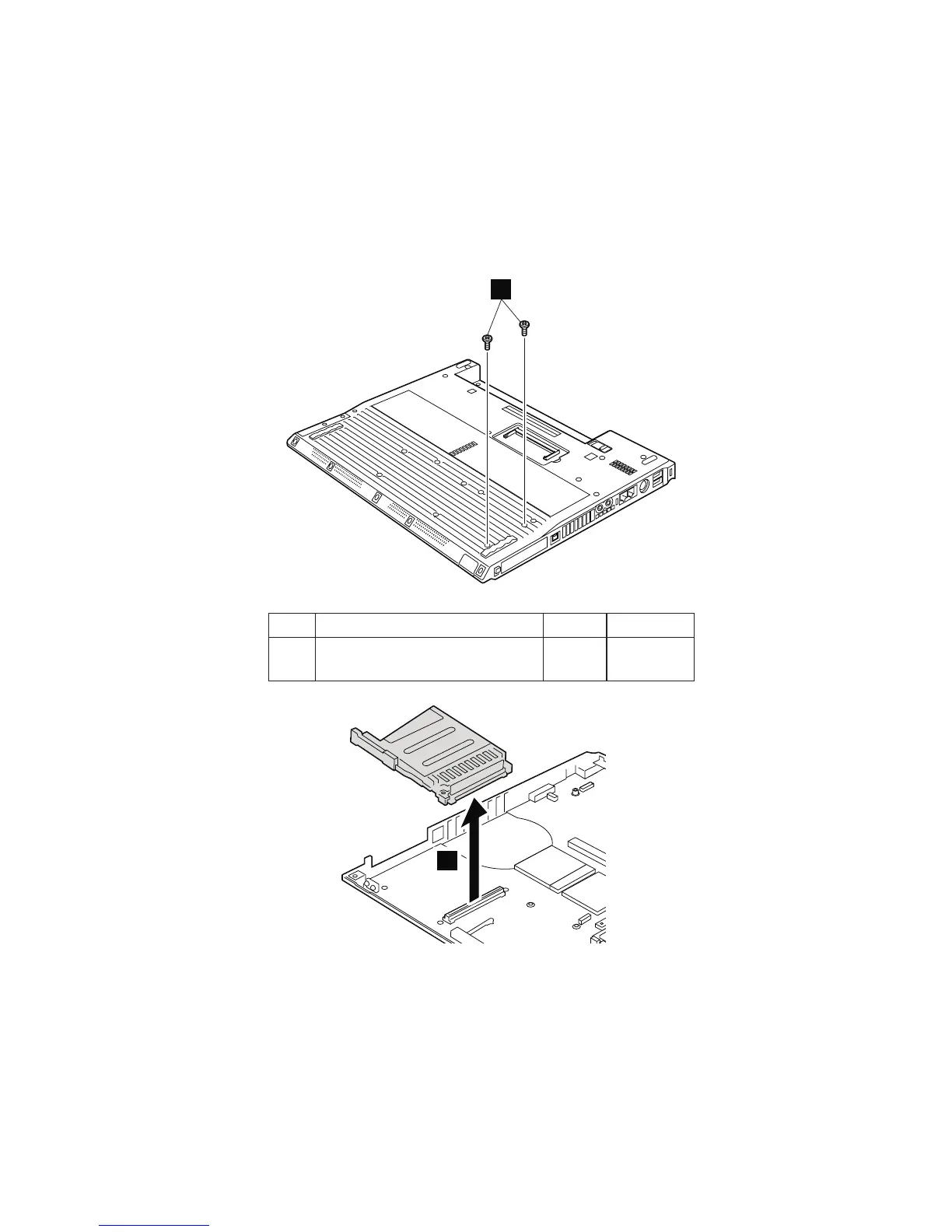

1160 PC Card slots assembly
For access, remove these FRUs in order:
v “1010 Battery pack” on page 67
v “1030 Hard disk drive” on page 69
v “1050 Keyboard” on page 72
v “1090 Keyboard bezel” on page 81
v “1140 Speaker assembly” on page 92
v “1150 IEEE 1394 cable” on page 94
1
Step Screw (quantity) Color Torque
1 M2 × 4 mm, flat-head,
nylon-coated (2)
Black 0.245 Nm
(2.5
kgfcm)
2
When installing: Make sure that the connector 2 is
firmly attached to the system board.
Then, secure the screws from the
underside of the computer.
Removing and replacing a FRU
ThinkPad R50/R50p and R51 Series 97
