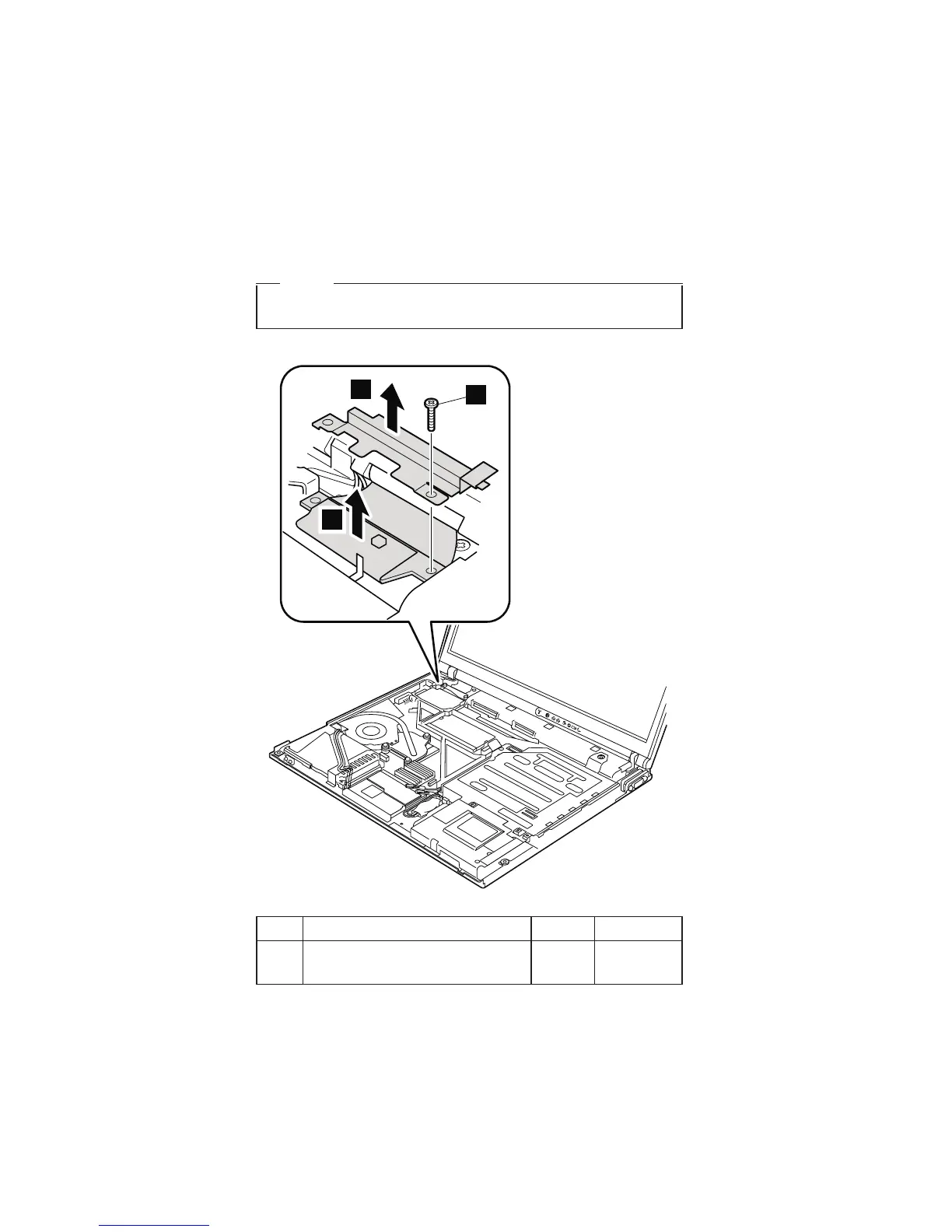

1150 IEEE 1394 cable
For access, remove these FRUs in order:
v “1010 Battery pack” on page 67
v “1030 Hard disk drive” on page 69
v “1050 Keyboard” on page 72
v “1090 Keyboard bezel” on page 81
v “1140 Speaker assembly” on page 92
Note
Some models do not have the IEEE 1394 cable.
1
2
3
Step Screw (quantity) Color Torque
1 M2 × 12 mm, bind-head,
nylon-coated (1)
Black 0.245 Nm
(2.5
kgfcm)
(continued)
Removing and replacing a FRU
94 R50/R50p, R51 Series
To Next Page
