1170 Ultrabay Enhanced shield kit
For access, remove these FRUs in order:
v “1010 Battery pack” on page 67
v “1020 Ultrabay Enhanced device” on page 68
v “1030 Hard disk drive” on page 69
v “1050 Keyboard” on page 72
v “1090 Keyboard bezel” on page 81
Note:
Step 1 is only for the models with 15.0-in. LCD.
For the other models, skip this step.
1

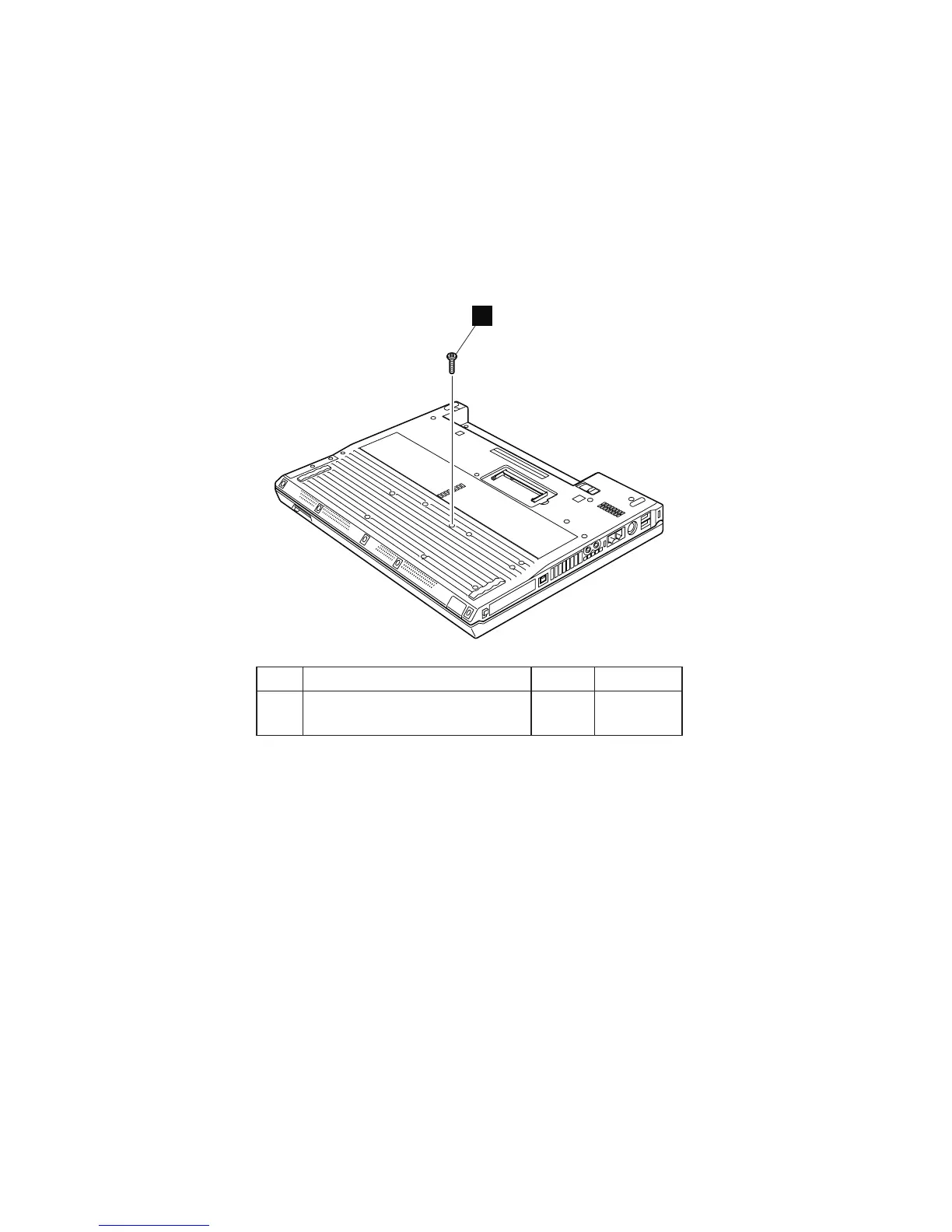

Step Screw (quantity) Color Torque
1 M2 × 12 mm, bind-head,
nylon-coated (1)
Black 0.245 Nm
(2.5
kgfcm)
(continued)
Removing and replacing a FRU
98 R50/R50p, R51 Series
To Next Page
