1120 CPU
For access, remove these FRUs in order:
v “1010 Battery pack” on page 67
v “1030 Hard disk drive” on page 69
v “1050 Keyboard” on page 72
v “1090 Keyboard bezel” on page 81
v “1110 Fan assembly” on page 89

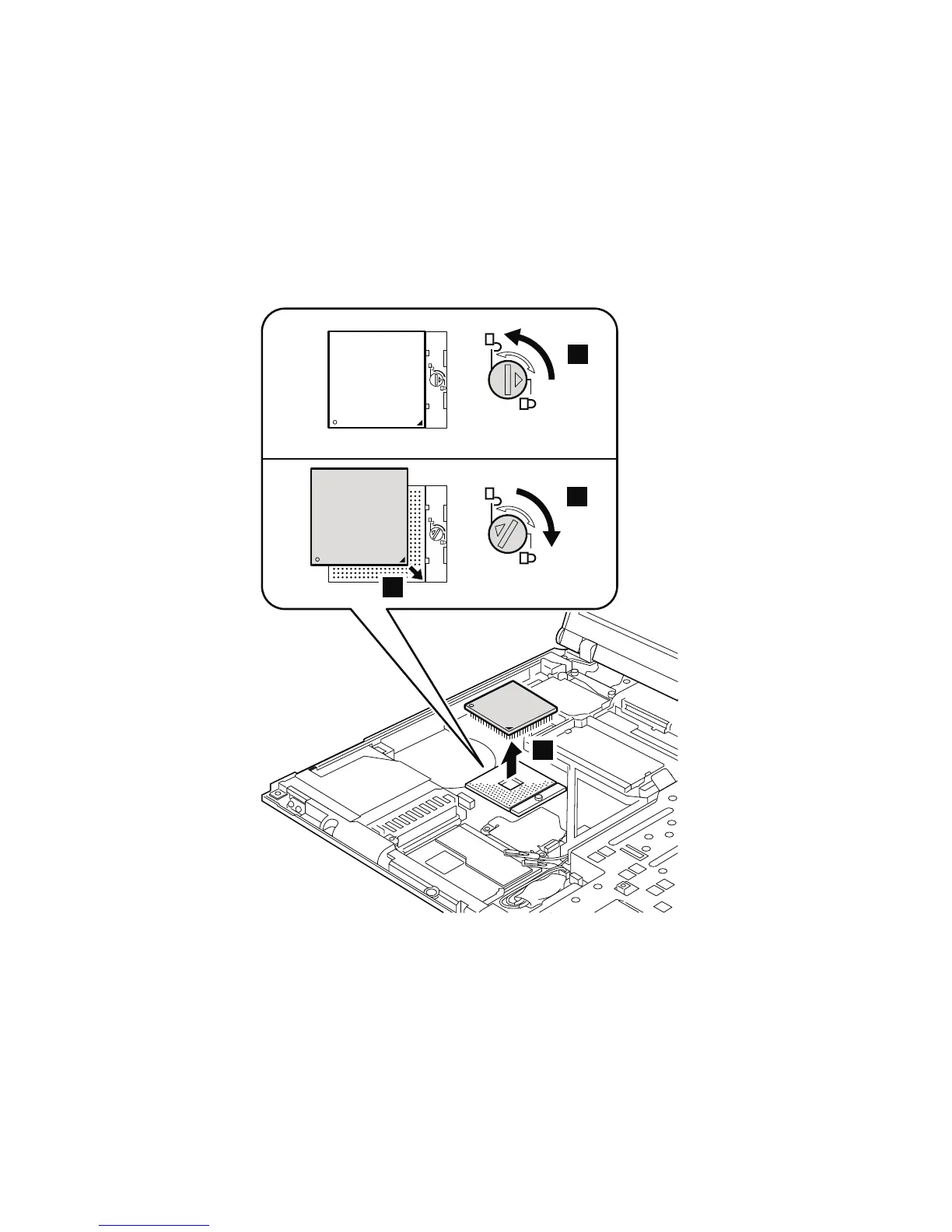

Rotate the head of the screw in the direction of arrow 1
to release the lock; then remove the CPU 2.
2
1
b
a
When installing: Place the CPU on the CPU socket a,
and then rotate the head of the screw in
the direction of arrow b to secure the
CPU.
Removing and replacing a FRU
90 R50/R50p, R51 Series
