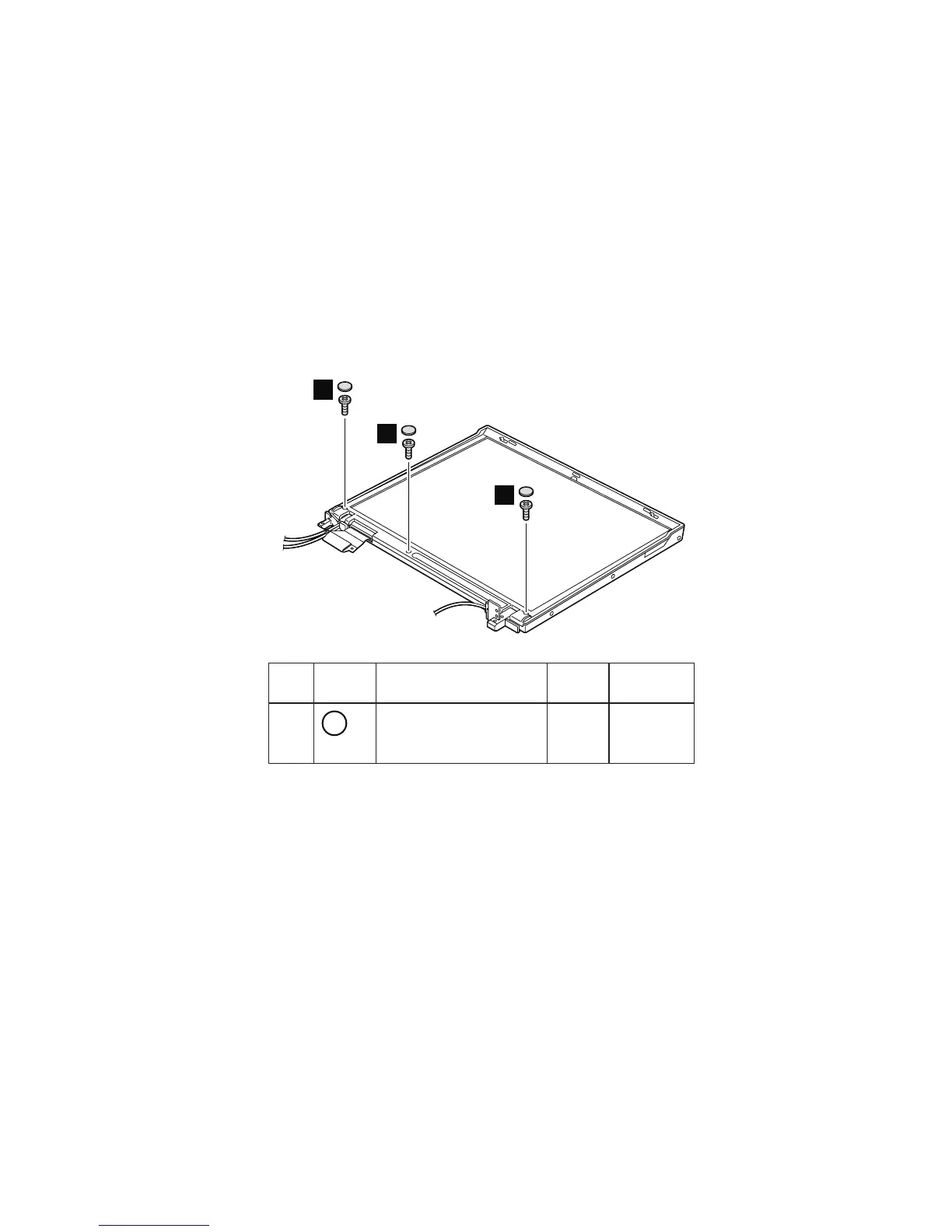

2010 LCD front bezel
For access, remove these FRUs in order:
v “1010 Battery pack” on page 67
v “1020 Ultrabay Enhanced device” on page 68
v “1030 Hard disk drive” on page 69
v “1050 Keyboard” on page 72
v “1070 Modem daughter card (MDC/MDC-2)” on page 77
v “1080 Bluetooth/Modem daughter card
(BMDC/BMDC-2)” on page 79
v “1090 Keyboard bezel” on page 81
v “1100 Mini PCI adapter” on page 85
v “1170 Ultrabay Enhanced shield kit” on page 98
v “1180 LCD assembly” on page 105
1
1
1
Step Screw
cap
Screw (quantity) Color Torque
1
M2.5 × 4.8 mm,
bind-head, nylon-coated
(3)
Black 0.392 Nm
(4
kgfcm)
(continued)
Removing and replacing a FRU
ThinkPad R50/R50p and R51 Series 119
