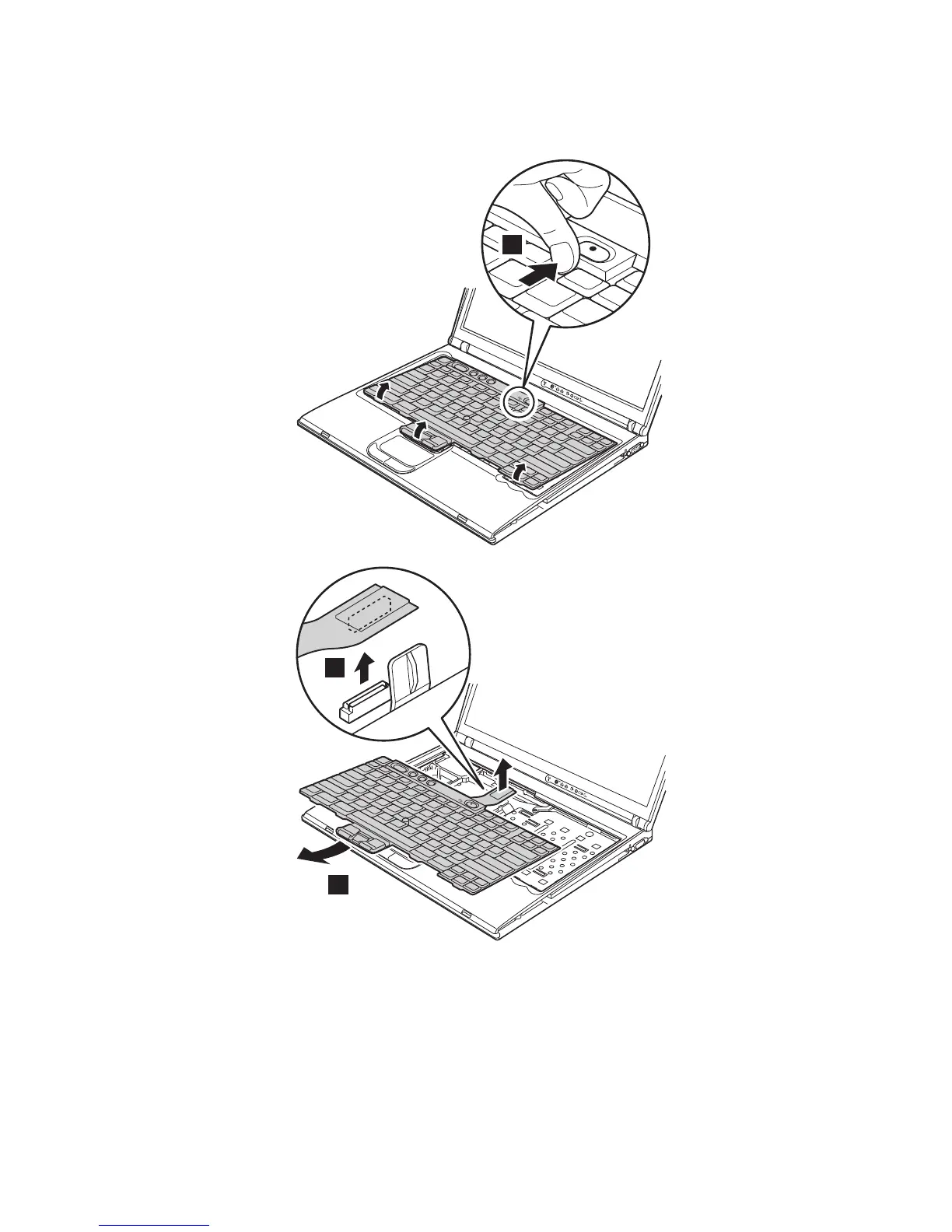

Press
the
part
indicated
by
the
arrow
2
in
the
direction
of
the
arrow
.
This
releases
the
latches
of
the
keyboard
from
the
frame,
so
that
the
front
side
of
the
keyboard
pops
out.
2
3
4
When
installing:
Make
sure
that
the
connector
4
is
firmly
attached.
Removing
and
replacing
a
FRU
ThinkPad
R50/R50p
and
R51
Series
73
76
78
