Step Screw (quantity) Color Torque
1
M2 × 6 mm, flat-head, nylon-coated (4)
Black 0.196 Nm
(2.0 kgf-cm)
2
M2 × 4 mm, flat-head, nylon-coated (2) Black 0.196 Nm
(2.0 kgf-cm)

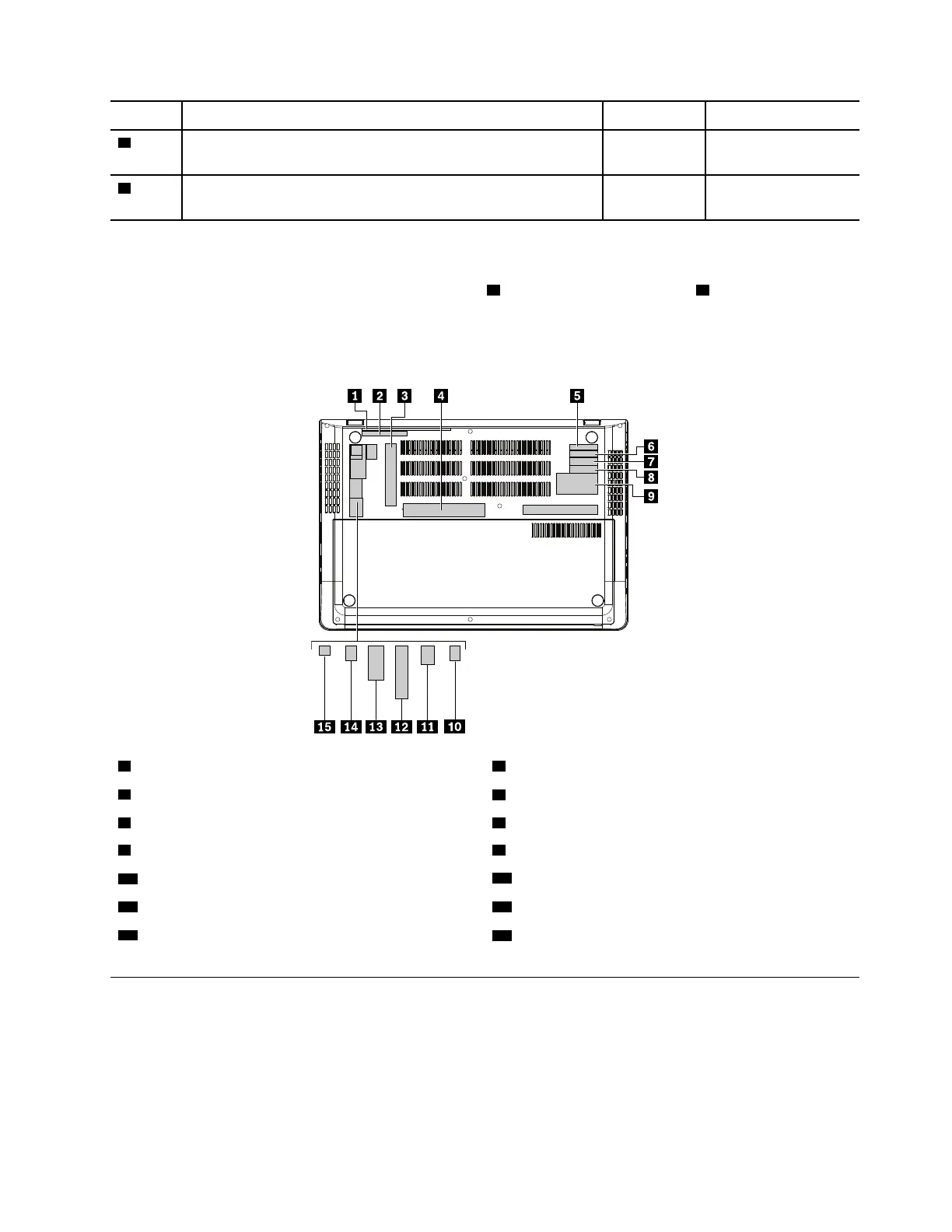

The following illustration shows the location of each label for Windows 10 based computer models.
When you replace the base cover, apply the FCC label
1 and the Serial number label 8 . If the removed cover
has two FCC labels, apply both to the new base cover.
For the labels listed in the following table, peel them off from the old base cover, and adhere them to the new
base cover.
2 Information label under BAT 3 Wireless LBL for special bid
4 System silk print label 5 MTM S/N Label
6 China model label/CECP label 7 GEO label
8 KC safety label
9 Asset tag
10 ICASA system label
11 Win 10 label
12 Indonesia rating label 13 IMEI label
14 Indonesia postel label
15 Malaysian SLP label
1070 Memory module
Removal steps of the memory modules
For models with one memory module installed:
To remove the memory module, remove these FRUs in order:
Chapter 9. Removing or replacing a FRU 71
