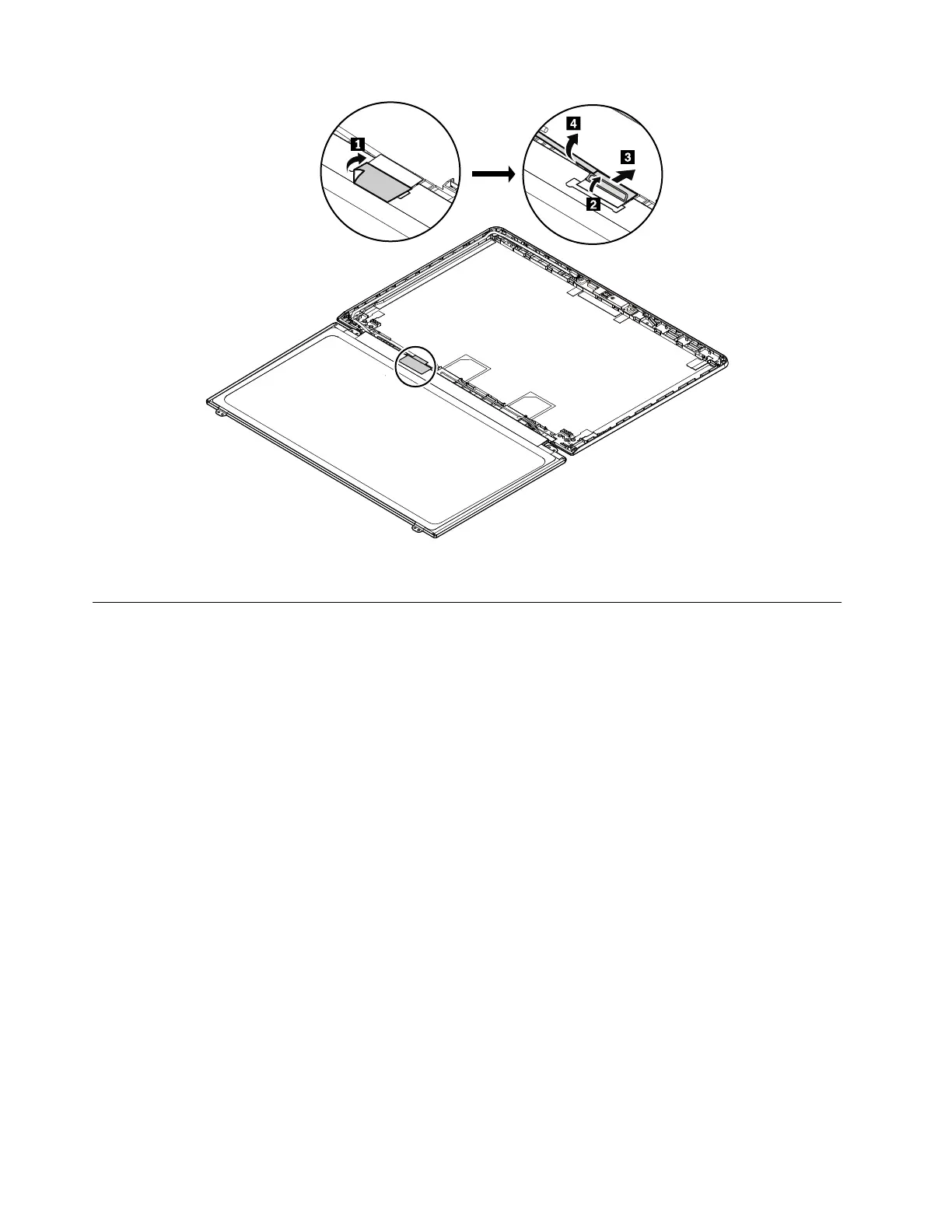

When installing: Ensure that the LCD connector is attached firmly.
2050 Wireless LAN antenna assembly
For access, remove these FRUs in order:
• “1010 Bottom cover” on page 64
• “1020 Battery” on page 65
• “1030 Hard disk drive assembly, solid-state drive assembly, hard disk drive cable, or solid-state drive
cable” on page 65
• “1050 Keyboard” on page 68
• “1060 Base cover assembly” on page 70
• “2010 LCD unit” on page 89
• “2020 LCD bezel” on page 91
• “2030 LCD hinges” on page 92
• “2040 LCD panel and LCD cable” on page 92
Removal steps of the wireless LAN antenna assembly
Release the antenna cables from the cable guides on the LCD rear cover.
94
Hardware Maintenance Manual
