When installing: Ensure that all the latches are attached firmly.
2030 LCD hinges
For access, remove these FRUs in order:
• “1010 Bottom cover” on page 64
• “1020 Battery” on page 65
• “1030 Hard disk drive assembly, solid-state drive assembly, hard disk drive cable, or solid-state drive
cable” on page 65
• “1050 Keyboard” on page 68
• “1060 Base cover assembly” on page 70
• “2010 LCD unit” on page 89
• “2020 LCD bezel” on page 91

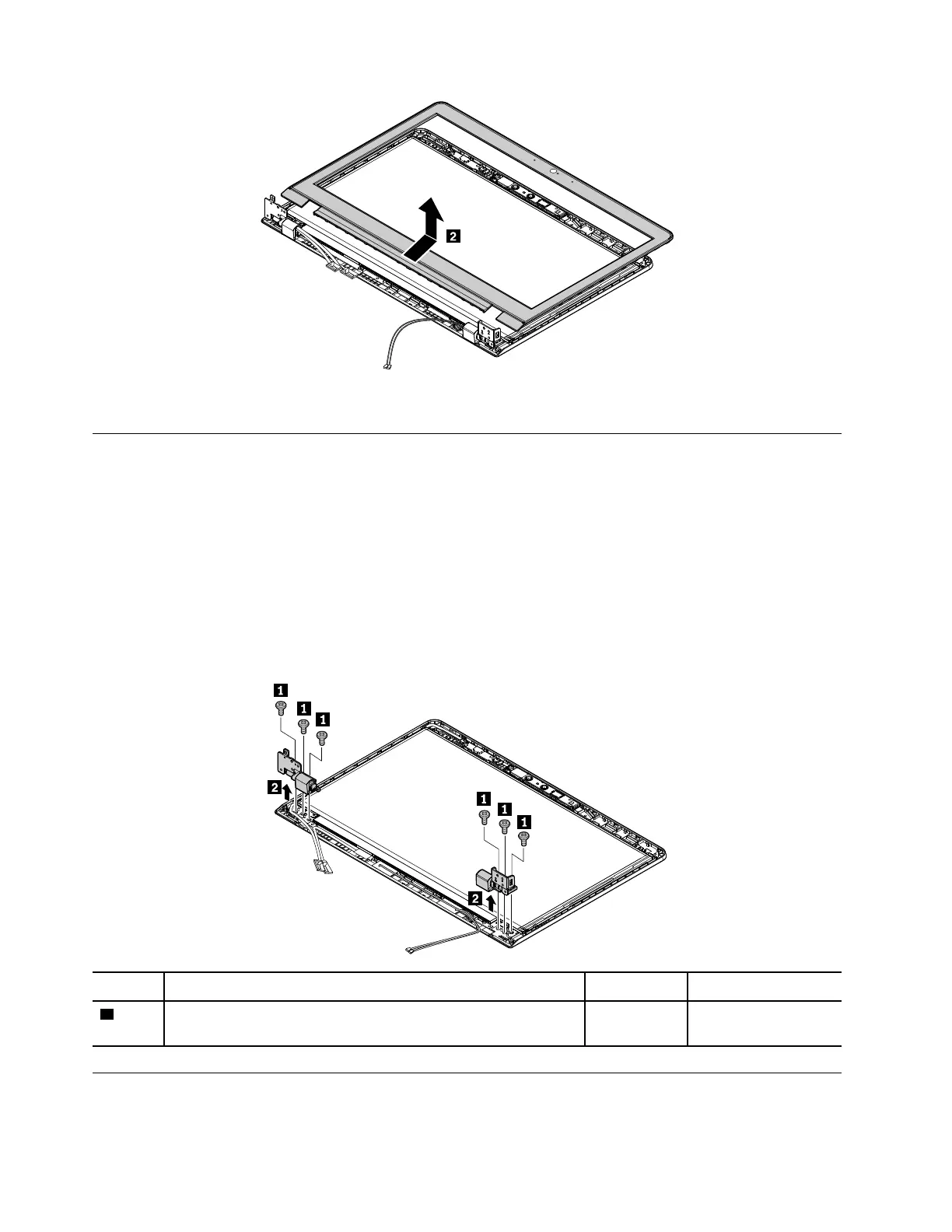

Removal steps of the LCD hinges
Step Screw (quantity) Color Torque
1
M2.5 × 3 mm, flat-head, nylon-coated (6)
Black 0.392 Nm
(4 kgf-cm)
2040 LCD panel and LCD cable
For access, remove these FRUs in order:
92
Hardware Maintenance Manual
