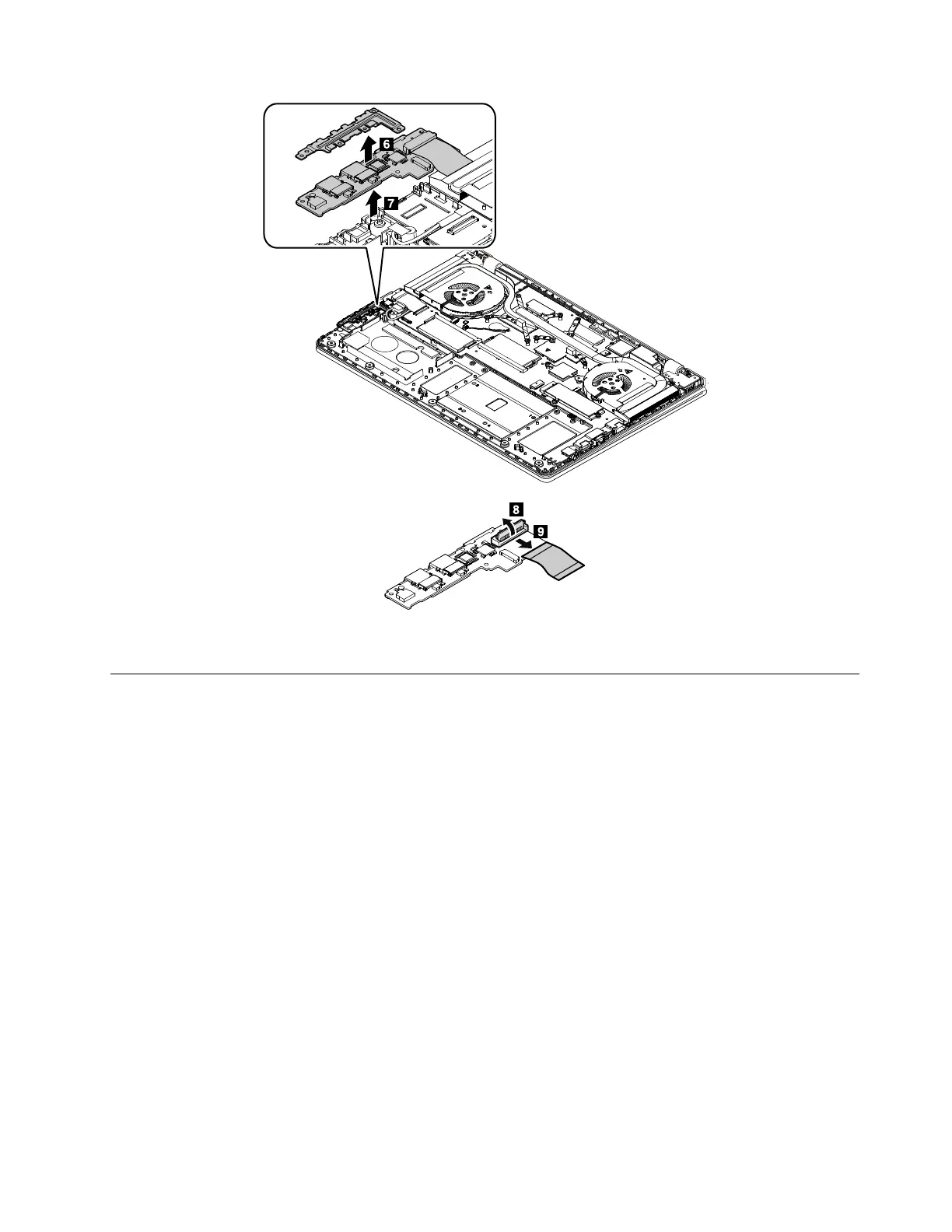

When installing: Ensure that the connector is attached firmly to the system board.
1110 ThinkPad LED card
For access, remove these FRUs in order:
• “1010 Bottom cover” on page 64
• “1020 Battery” on page 65
• “1030 Hard disk drive assembly, solid-state drive assembly, hard disk drive cable, or solid-state drive
cable” on page 65
• “1050 Keyboard” on page 68
• “1060 Base cover assembly” on page 70
Chapter 9. Removing or replacing a FRU 77
