Locations of key components and connectors
The RD450 is available either with 3.5-inch hot-swap drive bays, 3.5-inch easy-swap drive bays or 2.5-inch
hot-swap drive bays. The following figure shows the front of the server.

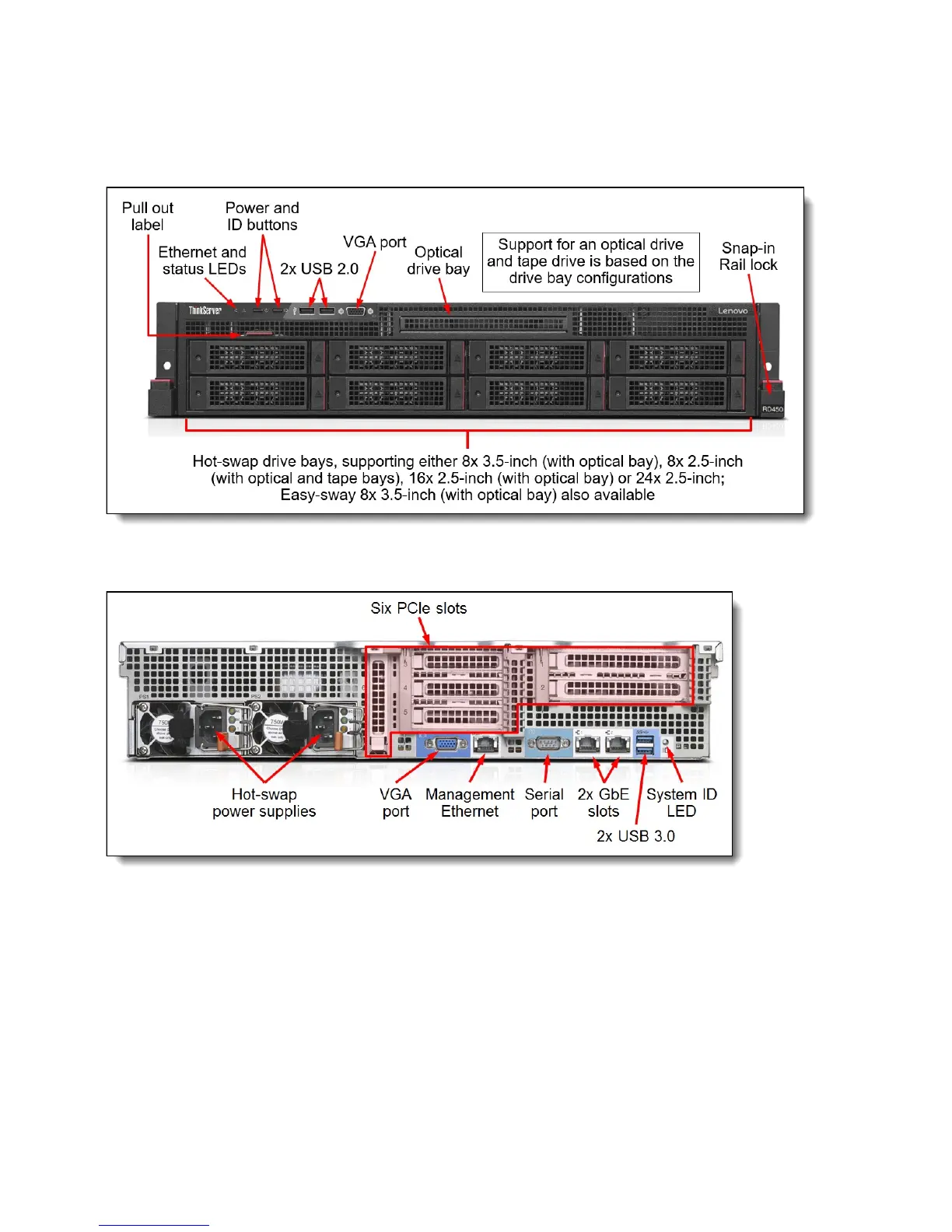

Figure 2. Front view of the ThinkServer RD450 (3.5-inch drive-bay model)
The following figure shows the rear of the RD450 server.
Figure 3. Rear view of the ThinkServer RD450
