Replacing Memory
51
9. Make sure that the memory module is firmly fixed in the slot and does
not move easily.

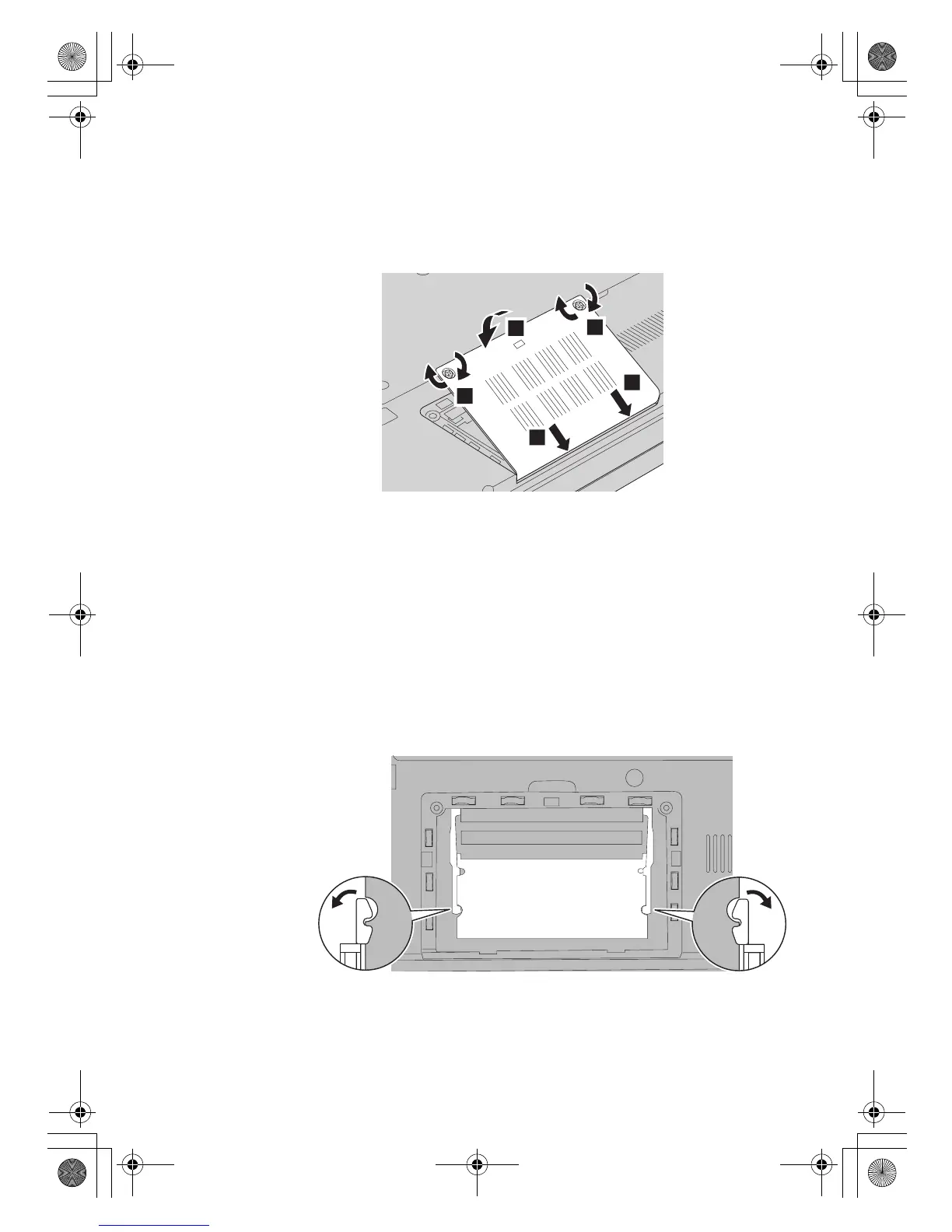

10. Reinstall the cover of the memory slot by inserting the tabs into the slots
first a, and closing the cover b. Then tighten the two screws c.
Attention: When you have added the SO-DIMM, do not use your computer
until you have closed the memory slot cover. Never use the
computer with the cover open.
11. Reinstall the battery.
12. Turn the computer over again, and reconnect the ac adapter and cables
to the computer.
If you want to replace a new SO-DIMM, remove the origin SO-DIMM by
releasing the two latches on both edges of the socket at the same time, pull
out the SO-DIMM from the socket, and then install the new SO-DIMM
follow the steps above.
Attention: If only one SO-DIMM is installed, plug it into the SO-DIMM
socket which is closer to the mainboard.
2
1
1
3
3
Lenovo EVEREST UG.book Page 51 Friday, August 17, 2007 5:40 PM
