LZV100 Command/Power Station 8
8
may be up to 1000m (3300 feet) long and can support up to 31
simultaneous input devices. XpressNet is the highest performance
communication network in the DCC industry, providing the
modeler with exceptional growth possibilities.

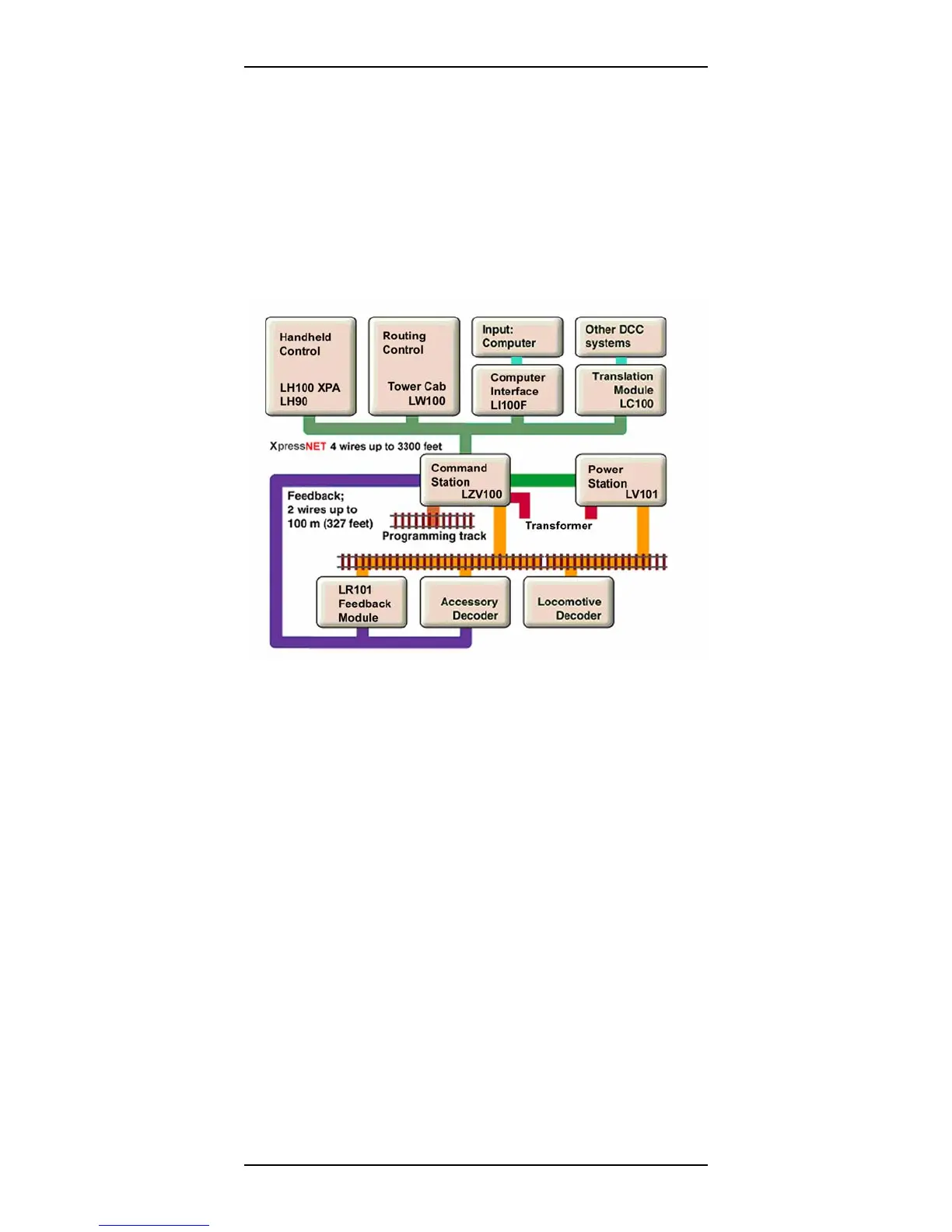

Figure 1: Digital plus system overview
• Power Station Interface bus
A two or optional three wire bus connects the command station to
as many power stations (boosters) that are needed to power the
layout. The LZV100 and all Digital plus power stations are
designed to follow the proposed NMRA Power Station Interface
RP. All Digital plus power stations are optically isolated to allow
safe connection to all forms of layout wiring including common rail
wiring.
• Feedback bus
The LZV100 provides the capability for a separate 2 wire feedback
bus to provide a connecting link between command station and
feedback capable modules. A separate bus was chosen to
provide maximum performance even in the largest of layouts.
