Lenze 712 - Expansion of the Torque Setting Range

Electrical installation
Connection plan
Expansion of the torque setting range
5

62
EDB712 DE/EN 2.1
5.3.4 Expansion of the torque setting range
As supplied the device is setup for operation without a neutral conductor. In this
case the torque setting range is approx. 1:20.
If a larger setting range is required, two measures must be taken:
ƒ Connect the neutral conductor to the motor star point
ƒ Replace the resistor on soldering terminals (position R420, fitted with
22 kΩ resistor from the factory) with a 100 kΩ resistor.
712_006

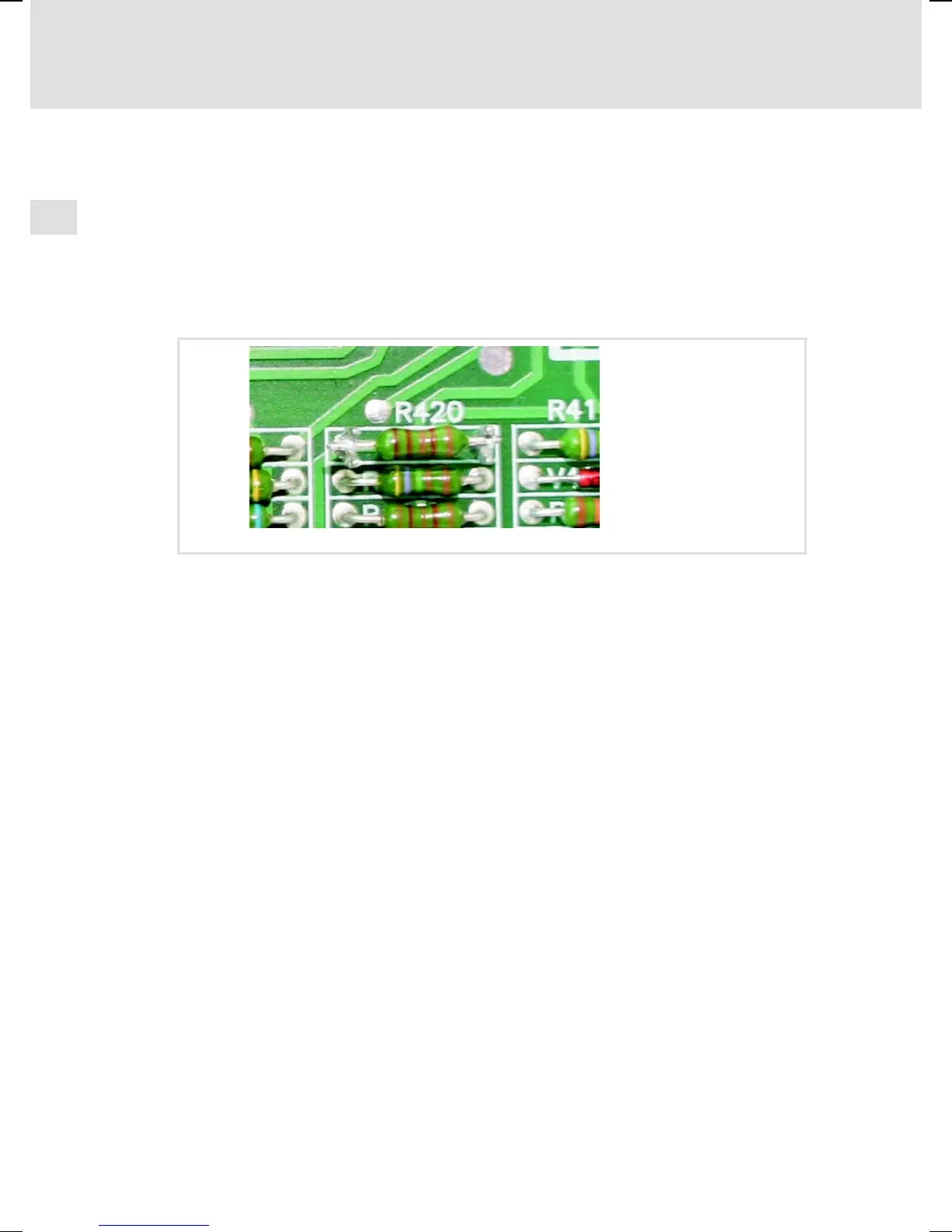

Fig. 8 Replacing the 22kΩ resistor with a 100 kΩ resistor at position R420
