Drive controller type 712 for mains connection 340 ... 460 V
5

57
EDB712 DE/EN 2.1
5.3 Connection plan
5.3.1 Drive controller type 712 for mains connection 340 ... 460 V
L2L1PE L3
M
3~
U
V
W
PE
L1 L2
L3
FF 16 A
712_002

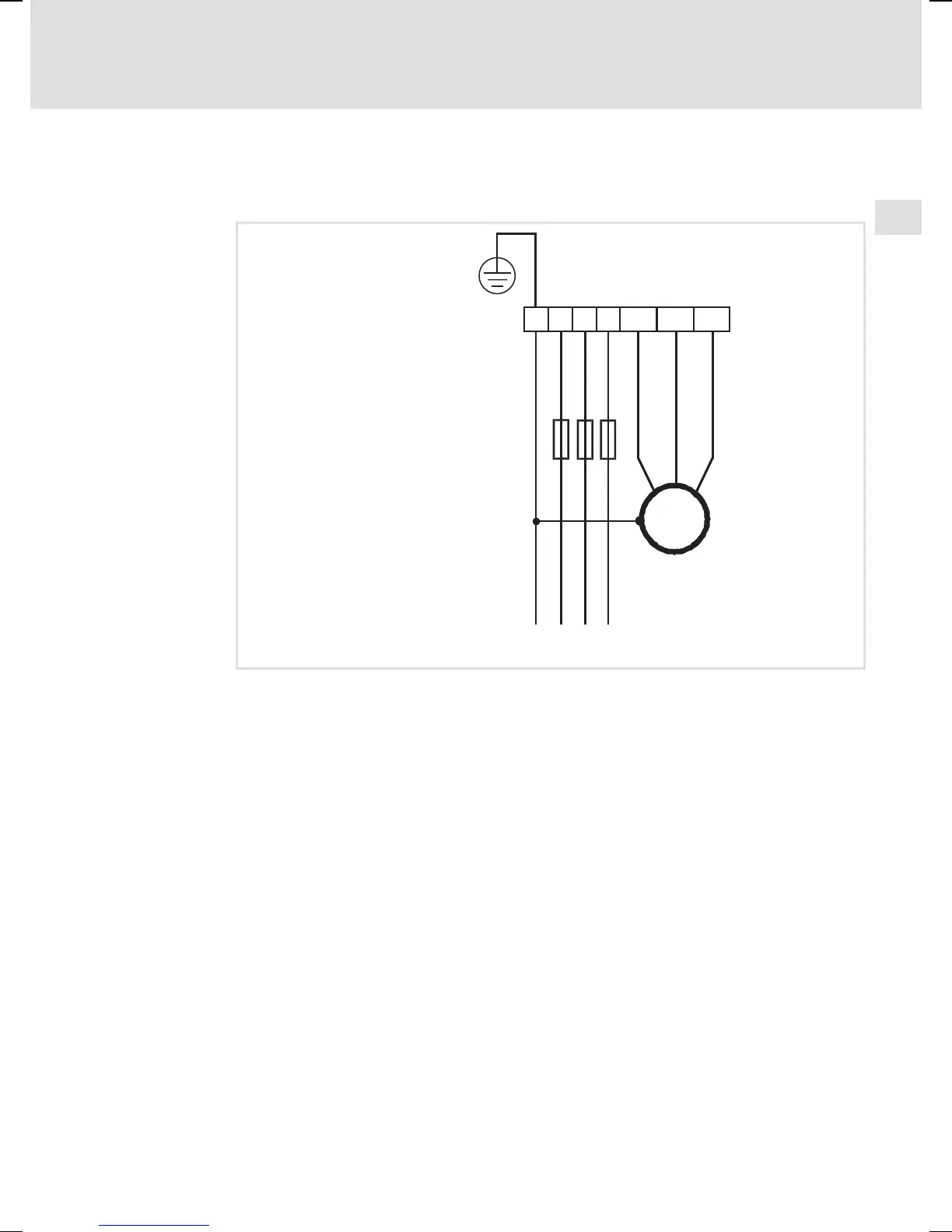

Fig. 3 Connection, drive controller 712 for mains connection 340 ... 460 V
ƒ The device is set in the factory to a mains voltage range of
340 ... 460 V ± 0%.
The device can be changed to the mains voltage range 190 ... 265 V ± 0%.
(
 P. 26)
