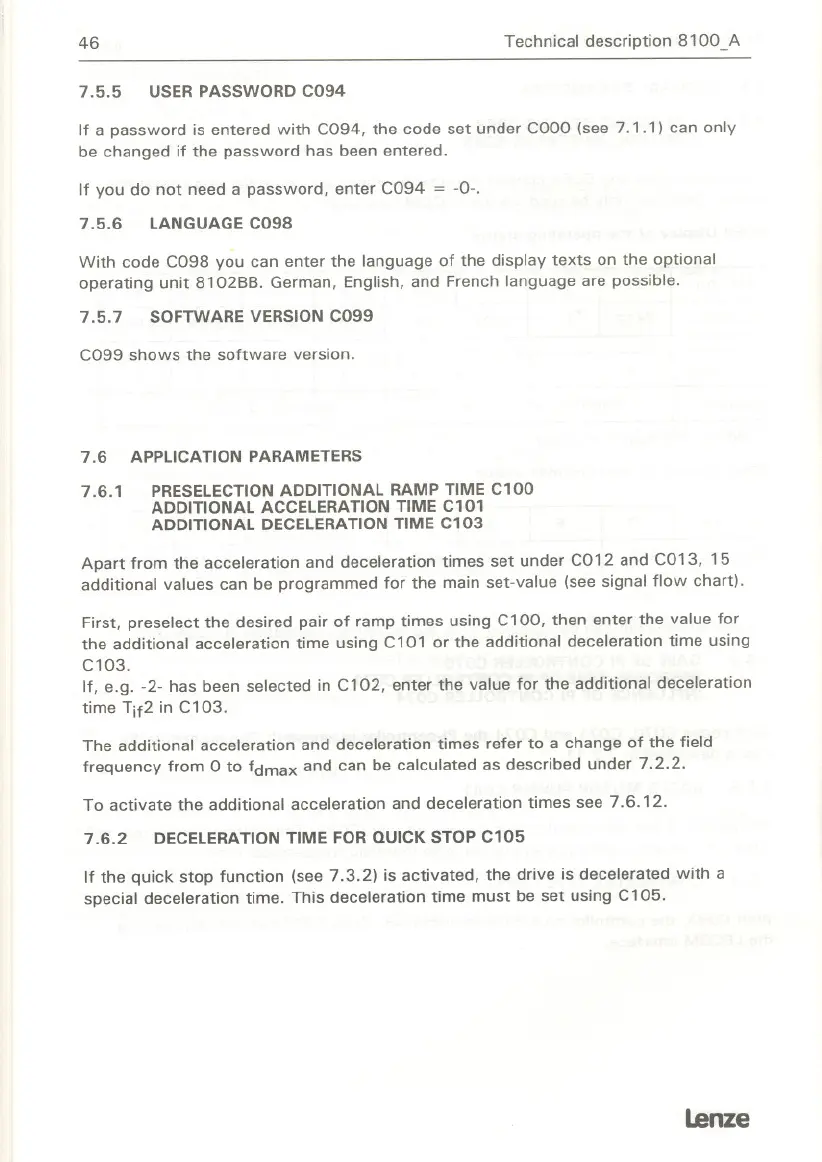

46 Technical description 8100_ A
7.5.5 USER PASSWORD C094
If a password is entered with C094, the code set under COOO(see 7.1.11 can only
be changed if the password has been entered.
If you do not need a password, enter C094 = -0-.
7.5.6 LANGUAGEC09S
With code C098 you can enter the language of the display texts on the option al
operating unit 810288. German, English, and French language are possible.
7.5.7 SOFTWAREVERSIONC099
C099 shows the software version.
7.6 APPLlCATION PARAMETERS
7.6.1 PRESELECTION ADDITIONAL RAMP TIME C100
ADDITIONAL ACCELERATION TIME C101
ADDITIONAL DECELERATION TIME C103
Apart from the acceleration and deceleration times set under C012 and C013, 15
additionalvalues can be programmedfor the main set-value (seesignal flow chartl.
First, preselect the desired pair of ramp times using C100, then enter the value for
the additional acceleration time using C101 or the additional deceleration time using
C103.
If, e.g. -2- has been selected in C102, enter the value for the additional deceleration
time Tif2 in C103.
The additional acceleration and deceleration times refer to a change of the field
frequency from 0 to fdmax and can be calculated as described under 7.2.2.
To activate the additional acceleration and deceleration times see
7.6.12.
7.6.2 DECELERATIONTIME FORQUICKSTOPC105
If the quick stop function (see 7.3.21 is activated, the drive is decelerated with a
special deceleration time. This deceleration time must be set using C105.
lenze
