Lenze 9400

3 Product description
3.4 Terminals and interfaces
14
Lenze · E94AYCIB communication module (INTERBUS) · Communication Manual · DMS 4.0 EN · 02/2014 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.4 Terminals and interfaces

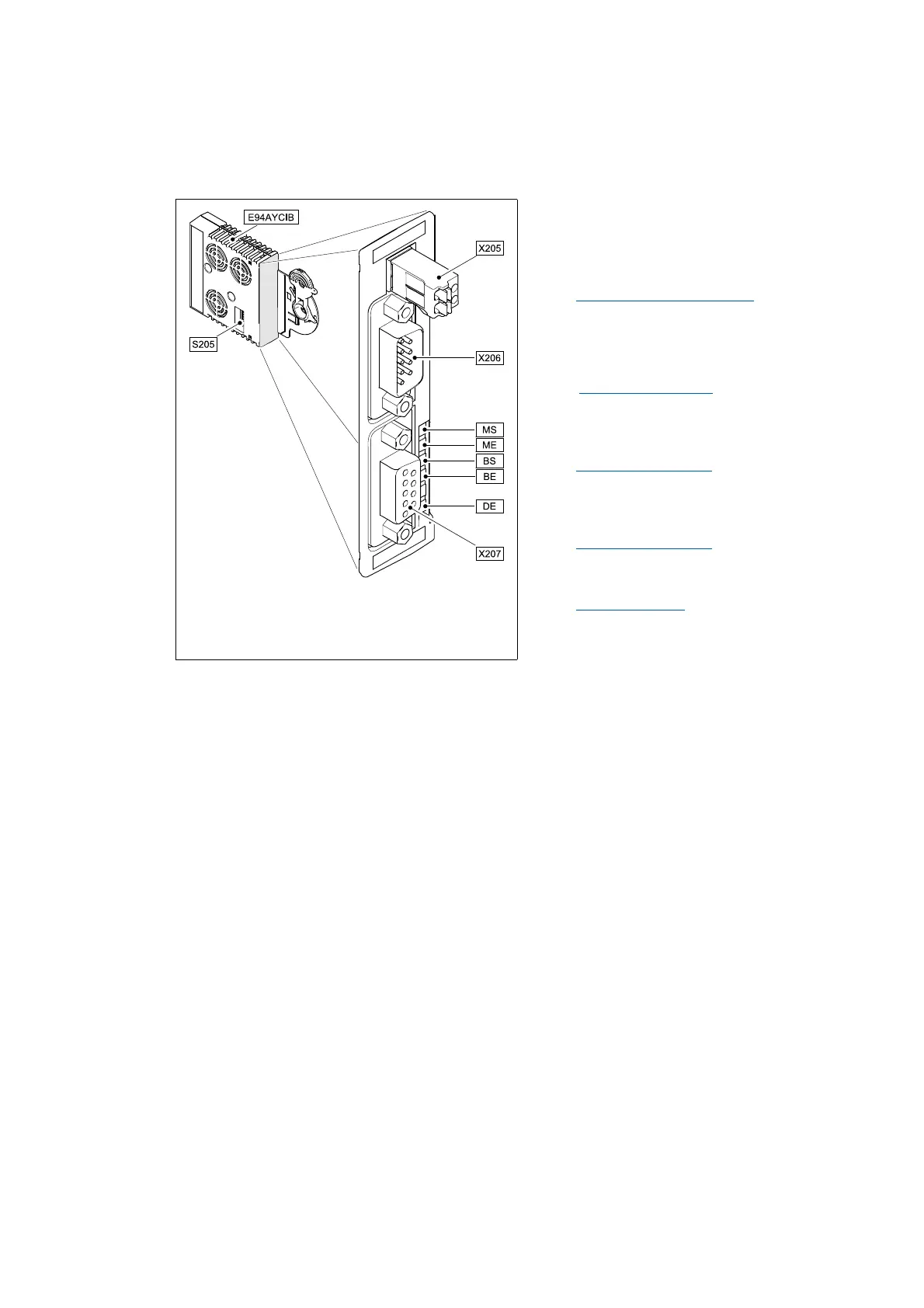

[3-2] E94AYCIB communication module (INTERBUS)
E94YCIB001B
S205 DIP switches for setting the ...
• Number of process data words and
parameter data words
•Baud rate
Possible settings via DIP switch
( 30)
X205 External voltage supply of the communication
module
• 2-pin plug connector with spring connection
External voltage supply
( 28)
X206 INTERBUS connection, input (IN)
• 9-pole Sub-D plug
Wiring of the INTERBUS
( 24)
X207 INTERBUS connection, output (OUT)
• 9-pin Sub-D socket
Wiring of the INTERBUS
( 24)
MS
ME
BS
BE
DE
LED status displays for diagnostic purposes
LED status displays
( 47)
