Lenze AC Tech ESV113N04TXD - NEMA 1 (IP31) Models > 30 HP (22 Kw)

12
SV01M
Installation

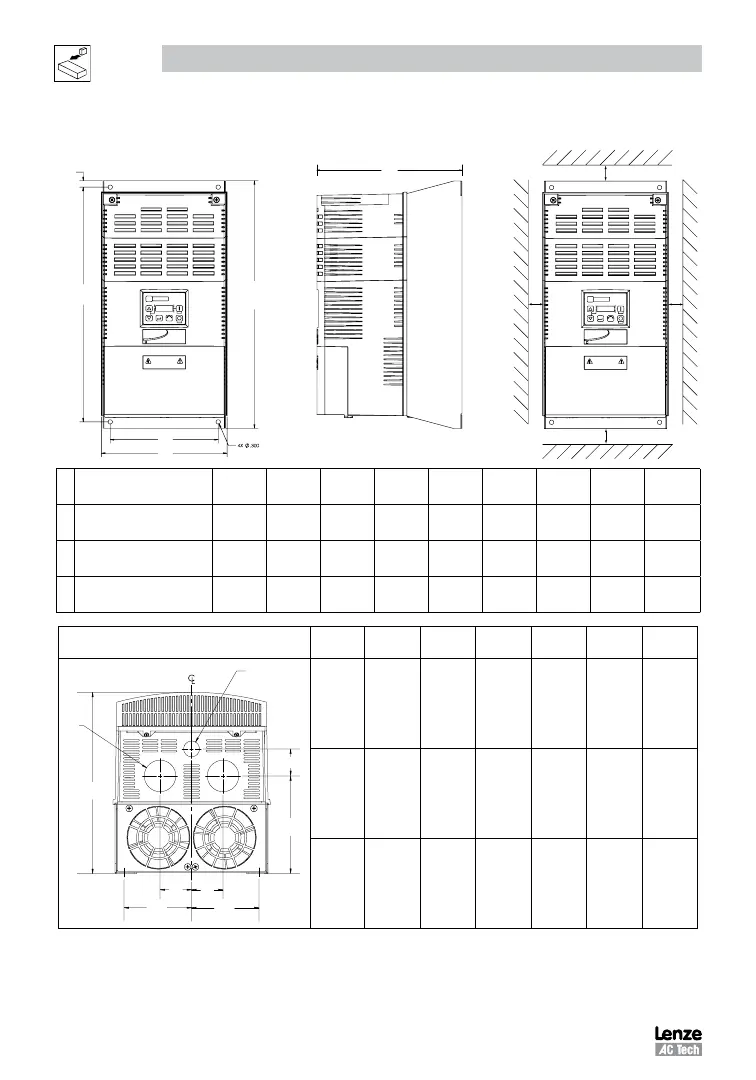

3.1.2 NEMA 1 (IP31) Models > 30HP (22kW)
c
s1
s2
s2
s1
b
a
a1
b1
b2
SMV
SMV
Type
a
in (mm)
a1
in (mm)
b
in (mm)
b1
in (mm)
b2
in (mm)
c
in (mm)
s1
in (mm)
s2
in (mm)
m
lb (kg)
K1
ESV303~~4~~B;
ESV303~~6~~B
8.72 (221) 7.50 (190) 14.19 (360) 13.30 (338) 0.45 (11.4) 10.07 (256) 0.6 (15) 2.0 (50) 24 (10.9)
K2
ESV373~~4~~B;
ESV373~~6~~B
8.72 (221) 7.50 (190) 17.19 (436) 16.30 (414) 0.45 (11.4) 10.07 (256) 0.6 (15) 2.0 (50) 31 (14.1)
K3
ESV453~~4~~B
ESV453~~6~~b
8.72 (221) 7.50 (190) 20.19 (513) 19.30 (490) 0.45 (11.4) 10.07 (256) 0.6 (15) 2.0 (50) 35 (15.9)
Conduit Hole Dimensions Type
N
in (mm)
P
in (mm)
P1
in (mm)
Q
in (mm)
S
in (mm)
S1
in (mm)
P1
P
S1
S
C
Q
N
Q
N
K1 3.75 (95) 5.42 (137) 1.50 (38.1) 1.75 (44.4) 1.75 (44.4) 0.875 (22.2)
K2 3.75 (95) 5.42 (137) 1.50 (38.1) 1.75 (44.4) 1.75 (44.4) 0.875 (22.2)
K3 3.75 (95) 5.42 (137) 1.50 (38.1) 1.75 (44.4) 1.75 (44.4) 0.875 (22.2)
