Technical data
Power terminals
4

44
EDS84DG752 EN 5.0

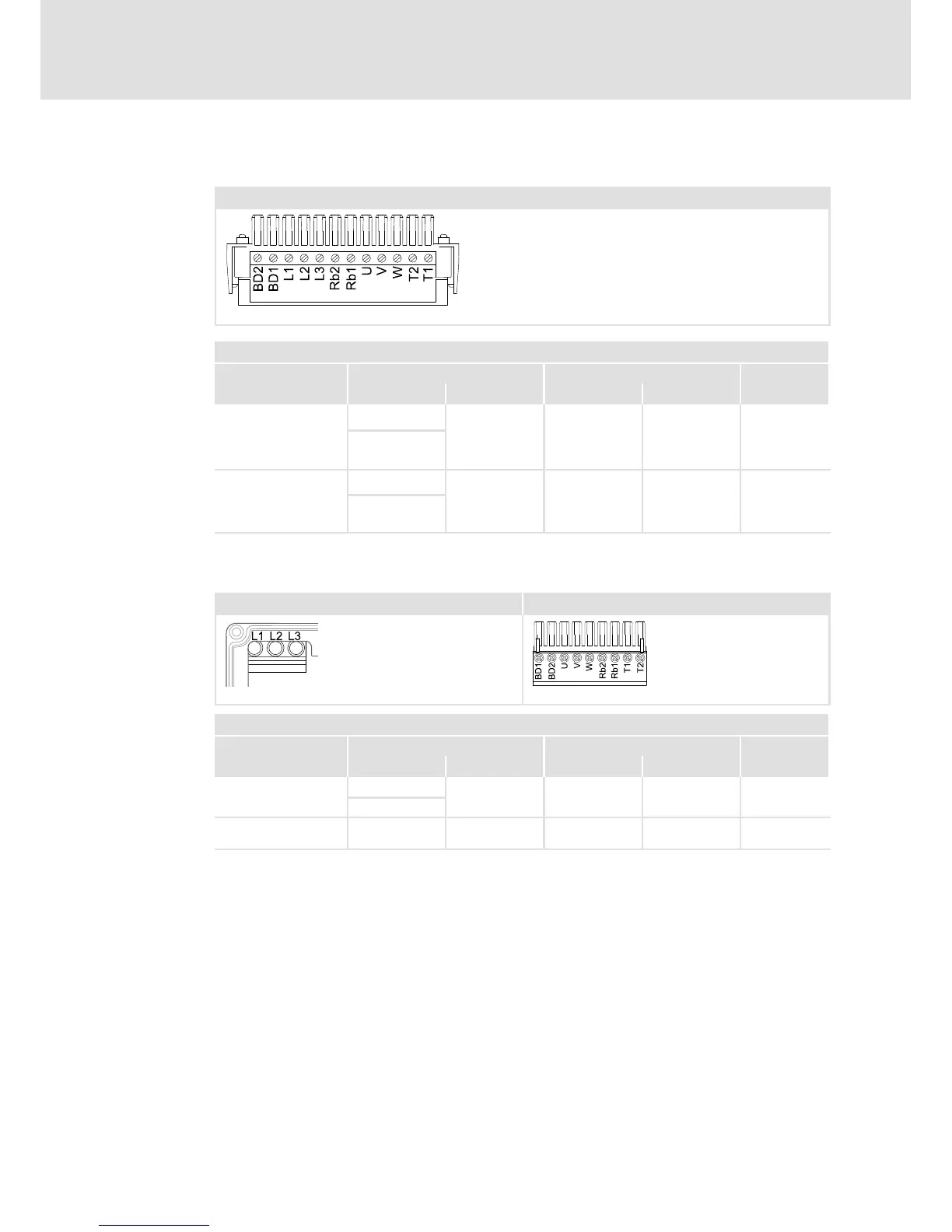

4.6 Power terminals
0.37 ... 3 kW - X1
E84DG032
Terminal data
Conductor cross-section Tightening torque

[mm
2
] [AWG] [Nm] [lb-in]
X1
E84DGDVB3714
...
E84DGDVB1524
1 ... 4
18 ... 10 0.5 4.4 3.5 x 0.6
2x0.5...2x2.5
1)
X1
E84DGDVB2224
...
E84DGDVB3024
1 ... 6
18 ... 8 0.8 7.0 3.5 x 0.6
2x0.5...2x2.5
1)
1)
For looping-through connections (daisy chain) => two conductors with TWIN wire end ferrule
4 ... 7.5 kW - X1 4 ... 7.5 kW - X2
E84DG086 a E84DG086 b
Terminal data
Conductor cross-section Tightening torque

[mm
2
] [AWG] [Nm] [lb-in]
X1
1 ... 16
18 ... 6 1.4 12
PZ 2
5.5 x 1.0
2x1...2x6
1)
X2
1 ... 6 18 ... 8 0.8 7
PH 1
3.5 x 0.6
1)
For looping-through connections (daisy chain) => two conductors with TWIN wire end ferrule
