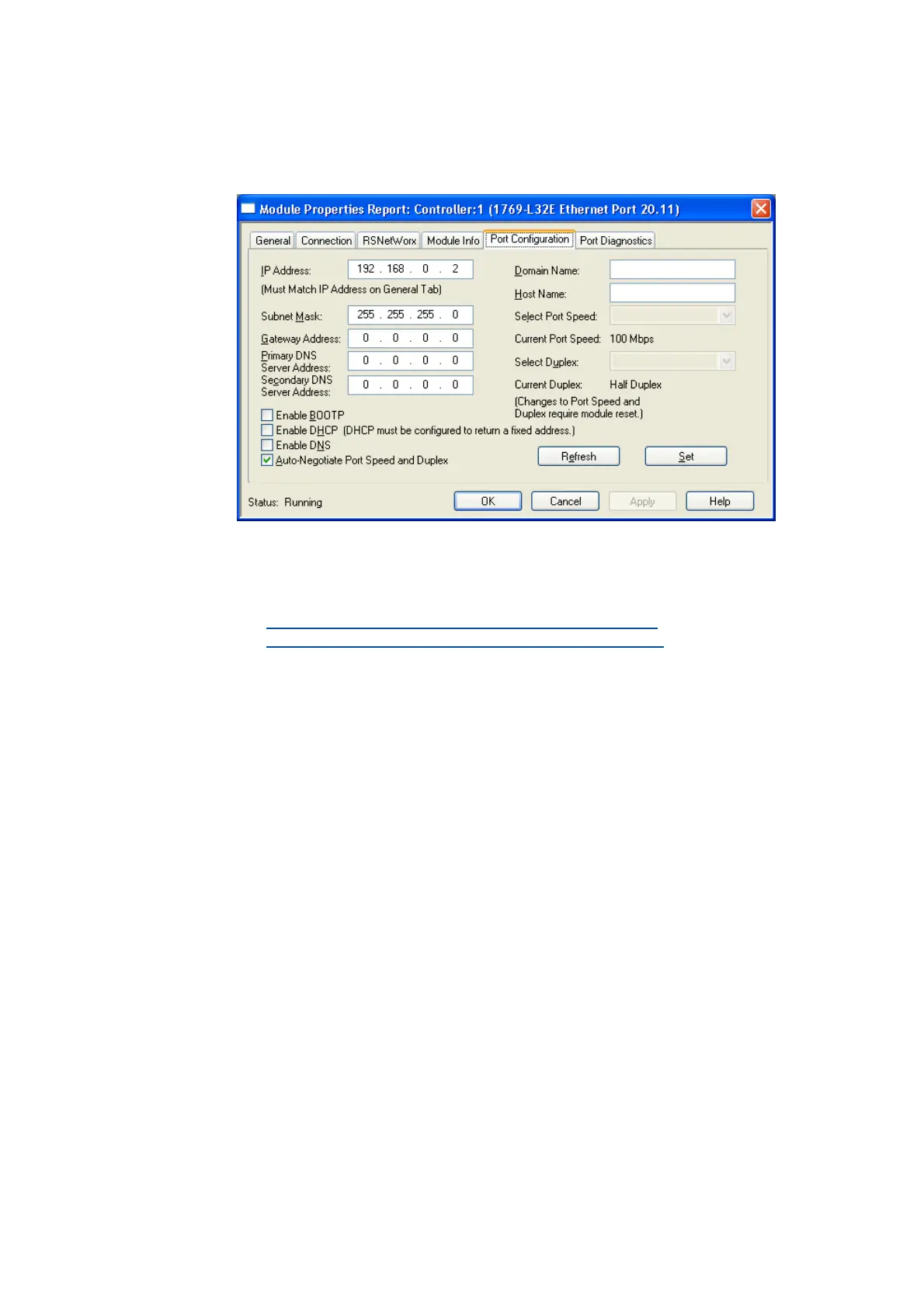

5. Go to the Port Configuration tab and enter the IP configuration, BOOTP setting, Ethernet
baud rate and duplex mode.
6. Then click OK.
• Now, the scanner is configured for the EtherNet/IP network.
• Here you will find information on project planning with the »RSLogix 5000«
programming software from Rockwell:
I/O configuration with »RSLogix 5000« version 19 or lower
( 58)
I/O configuration with »RSLogix 5000« version 20 or higher ( 63)
