8.5 I/O configuration in the »Engineer«
8.5.1 Lenze technology application / configuring user-definable parameter sets

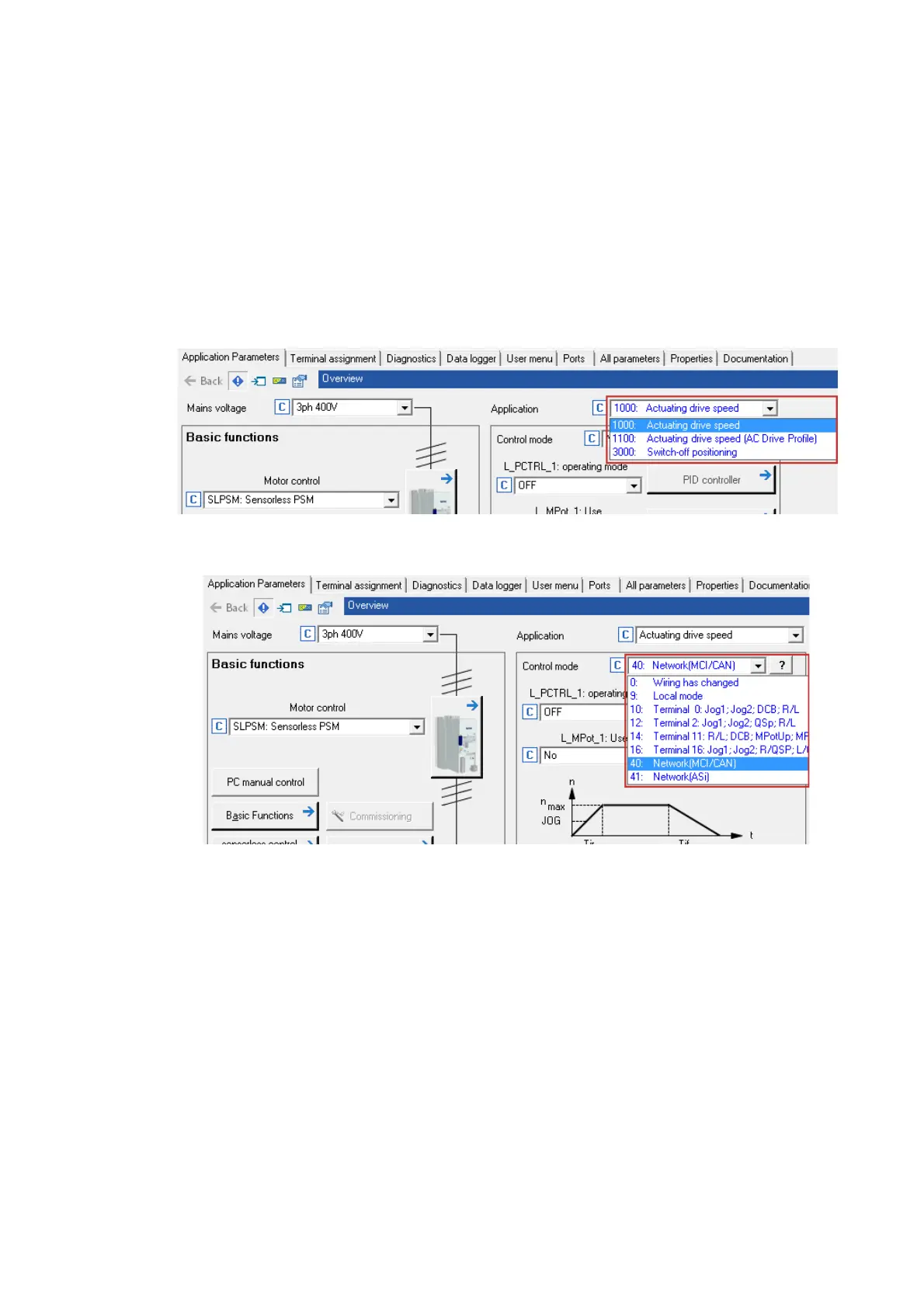

 How to configure the Lenze technology applications / user-definable parameter sets in the
»Engineer«:
1. Select the application (C00005 = 1000) in the Application Parameters tab.
In the example, the "speed actuating drive" application is configured.
2. Make the default setting of the I/O configuration.
Select "MCI" control mode (C00007 = 40).
