Installation
821XKlimaBA0399 4-11
4.2.2.3 Connection diagram
L1
U
V
W
+UG
-UG
M
3~
PE
RB1
RB2
+UG
-UG
K10
K10
RB
L3
N
PE
8211 ... 8218
L1
L2
L2
L3
K10
F1 F2 F3
Z1
-X1
PE
PE
PE
PE
PE
PE
Z2
Z3
ϑ
RB
K35.0076
F1-F3 Fuses
K1 Mains contactor
Z1 Mains filter/mains
choke, see Accessories
Z2 Motor filter/sine filter,
see Accessories
Z3 Brake chopper/brake
module, see
Accessories
RB Brake resistor, see
Accessories
J
RB
Temperature monitoring
- brake resistor
X1 Terminal strip in control
cabinet
8214/8218 operation only with
assigned mains choke/mains
filter

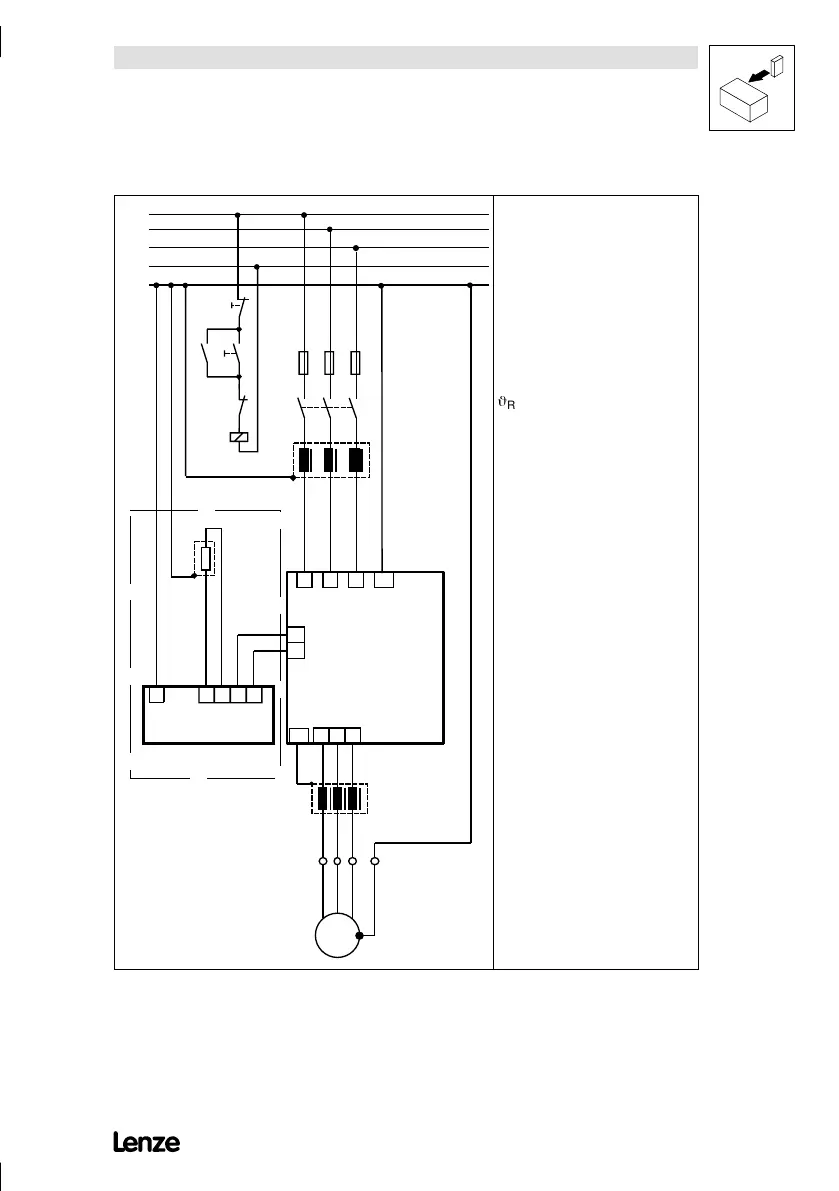

FIG 4-5 821X power connections
