Lenze EVF8212-EV020 - Standard Assembly with Fixing Rails or Fixing Angles; Types 8211 to 8214

Installation
821XKlimaBA0399 4-3
4.1.2 Standard assembly with fixing rails or fixing
angles
4.1.2.1 Types 8211 to 8214
K35.0074
g
Typ Id.-NR Fert.-Nr Serien -N r. Eingang1 Eingang2
Lenze
Postfach10135 2,31763 H AMEL N
c
k
a
e
db
1)
2)
3)

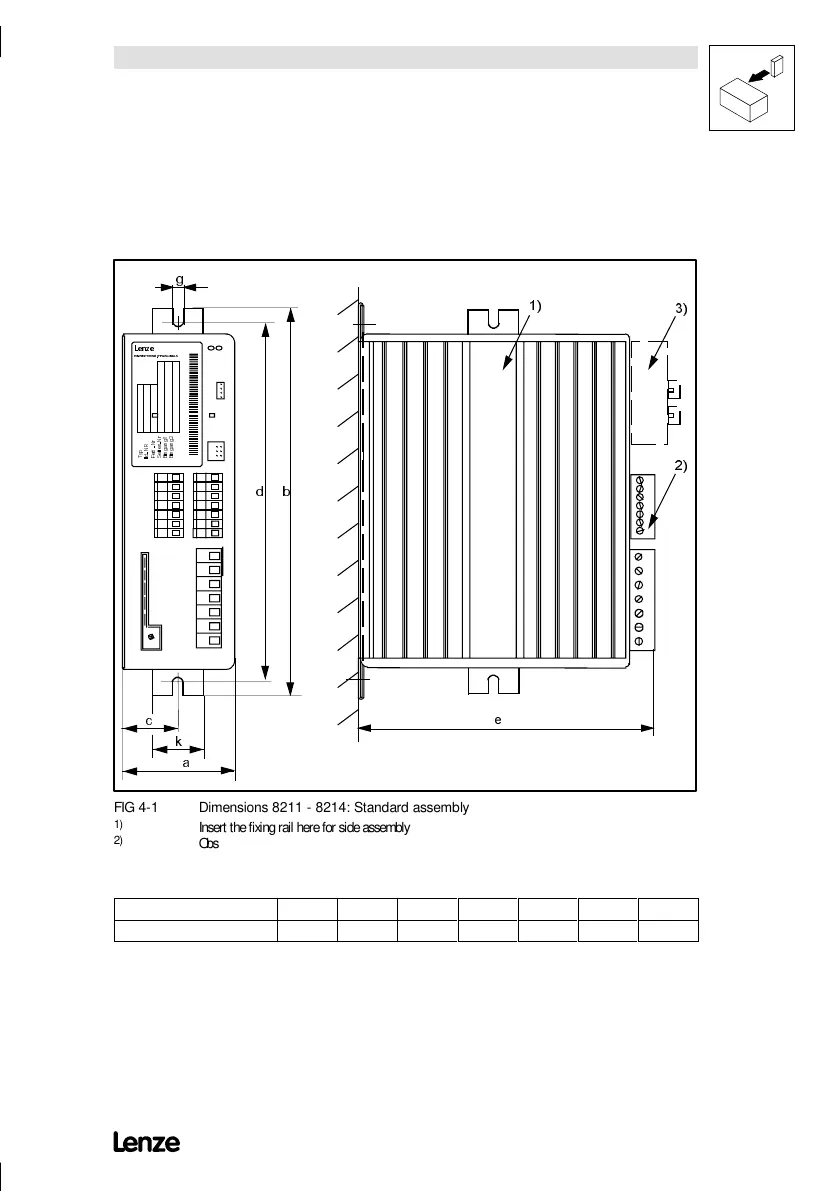

FIG 4-1 Dimensions 8211 - 8214: Standard assembly
1)
Insert the fixing rail here for side assembly
2)
Observe the free space required for the connection cables
3)
With attachable fieldbus or I/O module:
Observe assembly depth and assembly space required for connection cables
[mm]
a b c d e
3)
g k
8211 / 8212 / 8213 / 8214 83 283 38 263 211 6.5 30
