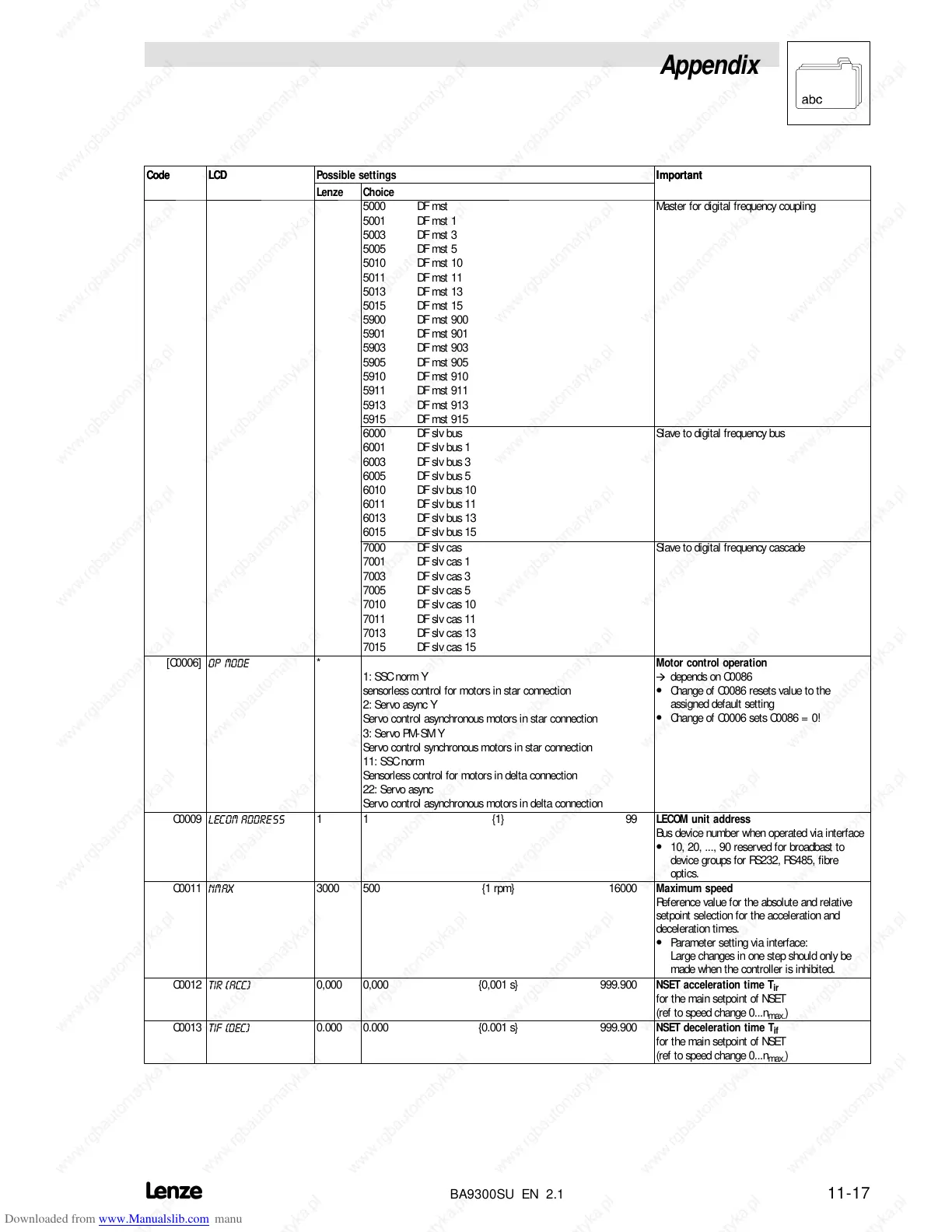

Appendix
11-17
 BA9300SU EN 2.1
Code ImportantPossible settingsLCDCode Important
ChoiceLenze
LCD
5000 DF mst
5001 DF mst 1
5003 DF mst 3
5005 DF mst 5
5010 DF mst 10
5011 DF mst 11
5013 DF mst 13
5015 DF mst 15
5900 DF mst 900
5901 DF mst 901
5903 DF mst 903
5905 DF mst 905
5910 DF mst 910
5911 DF mst 911
5913 DF mst 913
5915 DF mst 915
Master for digital frequency coupling
6000 DF slv bus
6001 DF slv bus 1
6003 DF slv bus 3
6005 DF slv bus 5
6010 DF slv bus 10
6011 DF slv bus 11
6013 DF slv bus 13
6015 DF slv bus 15
Slave to digital frequency bus
7000 DF slv cas
7001 DF slv cas 1
7003 DF slv cas 3
7005 DF slv cas 5
7010 DF slv cas 10
7011 DF slv cas 11
7013 DF slv cas 13
7015 DF slv cas 15
Slave to digital frequency cascade
[C0006]
23 02'(
*
1: SSC norm Y
sensorless control for motors in star connection
2: Servo async Y
Servo control asynchronous motors in star connection
3: Servo PM-SM Y
Servo control synchronous motors in star connection
11: SSC norm
Sensorless control for motors in delta connection
22: Servo async
Servo control asynchronous motors in delta connection
Motor control operation
Å depends on C0086
• Change of C0086 resets value to the
assigned default setting
• Change of C0006 sets C0086 = 0!
C0009
/(&20 $''5(66
1 1 {1} 99 LECOM unit address
Bus device number when operated via interface
• 10, 20, ..., 90 reserved for broadbast to
device groups for RS232, RS485, fibre
optics.
C0011
1NDV
3000 500 {1 rpm} 16000 Maximum speed
Reference value for the absolute and relative
setpoint selection for the acceleration and
deceleration times.
• Parameter setting via interface:
Large changes in one step should only be
made when the controller is inhibited.
C0012
7,5 $&&
0,000 0,000 {0,001 s} 999.900 NSET acceleration time T
ir
for the main setpoint of NSET
(ref to speed change 0...n
max.
)
C0013
7,) '(&
0.000 0.000 {0.001 s} 999.900 NSET deceleration time T
if
for the main setpoint of NSET
(ref to speed change 0...n
max.
)
