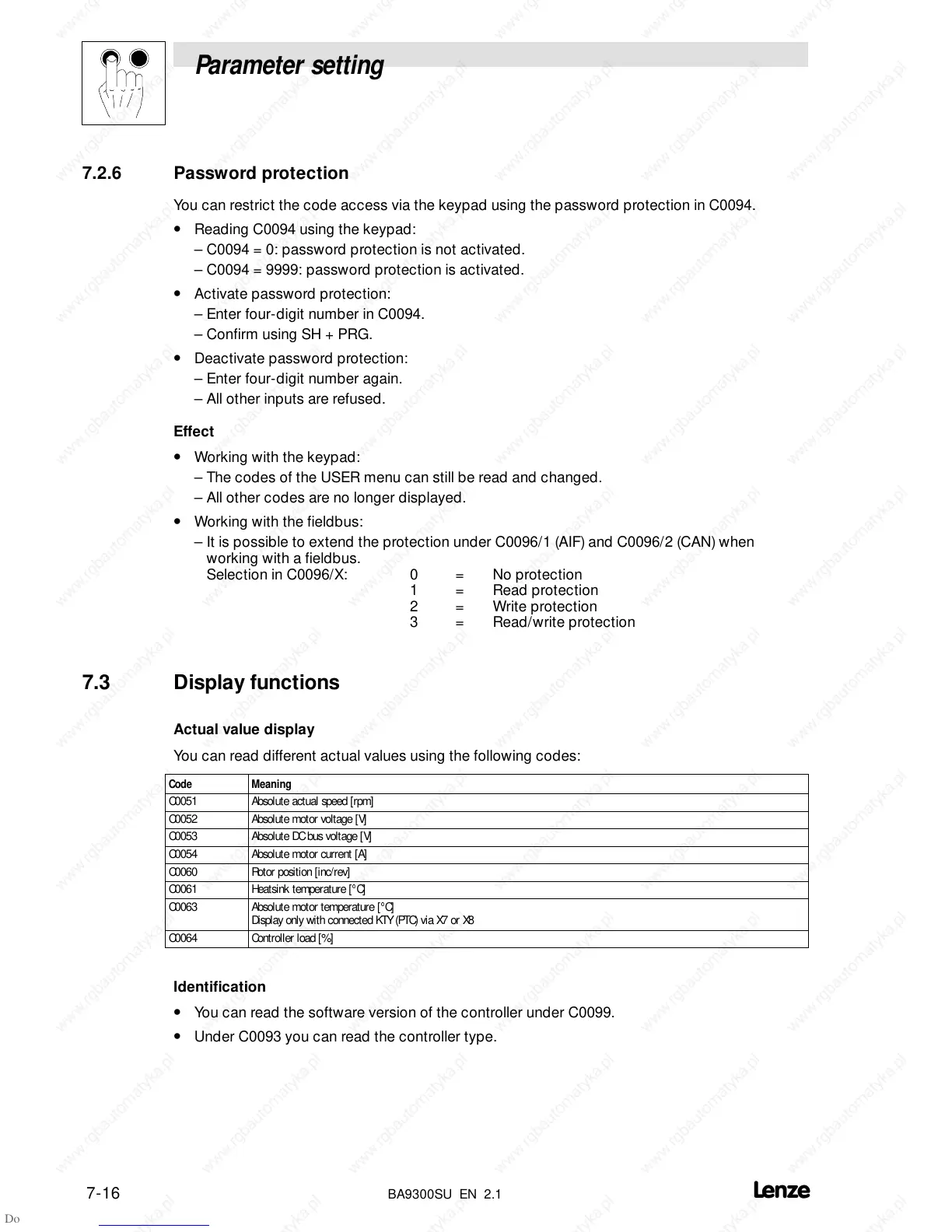

Parameter setting
7-16
BA9300SU EN 2.1
7.2.6 Password protection
You can restrict the code access via the keypad using the password protection in C0094.
• Reading C0094 using the keypad:
– C0094 = 0: password protection is not activated.
– C0094 = 9999: password protection is activated.
• Activate password protection:
– Enter four-digit number in C0094.
– Confirm using SH + PRG.
• Deactivate password protection:
– Enter four-digit number again.
– All other inputs are refused.
Effect
• Working with the keypad:
– The codes of the USER menu can still be read and changed.
– All other codes are no longer displayed.
• Working with the fieldbus:
– It is possible to extend the protection under C0096/1 (AIF) and C0096/2 (CAN) when
working with a fieldbus.
Selection in C0096/X: 0 = No protection
1 = Read protection
2 = Write protection
3 = Read/write protection
7.3 Display functions
Actual value display
You can read different actual values using the following codes:
Code Meaning
C0051 Absolute actual speed [rpm]
C0052 Absolute motor voltage [V]
C0053 Absolute DC bus voltage [V]
C0054 Absolute motor current [A]
C0060 Rotor position [inc/rev]
C0061 Heatsink temperature [
C]
C0063 Absolute motor temperature [
C]
Display only with connected KTY (PTC) via X7 or X8
C0064 Controller load [%]
Identification
• You can read the software version of the controller under C0099.
• Under C0093 you can read the controller type.
