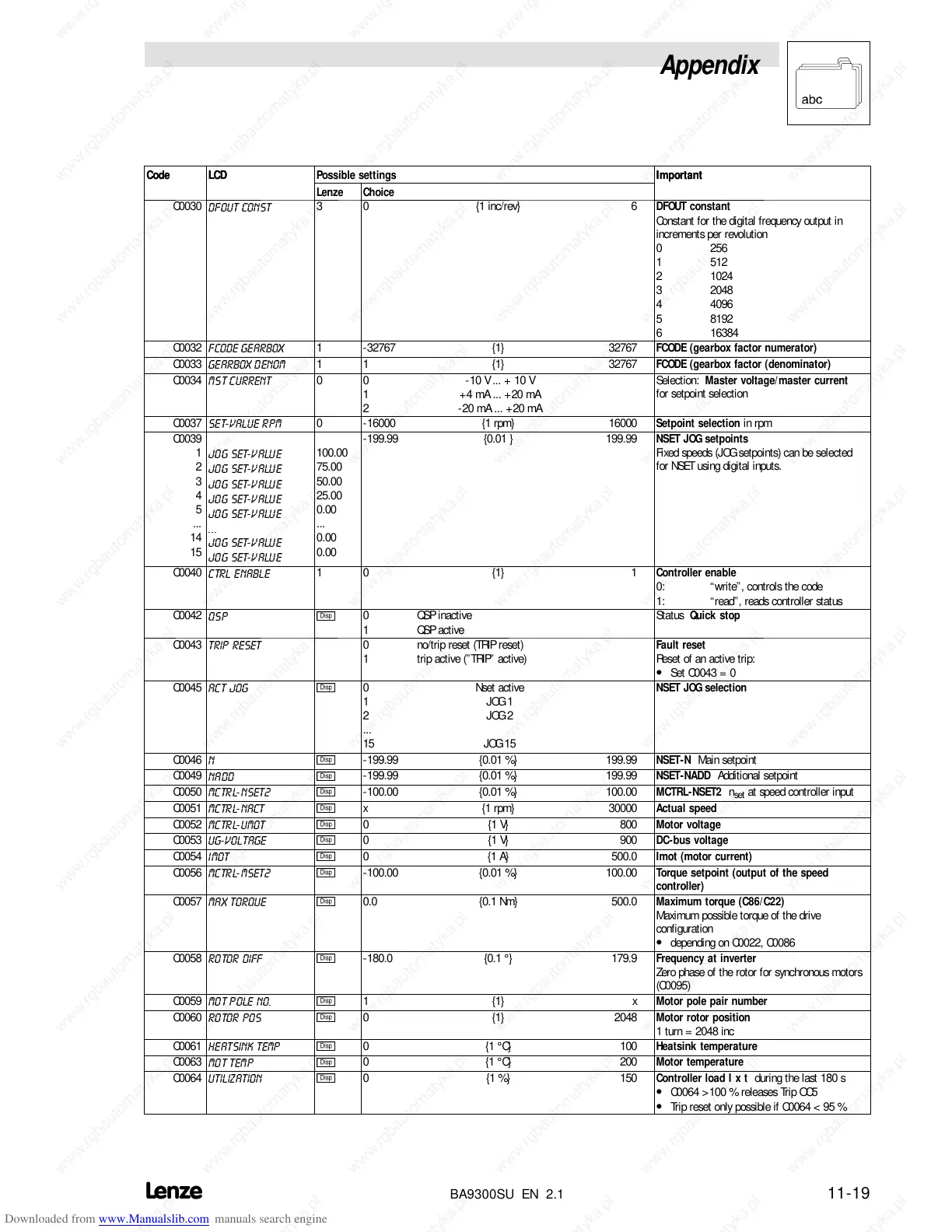

Appendix
11-19
BA9300SU EN 2.1
Code ImportantPossible settingsLCDCode Important
ChoiceLenze
LCD
C0030
')287 &2167
3 0{1inc/rev} 6DFOUT constant
Constant for the digital frequency output in
increments per revolution
0 256
1 512
2 1024
3 2048
4 4096
5 8192
6 16384
C0032
)&2'( *($5%2;
1 -32767 {1} 32767 FCODE (gearbox factor numerator)
C0033
*($5%2; '(120
1 1 {1} 32767 FCODE (gearbox factor (denominator)
C0034
067 &855(17
0 0 -10 V ... + 10 V
1 +4mA...+20mA
2 -20 mA ... +20 mA
Selection: Master voltage/master current
for setpoint selection
C0037
6(79$/8( 530
0 -16000 {1 rpm} 16000 Setpoint selection in rpm
C0039
1
2
3
4
5
...
14
15
-2* 6(79$/8(
-2* 6(79$/8(
-2* 6(79$/8(
-2* 6(79$/8(
-2* 6(79$/8(
-2* 6(79$/8(
-2* 6(79$/8(
100.00
75.00
50.00
25.00
0.00
...
0.00
0.00
-199.99 {0.01 } 199.99 NSET JOG setpoints
Fixed speeds (JOG setpoints)can be selected
for NSET using digital inputs.
C0040
&75/ (1$%/(
1 0{1} 1Controller enable
0: “write”, controls the code
1: “read”, reads controller status
C0042
QRP
g
0QSPinactive
1QSPactive
Status Quick stop
C0043
75,3 5(6(7
0 no/trip reset (TRIP reset)
1tripactive(”TRIP” active)
Fault reset
Resetofanactivetrip:
• Set C0043 = 0
C0045
DES -2*
g
0Nsetactive
1JOG1
2JOG2
...
15 JOG 15
NSET JOG selection
C0046
1
g
-199.99 {0.01 %} 199.99 NSET-N Main setpoint
C0049
1$''
g
-199.99 {0.01 %} 199.99 NSET-NADD Additional setpoint
C0050
0&75/16(7
g
-100.00 {0.01 %} 100.00 MCTRL-NSET2 n
set
at speed controller input
C0051
0&75/1$&7
g
x {1 rpm} 30000 Actual speed
C0052
0&75/8NOS
g
0 {1 V} 800 Motor voltage
C0053
8HTOMSDHF
g
0 {1 V} 900 DC-bus voltage
C0054
,0OS
g
0 {1 A} 500.0 Imot (motor current)
C0056
0&75/06(7
g
-100.00 {0.01 %} 100.00 Torque setpoint (output of the speed
controller)
C0057
0$; 72548(
g
0.0 {0.1 Nm} 500.0 Maximum torque (C86/C22)
Maximum possible torque of the drive
configuration
• depending on C0022, C0086
C0058
52725 ',))
g
-180.0 {0.1 °} 179.9 Frequency at inverter
Zero phase of the rotor for synchronous motors
(C0095)
C0059
027 32/( 12
g
1{1} xMotor pole pair number
C0060
52725 326
g
0 {1} 2048 Motor rotor position
1 turn = 2048 inc
C0061
+($76,1. 7(03
g
0{1°C} 100 Heatsink temperature
C0063
0OS SFNP
g
0{1°C} 200 Motor temperature
C0064
87,/,=$7,21
g
0 {1 %} 150 Controller load I x t during the last 180 s
• C0064 >100 % releases Trip OC5
• Trip reset only possible if C0064 < 95 %
