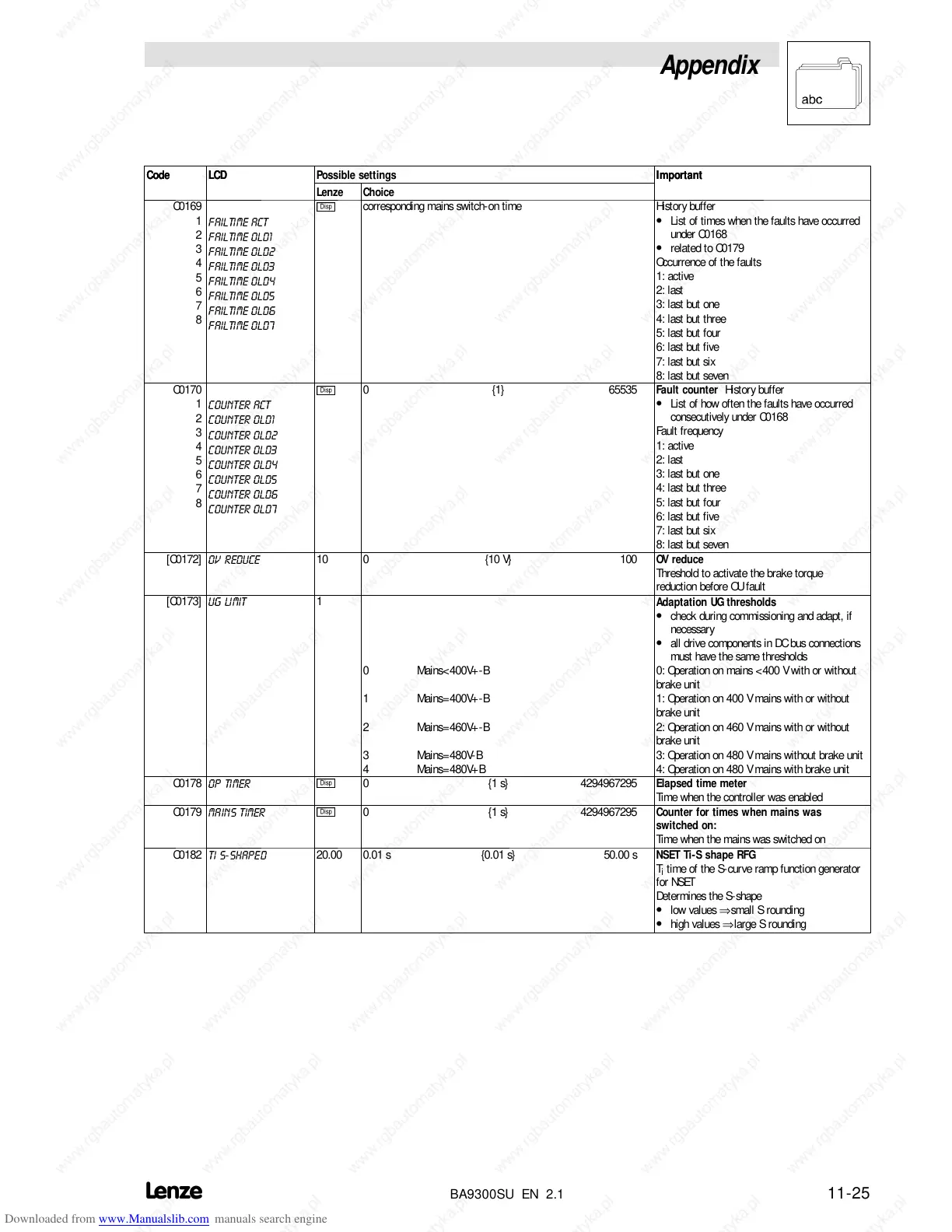

Appendix
11-25
BA9300SU EN 2.1
Code ImportantPossible settingsLCDCode Important
ChoiceLenze
LCD
C0169
1
2
3
4
5
6
7
8
)DJMSJNF DES
)DJMSJNF OM'
)DJMSJNF OM'
)DJMSJNF OM'
)DJMSJNF OM'
)DJMSJNF OM'
)DJMSJNF OM'
)DJMSJNF OM'
g
corresponding mains switch-on time History buffer
• List of times when the faults have occurred
under C0168
• related to C0179
Occurrence of the faults
1: active
2: last
3: last but one
4: last but three
5: last but four
6: last but five
7: last but six
8: last but seven
C0170
1
2
3
4
5
6
7
8
&O81SF5 DES
&O81SF5 OM'
&O81SF5 OM'
&O81SF5 OM'
&O81SF5 OM'
&O81SF5 OM'
&O81SF5 OM'
&O81SF5 OM'
g
0 {1} 65535 Fault counter History buffer
• List of how often the faults have occurred
consecutively under C0168
Fault frequency
1: active
2: last
3: last but one
4: last but three
5: last but four
6: last but five
7: last but six
8: last but seven
[C0172]
29 5('8&(
10 0 {10 V} 100 OV reduce
Threshold to activate the brake torque
reduction before OU fault
[C0173]
8* MJNJS
1
Adaptation UG thresholds
• check during commissioning and adapt, if
necessary
• all drive components in DC bus connections
must have the same thresholds
0 Mains<400V+-B 0: Operation on mains <400 V with or without
brake unit
1 Mains=400V+-B 1: Operation on 400 V mains with or without
brake unit
2 Mains=460V+-B 2: Operation on 460 V mains with or without
brake unit
3 Mains=480V-B 3: Operation on 480 V mains without brake unit
4 Mains=480V+B 4: Operation on 480 Vmains with brake unit
C0178
2P SJNF5
g
0 {1 s} 4294967295 Elapsed time meter
Time when the controller was enabled
C0179
0DJ1R SJNF5
g
0 {1 s} 4294967295 Counter for times when mains was
switched on:
Time when the mains was switched on
C0182
7J 6RIDPF'
20.00 0.01 s {0.01 s} 50.00 s NSET Ti-S shape RFG
T
i
time of the S-curve ramp function generator
for NSET
Determines the S-shape
• low values ⇒small S rounding
• high values ⇒large S rounding
