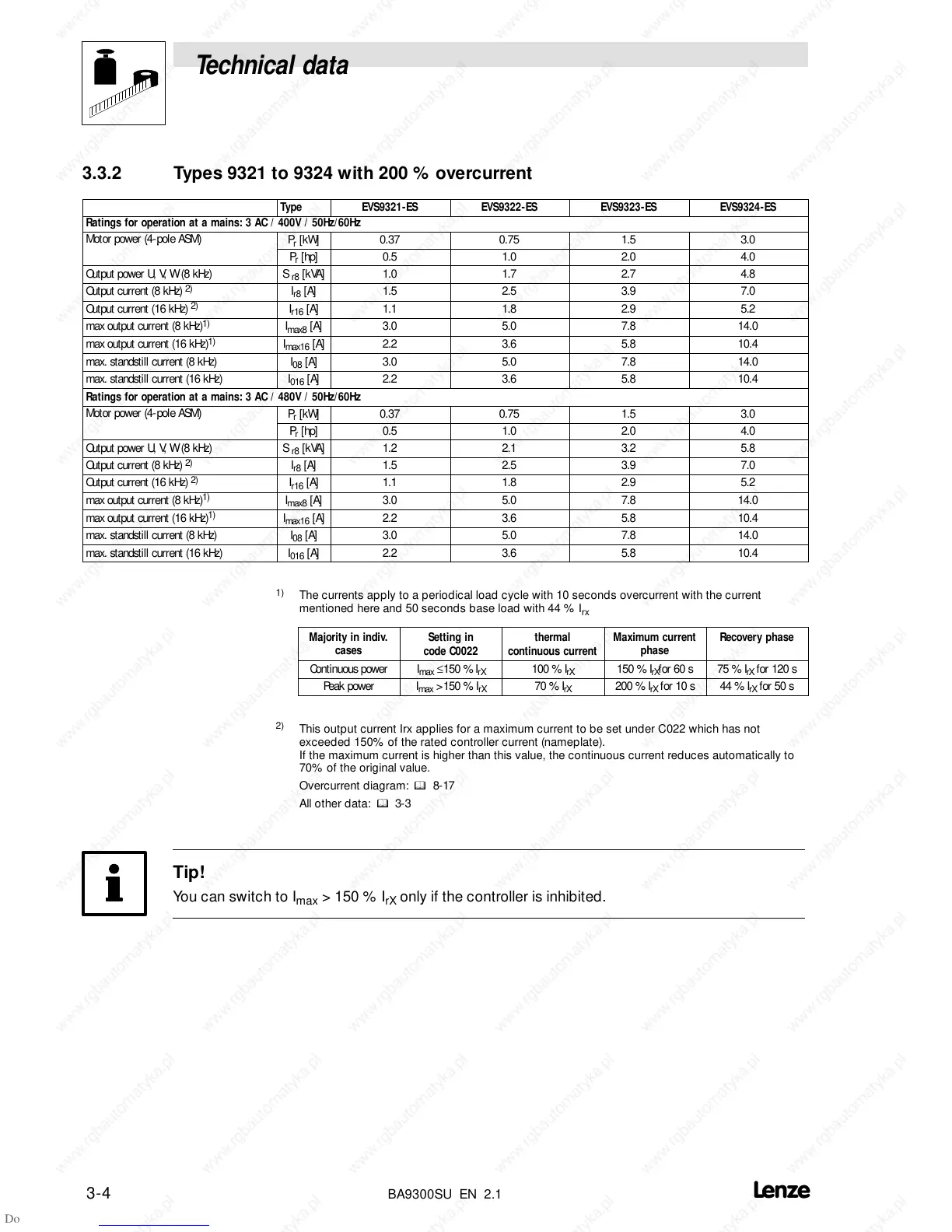

Technical data
3-4

BA9300SU EN 2.1
3.3.2 Types 9321 to 9324 with 200 % overcurrent
Type EVS9321-ES EVS9322-ES EVS9323-ES EVS9324-ES
Ratings for operation at a mains: 3 AC / 400V / 50Hz/60Hz
Motor power (4-pole ASM)
P
r
[kW] 0.37 0.75 1.5 3.0
p
(
p
)
P
r
[hp] 0.5 1.0 2.0 4.0
Output power U, V, W (8 kHz) S
r8
[kVA] 1.0 1.7 2.7 4.8
Output current (8 kHz)
2)
I
r8
[A] 1.5 2.5 3.9 7.0
Output current (16 kHz)
2)
I
r16
[A] 1.1 1.8 2.9 5.2
max output current (8 kHz)
1)
I
max8
[A] 3.0 5.0 7.8 14.0
max output current (16 kHz)
1)
I
max16
[A] 2.2 3.6 5.8 10.4
max. standstill current (8 kHz) I
08
[A] 3.0 5.0 7.8 14.0
max. standstill current (16 kHz) I
016
[A] 2.2 3.6 5.8 10.4
Ratings for operation at a mains: 3 AC / 480V / 50Hz/60Hz
Motor power (4-pole ASM)
P
r
[kW] 0.37 0.75 1.5 3.0
p
(
p
)
P
r
[hp] 0.5 1.0 2.0 4.0
Output power U, V, W (8 kHz) S
r8
[kVA] 1.2 2.1 3.2 5.8
Output current (8 kHz)
2)
I
r8
[A] 1.5 2.5 3.9 7.0
Output current (16 kHz)
2)
I
r16
[A] 1.1 1.8 2.9 5.2
max output current (8 kHz)
1)
I
max8
[A] 3.0 5.0 7.8 14.0
max output current (16 kHz)
1)
I
max16
[A] 2.2 3.6 5.8 10.4
max. standstill current (8 kHz) I
08
[A] 3.0 5.0 7.8 14.0
max. standstill current (16 kHz) I
016
[A] 2.2 3.6 5.8 10.4
1)
The currents apply to a periodical load cycle with 10 seconds overcurrent with the current
mentioned here and 50 seconds base load with 44 % I
rx
Majority in indiv.
cases
Setting in
code C0022
thermal
continuous current
Maximum current
phase
Recovery phase
Continuous power I
max
≤150 % I
rX
100 % I
rX
150 % I
rX
for 60 s 75 % I
rX
for 120 s
Peak power I
max
>150 % I
rX
70 % I
rX
200 % I
rX
for 10 s 44 % I
rX
for 50 s
2)
This output current Irx applies for a maximum current to be set under C022 which has not
exceeded 150% of the rated controller current (nameplate).
If the maximum current is higher than this value, the continuous current reduces automatically to
70% of the original value.
Overcurrent diagram:
^ 8-17
All other data: ^ 3-3
Tip!
You can switch to I
max
> 150 % I
rX
only if the controller is inhibited.
