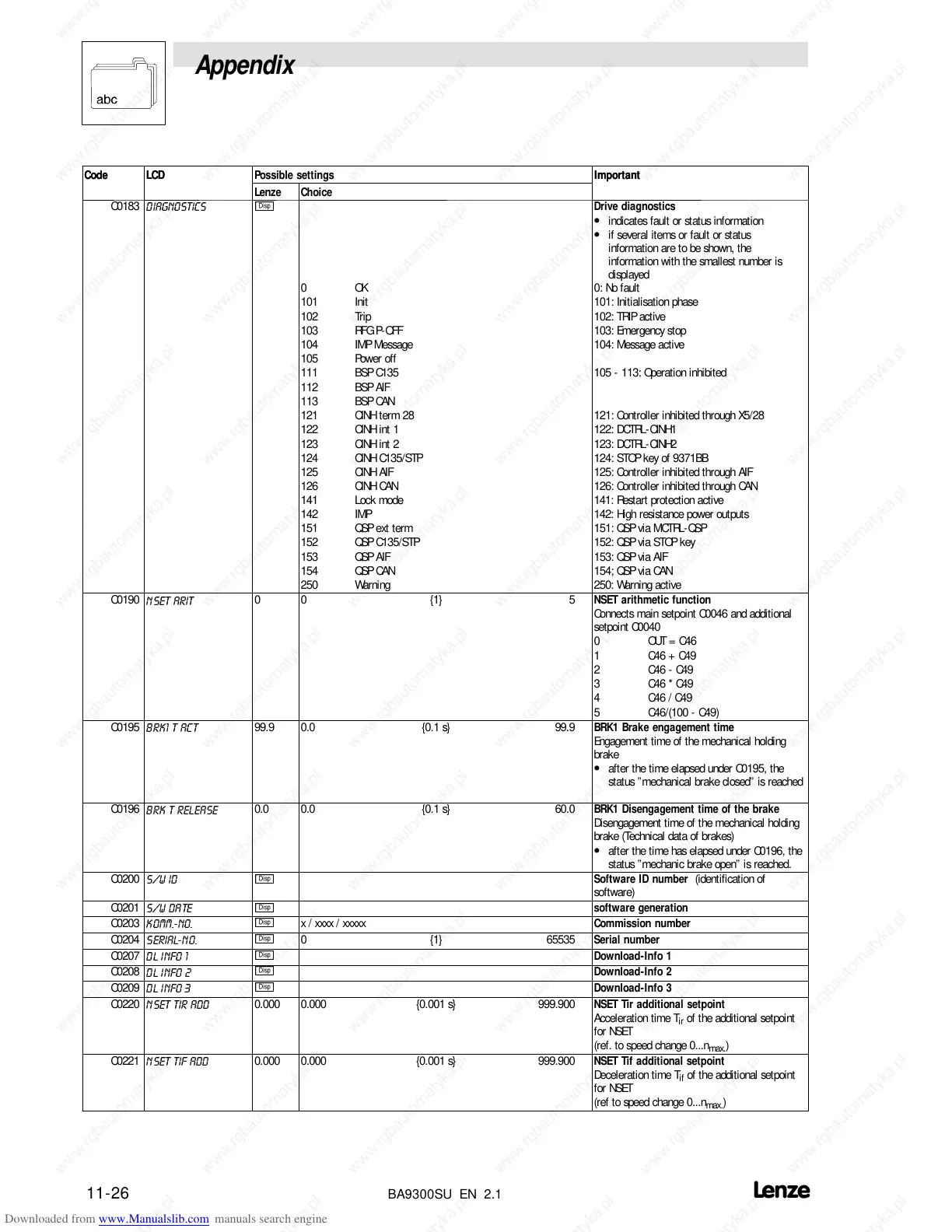

Appendix
11-26
BA9300SU EN 2.1
Code ImportantPossible settingsLCDCode Important
ChoiceLenze
LCD
C0183
'JDH1ORSJER
g
Drive diagnostics
• indicates fault or status information
• if several items or fault or status
information are to be shown, the
information with the smallest number is
displayed
0OK
101 Init
102 Trip
103 RFG P-OFF
104 IMP Message
105 Power off
111 BSP C135
112 BSP AIF
113 BSP CAN
121 CINH term 28
122 CINH int 1
123 CINH int 2
124 CINH C135/STP
125 CINH AIF
126 CINH CAN
141 Lock mode
0: No fault
101: Initialisation phase
102: TRIP active
103: Emergency stop
104: Message active
105 - 113: Operation inhibited
121: Controller inhibited through X5/28
122: DCTRL-CINH1
123: DCTRL-CINH2
124: STOP key of 9371BB
125: Controller inhibited through AIF
126: Controller inhibited through CAN
141: Restart protection active
142 IMP 142: High resistance power outputs
151 QSP ext term
152 QSP C135/STP
153 QSP AIF
154 QSP CAN
250 Warning
151: QSP via MCTRL-QSP
152: QSP via STOP key
153: QSP via AIF
154; QSP via CAN
250: Warning active
C0190
16(7 D5JS
0 0{1} 5NSET arithmetic function
Connects main setpoint C0046 and additional
setpoint C0040
0OUT=C46
1 C46 + C49
2 C46 - C49
3 C46 * C49
4 C46 / C49
5 C46/(100 - C49)
C0195
%5. 7 DES
99.9 0.0 {0.1 s} 99.9 BRK1 Brake engagement time
Engagement time of the mechanical holding
brake
• after the time elapsed under C0195, the
status ”mechanical brake closed” is reached
C0196
%5. 7 5FMFDRF
0.0 0.0 {0.1 s} 60.0 BRK1 Disengagement time of the brake
Disengagement time of the mechanical holding
brake (Technical data of brakes)
• after the time has elapsed under C0196, the
status ”mechanic brake open” is reached.
C0200
6: ,'
g
Software ID number (identification of
software)
C0201
6: 'DSF
g
software generation
C0203
.ONN1O
g
x / xxxx / xxxxx Commission number
C0204
6(5,$/12
g
0 {1} 65535 Serial number
C0207
'/ ,1)2
g
Download-Info 1
C0208
'/ ,1)2
g
Download-Info 2
C0209
'/ ,1)2
g
Download-Info 3
C0220
16(7 7J5 D''
0.000 0.000 {0.001 s} 999.900 NSET Tir additional setpoint
Acceleration time T
ir
of the additional setpoint
for NSET
(ref. to speed change 0...n
max.
)
C0221
16(7 7JG D''
0.000 0.000 {0.001 s} 999.900 NSET Tif additional setpoint
Deceleration time T
if
of the additional setpoint
for NSET
(ref to speed change 0...n
max.
)
