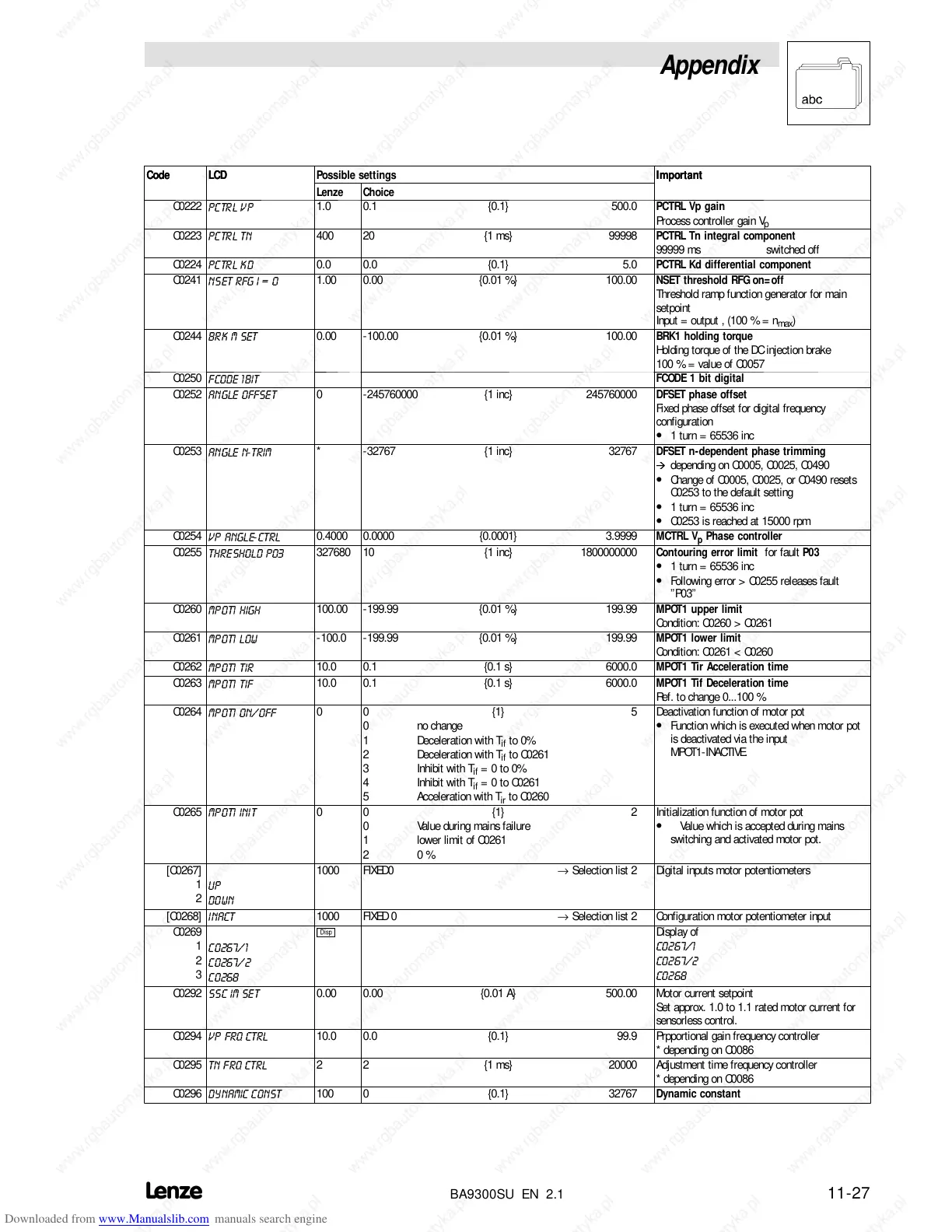

Lenze EVS9323-ES

Appendix
11-27
 BA9300SU EN 2.1
Code ImportantPossible settingsLCDCode Important
ChoiceLenze
LCD
C0222
3&75/ 9P
1.0 0.1 {0.1} 500.0 PCTRL Vp gain
Process controller gain V
p
C0223
3&75/ 71
400 20 {1 ms} 99998 PCTRL Tn integral component
99999 ms switched off
C0224
3&75/ .'
0.0 0.0 {0.1} 5.0 PCTRL Kd differential component
C0241
16(7 5)* , 2
1.00 0.00 {0.01 %} 100.00 NSET threshold RFG on=off
Threshold ramp function generator for main
setpoint
Input = output , (100 % = n
max
)
C0244
%5. 0 RFS
0.00 -100.00 {0.01 %} 100.00 BRK1 holding torque
Holding torque of the DC injection brake
100 % = value of C0057
C0250
)&2'( %JS
FCODE 1 bit digital
C0252
$1HMF OGGRFS
0 -245760000 {1 inc} 245760000 DFSET phase offset
Fixed phase offset for digital frequency
configuration
• 1 turn = 65536 inc
C0253
$1HMF 1S5JN
* -32767 {1 inc} 32767 DFSET n-dependent phase trimming
Å depending on C0005, C0025, C0490
• Change of C0005, C0025, or C0490 resets
C0253 to the default setting
• 1 turn = 65536 inc
• C0253 is reached at 15000 rpm
C0254
9P D1HMF&75/
0.4000 0.0000 {0.0001} 3.9999 MCTRL V
p
Phase controller
C0255
7I5FRIOM' 3
327680 10 {1 inc} 1800000000 Contouring error limit for fault P03
• 1 turn = 65536 inc
• Following error > C0255 releases fault
”P03”
C0260
0327 IJHI
100.00 -199.99 {0.01 %} 199.99 MPOT1 upper limit
Condition: C0260 > C0261
C0261
0327 MOU
-100.0 -199.99 {0.01 %} 199.99 MPOT1 lower limit
Condition: C0261 < C0260
C0262
0327 7J5
10.0 0.1 {0.1 s} 6000.0 MPOT1 Tir Acceleration time
C0263
0327 7JG
10.0 0.1 {0.1 s} 6000.0 MPOT1 Tif Deceleration time
Ref. to change 0...100 %
C0264
0327 O1OGG
0 0{1} 5
0 no change
1 Deceleration with T
if
to 0%
2 Deceleration with T
if
to C0261
3 Inhibit with T
if
=0to0%
4 Inhibit with T
if
= 0 to C0261
5 Acceleration with T
ir
to C0260
Deactivation function of motor pot
• Function which is executed when motor pot
is deactivated via the input
MPOT1-INACTIVE.
C0265
0327 J1JS
0 0{1} 2
0 Value during mains failure
1 lower limit of C0261
20%
Initialization function of motor pot
• Value which is accepted during mains
switching and activated motor pot.
[C0267]
1
2
83
'2:1
1000 FIXED0 → Selection list 2 Digital inputs motor potentiometers
[C0268]
J1DES
1000 FIXED 0 → Selection list 2 Configuration motor potentiometer input
C0269
1
2
3
&
&
&
g
Display of
&
&
&
C0292
66& ,N RFS
0.00 0.00 {0.01 A} 500.00 Motor current setpoint
Set approx. 1.0 to 1.1 rated motor current for
sensorless control.
C0294
9P G5Q ES5M
10.0 0.0 {0.1} 99.9 Prpportional gain frequency controller
*depending on C0086
C0295
71 G5Q ES5M
2 2 {1 ms} 20000 Adjustment time frequency controller
*depending on C0086
C0296
'<1$0,& &2167
100 0 {0.1} 32767 Dynamic constant
