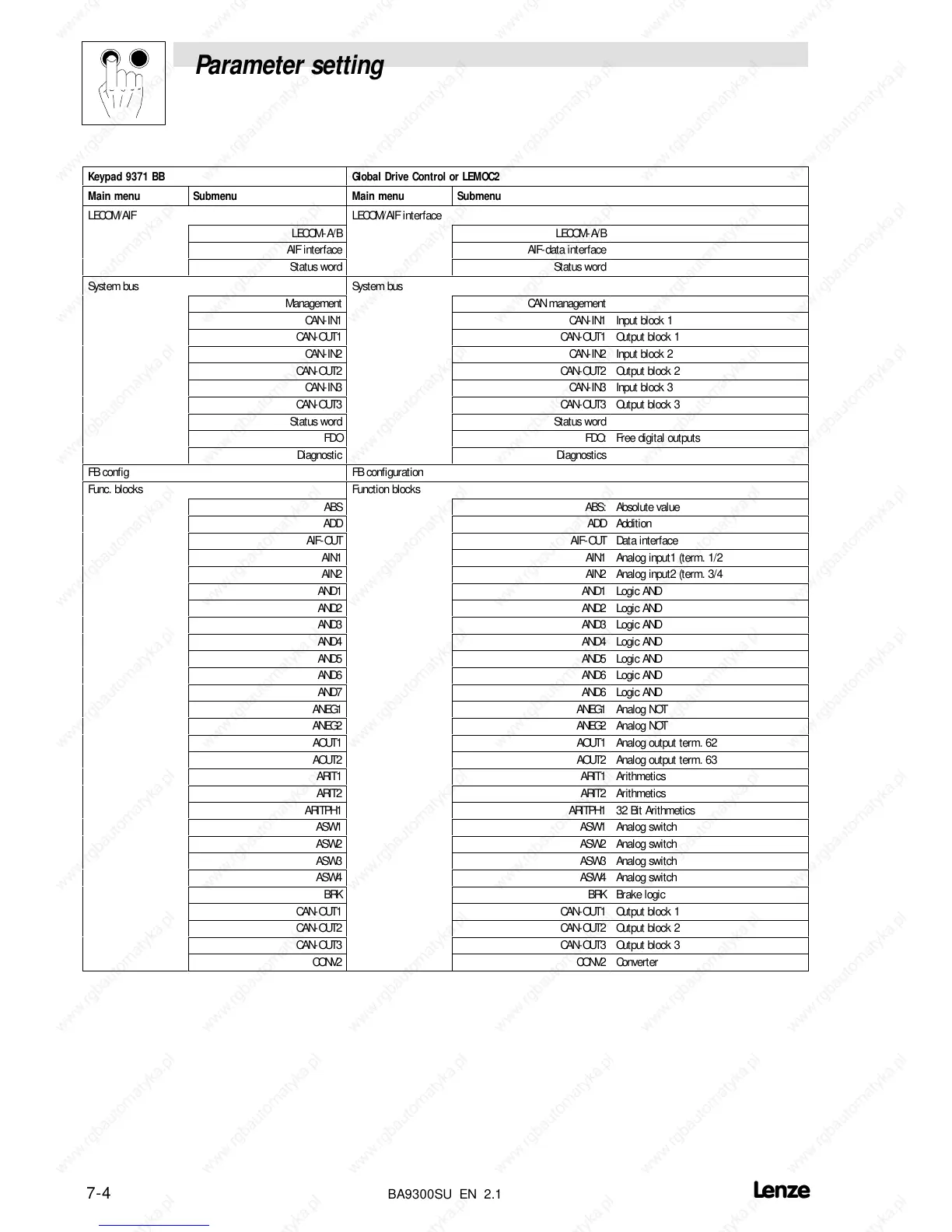

Parameter setting
7-4

BA9300SU EN 2.1
Global Drive Control or LEMOC2Keypad 9371 BB
SubmenuMain menuSubmenuMain menu
LECOM/AIF LECOM/AIF interface
LECOM-A/B LECOM-A/B
AIF interface AIF-data interface
Status word Status word
System bus System bus
Management CAN management
CAN-IN1 CAN-IN1 Input block 1
CAN-OUT1 CAN-OUT1 Output block 1
CAN-IN2 CAN-IN2 Input block 2
CAN-OUT2 CAN-OUT2 Output block 2
CAN-IN3 CAN-IN3 Input block 3
CAN-OUT3 CAN-OUT3 Output block 3
Status word Status word
FDO FDO: Free digital outputs
Diagnostic Diagnostics
FB config FB configuration
Func. blocks Function blocks
ABS ABS: Absolute value
ADD ADD Addition
AIF-OUT AIF-OUT Data interface
AIN1 AIN1 Analog input1 (term. 1/2
AIN2 AIN2 Analog input2 (term. 3/4
AND1 AND1 Logic AND
AND2 AND2 Logic AND
AND3 AND3 Logic AND
AND4 AND4 Logic AND
AND5 AND5 Logic AND
AND6 AND6 Logic AND
AND7 AND6 Logic AND
ANEG1 ANEG1 Analog NOT
ANEG2 ANEG2 Analog NOT
AOUT1 AOUT1 Analog output term. 62
AOUT2 AOUT2 Analog output term. 63
ARIT1 ARIT1 Arithmetics
ARIT2 ARIT2 Arithmetics
ARITPH1 ARITPH1 32 Bit Arithmetics
ASW1 ASW1 Analog switch
ASW2 ASW2 Analog switch
ASW3 ASW3 Analog switch
ASW4 ASW4 Analog switch
BRK BRK Brake logic
CAN-OUT1 CAN-OUT1 Output block 1
CAN-OUT2 CAN-OUT2 Output block 2
CAN-OUT3 CAN-OUT3 Output block 3
CONV2 CONV2 Converter
