Lenze g500-B - Dimensions

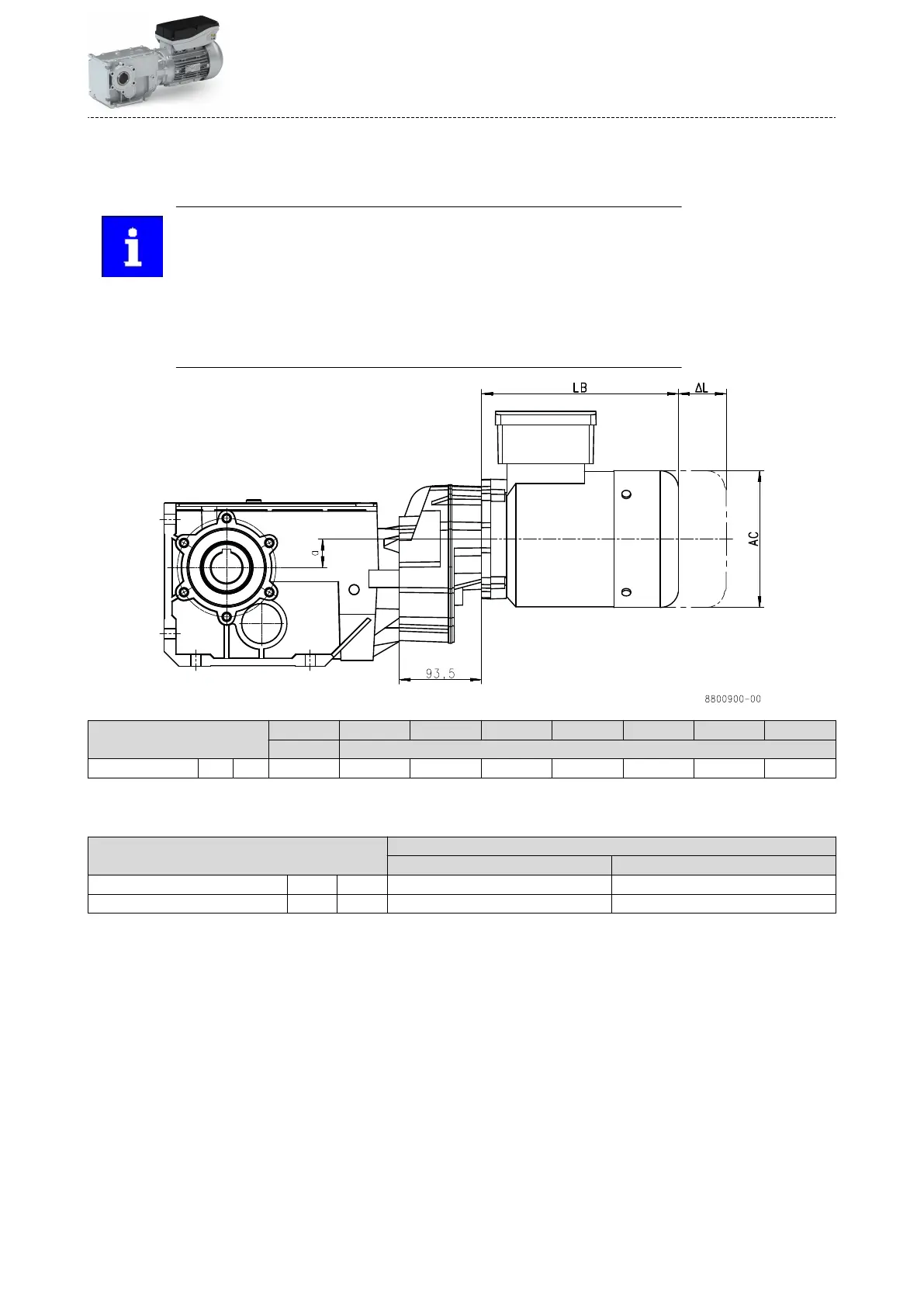

Gearbox with pre-stage
g500-B110, 3-stage
g500-B240 ... B4300, 4-stage
The geared motor dimensions are taken from the basic dimensions except for
the overall length "L" and the center distance "a".
4Basic dimensions ^ 62
The total length "L" of the basic dimensions is extended by the 93.5 mm
dimension of the pre-stage.
Note the changed center distance "a" between the gearbox sha and the motor
sha.
Gearboxes g500-B110 g500-B240 g500-B450 g500-B600 g500-B820 g500-B1500 g500-B2700 g500-B4300
3-stage 4-stage
Center distance a mm 81 85 32.4 43 35 23 19.9 16
Addional lengths
Self-venlated motors
Motor MSEMA☐☐
063-42 080-32
Without brake Δ L mm 0 0
With spring-applied holding brake Δ L mm 40 73
Technical data
Dimensions
Gearbox with pre-stage
89
