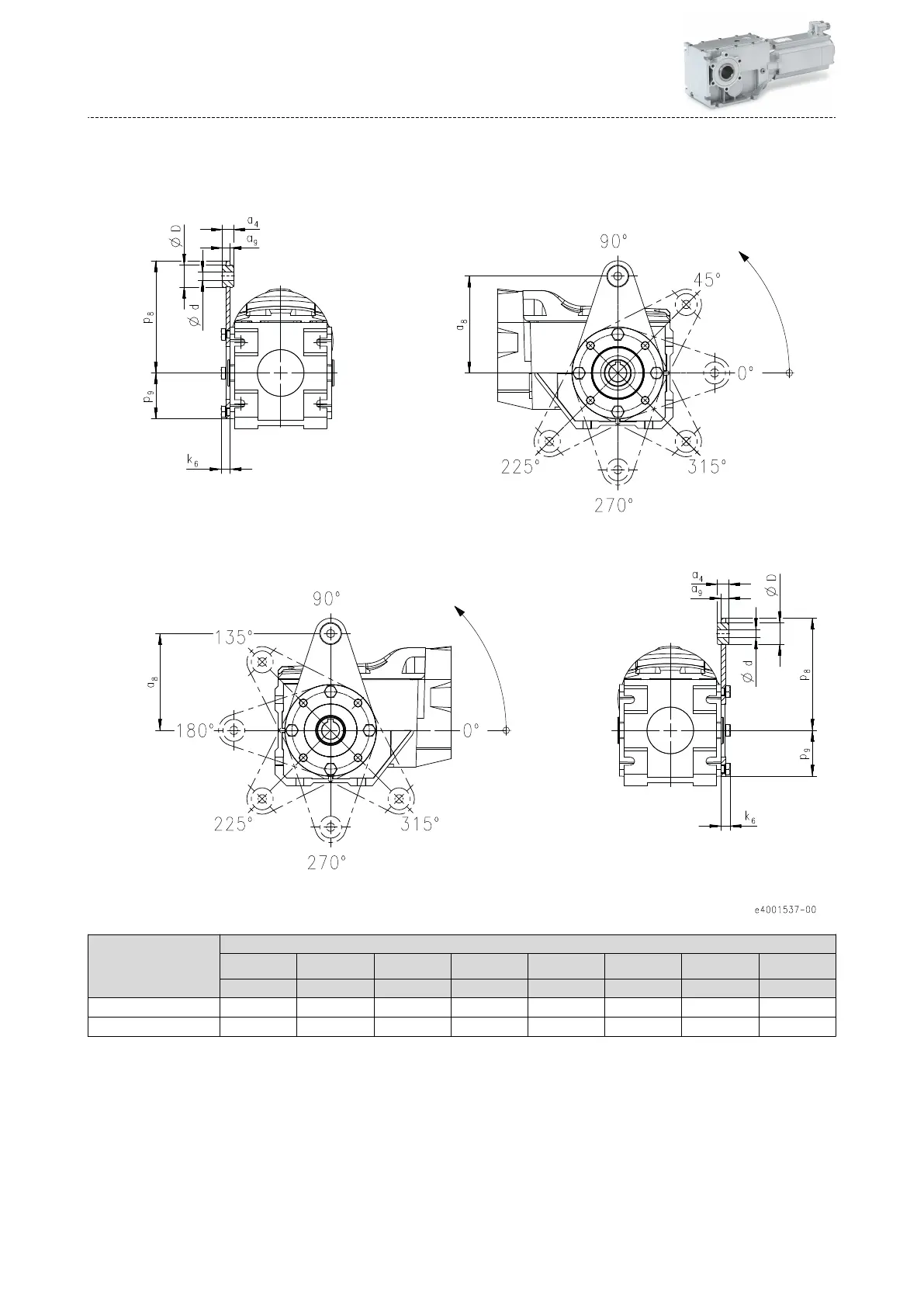

Torque plate on threaded pitch circle
g500-B45 ... B110
Gearboxes Dimensions
a
4
a
8
a
9
d D p
8
p
9
k
6
mm mm mm mm mm mm mm mm
g500-B45 12.0 100 8.0 8.0 20,0 115 42.0 9.0
g500-B110 13.0 110 9.0 10.0 25.0 128 54.0 11.0
Product extensions
Torque plates
118
