g500-B240 ... B600

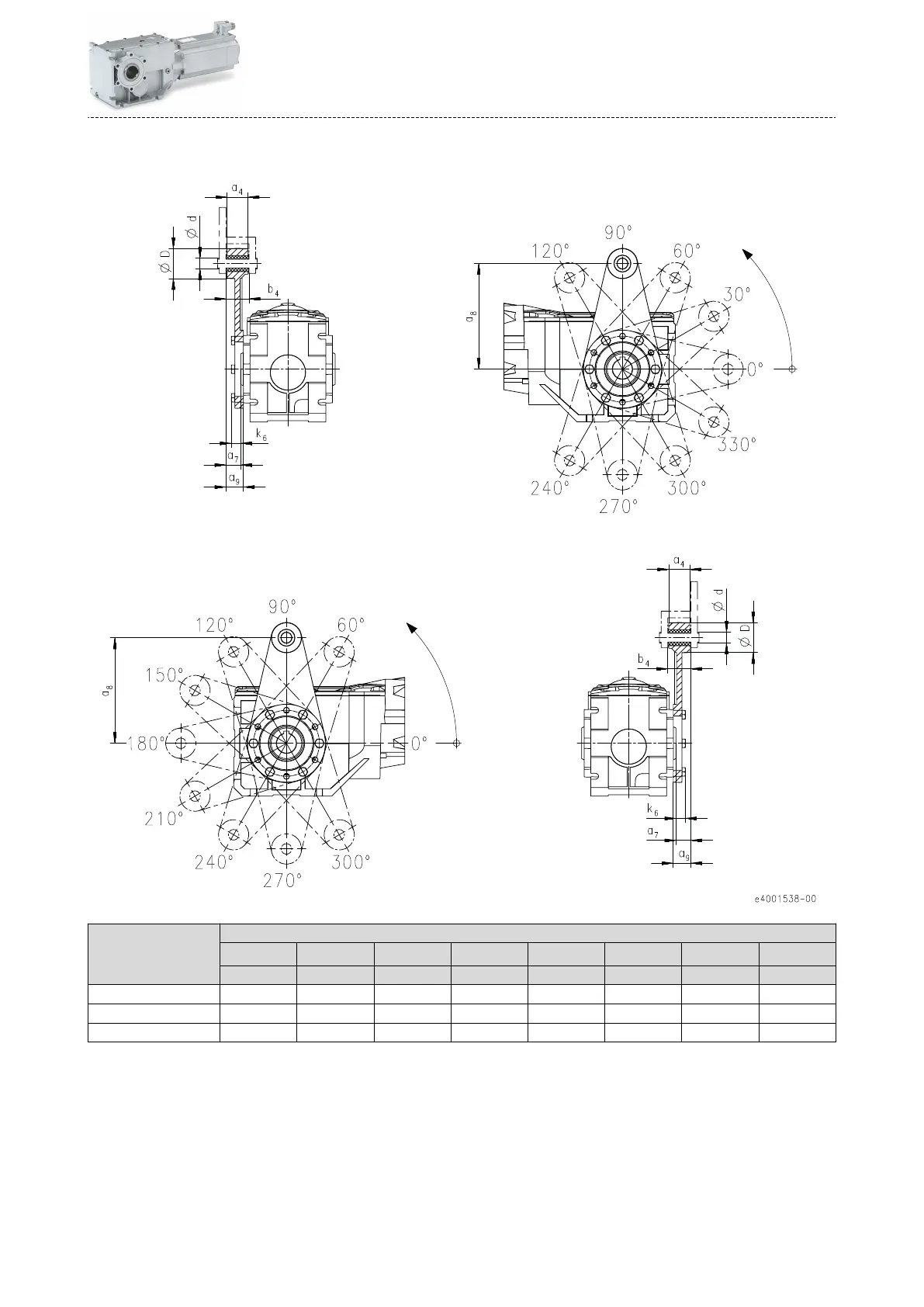

Gearboxes Dimensions
a
4
a
7
a
8
a
9
b
4
d D k
6
mm mm mm mm mm mm mm mm
g500-B240 34.0 23.5 160 27.5 38.5 16.0 45.0 15.0
g500-B450 40,0 29.0 200 32.0 44.5 20,0 50.0 18.0
g500-B600 38.0 26.5 200 31.5 40,0 20,0 50.0 19.0
Product extensions
Torque plates
119
