Electrical installation
Connection established via RS485 (LECOM−B)
6
EDKMF2102 DE/EN/FR 8.0
71
H2_VerbindungRS485_LECOM−verbindg zu AR−Master
2102LEC018

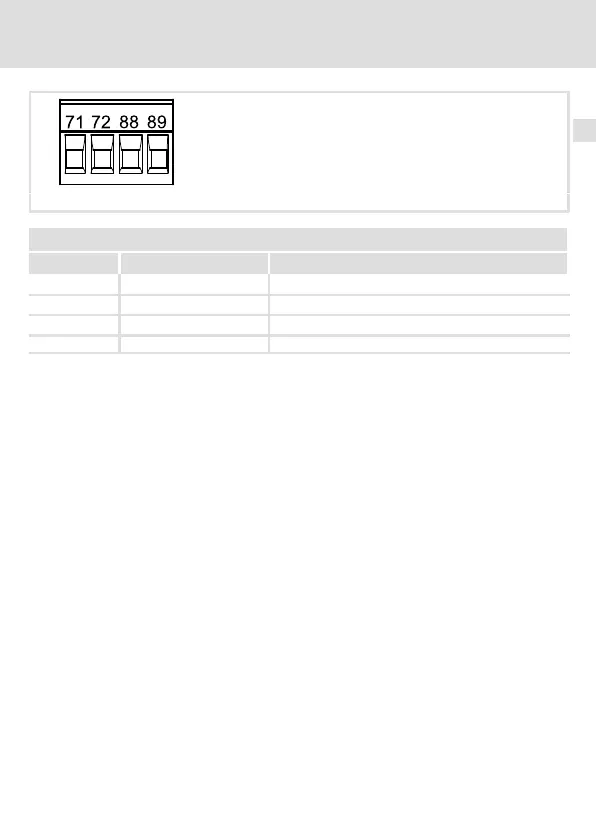

RS485 interface via plug connector, 4−pole
Terminal Designation Assignment
71 T/R(B) RS485
72 T/R(A) RS485
88 S−C Capacitive shielding to PE
89 S Direct shielding to PE
