Lenze Smart Motor m300 - Product Identification and Features

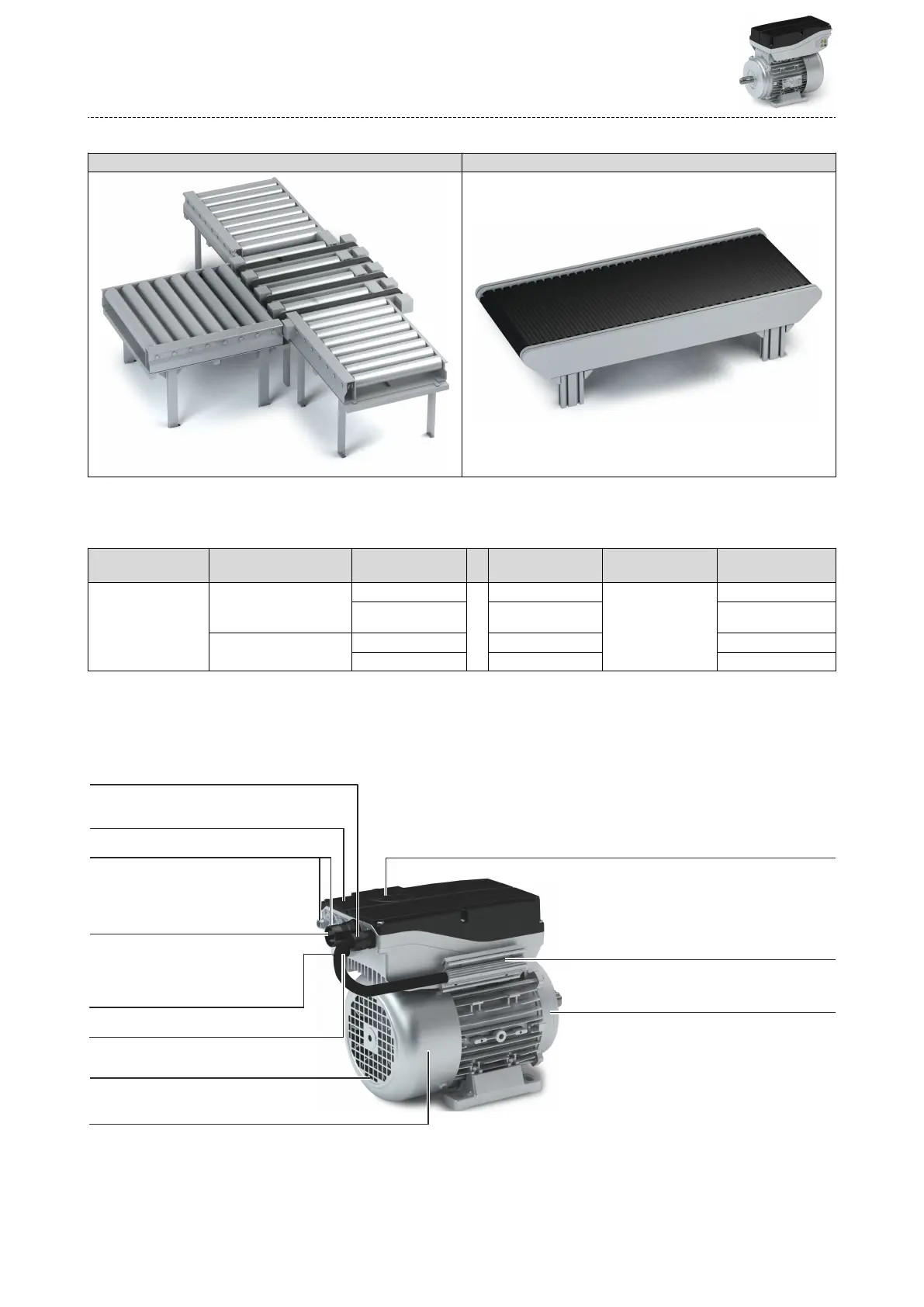

Applicaon examples
Roller conveyors with belt ejector Belt conveyors
Idencaon of the products
Product name of the motor
Product series Type Size Overall length Number of pole
pairs
Motor
MSEMA
XX
(without built-on
accessories)
063
-
4
2 (4-pole)
MSEMAXX063-42
080 3 MSEMAXX080-32
BR
(with brake)
063 4 MSEMABR063-42
080 3 MSEMABR080-32
Features
The following gure provides an overview of the elements and connecons on the product.
Their posion, size and appearance may vary.
Connection of spring-applied brake
Mains connection
Control terminal
Brake resistor connection
(prewired upon delivery)
X5
External
X4
Internal brake resistor
PE
by means of Android smartphone
by means of PC via NFC adapter
Adjustment of speeds
M12 connector
X1, X2
In the terminal box
QUICKON V2-connector
M15-connector
X3
Foot (B3)
Flange (B5) with through holes
Flange (B14) with threaded holes
External brake resistor
Standard
LongLife
Manual release lever
Spring-applied brake
Integral fan
Cooling
Type
Product informaon
Idencaon of the products
10
