User's Manual - 5

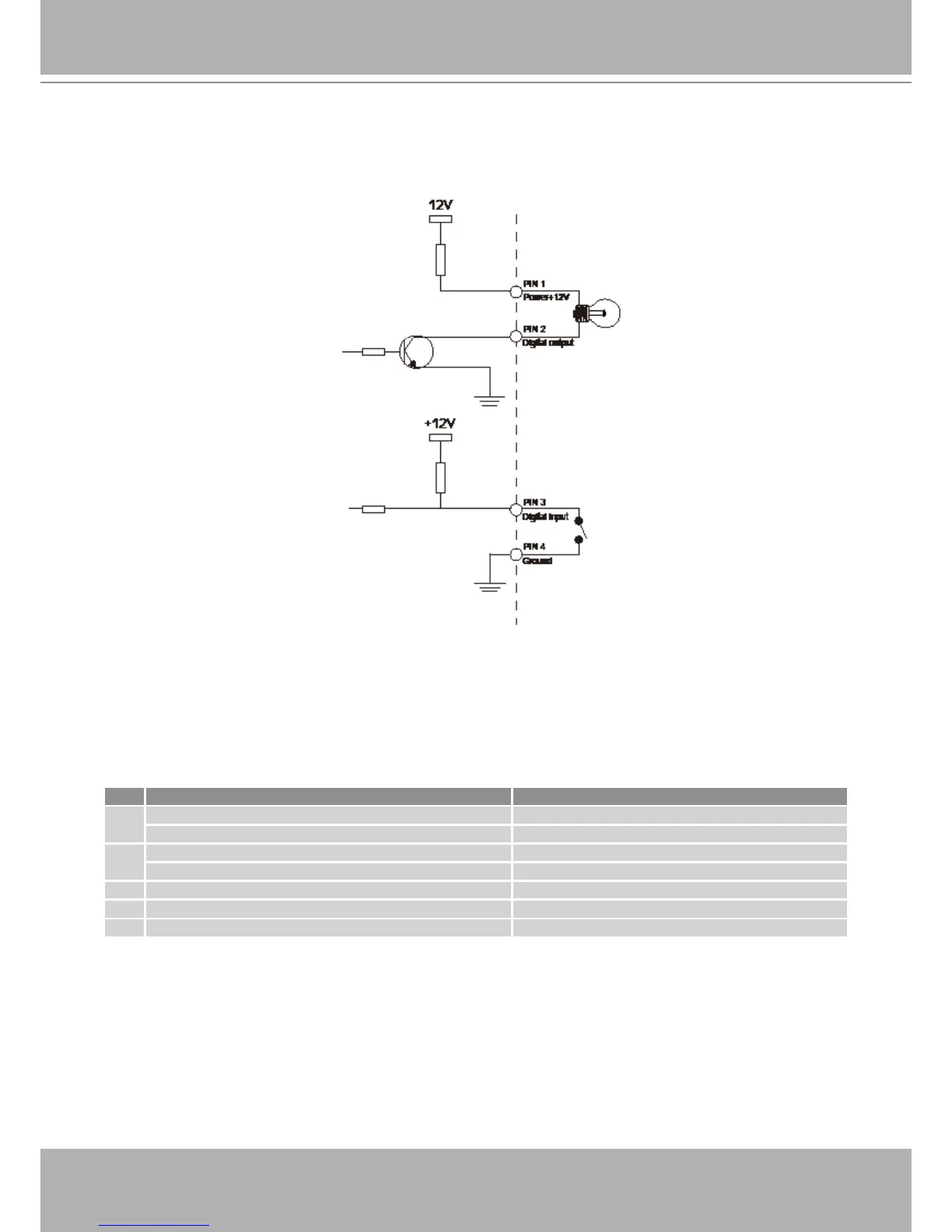

DI/DO Diagram
Please refer to the following illustration for the connection method.
Status LED
The LED indicates the status of the Network Camera.
Item LED status Description
1
Steady Red Power on and system booting
Red LED unlighted Power off
2
Steady Red + Blink Green every 1 sec. Network works (heartbeat)
Steady Red + Green LED unlighted Network fail
3 Steady Red + Blink Green every 2 sec. Audio mute (heartbeat)
4 Blink Red every 0.15 sec. + Blink Green every 1 sec. Upgrading Firmware
5 Blink Red every 0.15 sec. + Blink Green every 0.15 sec. Restore default
