Hardware Manual
12

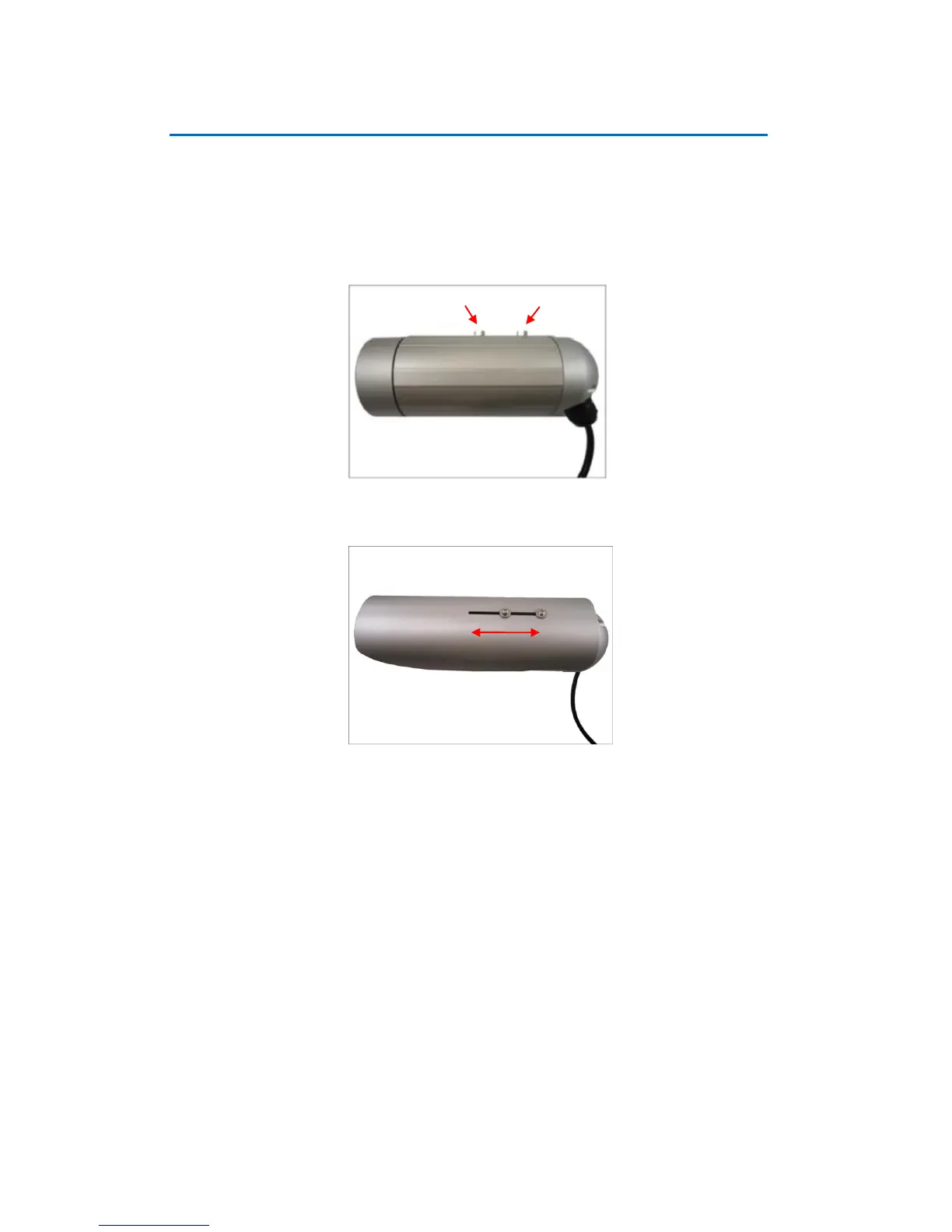

Step 2: Attach the Sunshield
The use of sunshield is optional if the camera will be installed indoors. However, if the camera
will be installed outdoors, attach the sunshield to protect the lens from all types of weather a
screw trox. nd lighting conditions.
1. Loosely secure the supplied screws and washers to attach the sunshield.
2. Slide to adjust the sunshield to cover the lens as far as possible but out of the camera’s
live view.
3. Tighten the screws to fix the position of the sunshield.
