LevelOne FCS-5057 - Physical Description

Hardware Manual
9

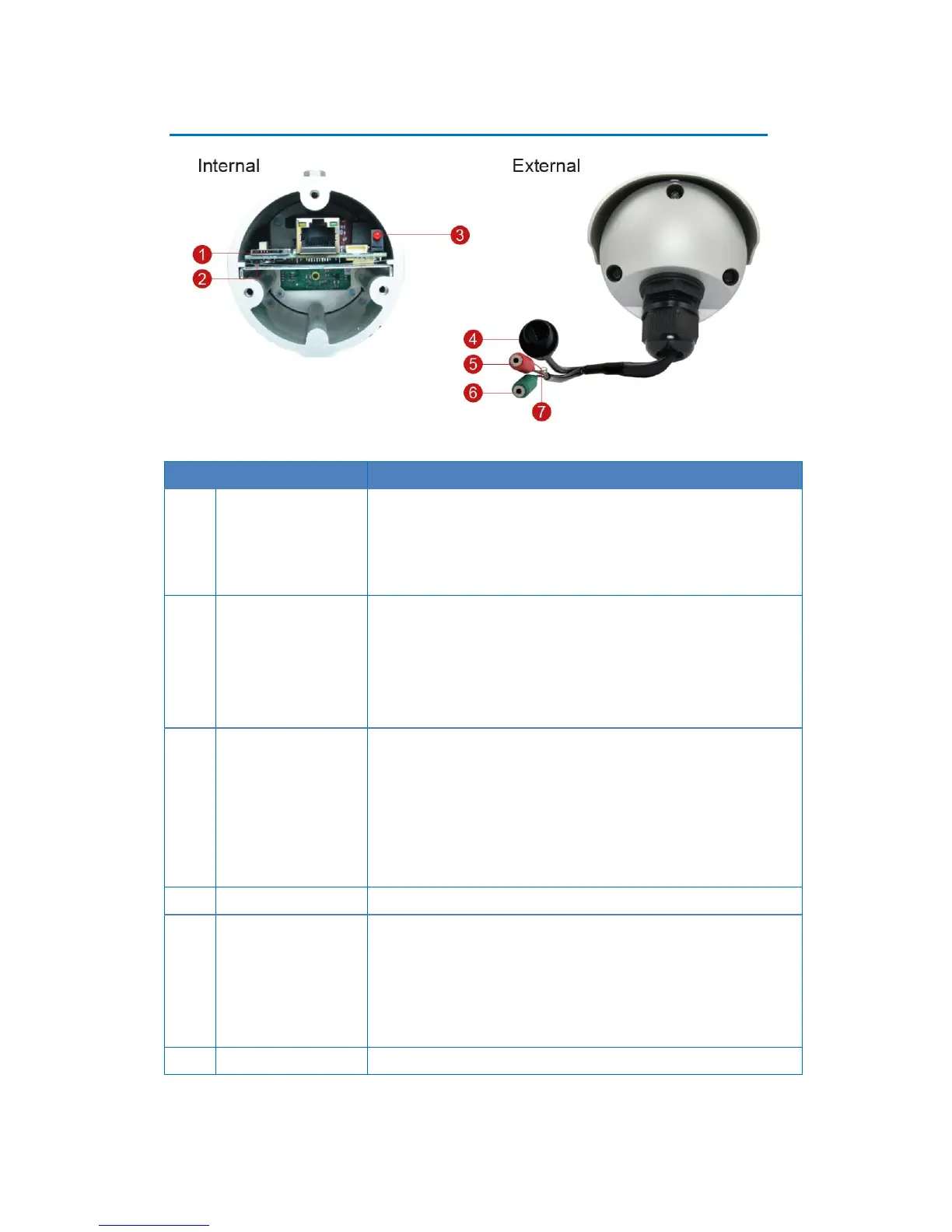

Physical Description
Item
Description
1
Memory Card Slot
Insert a memory card (not included) into this slot for local
recording purposes. See How to Install / Remove the Memory
Card on page 27 for more information.
NOTE: Supports microSDHC and microSDXC cards.
2
Reset Button
Use the Reset Button to reset the camera to its factory default
settings. To do the reset, press and hold the Reset button for at
least 5 seconds or until the Power LED lights up. When the
Power LED lights up again, reset is complete. See How to Reset
the Camera on page 30.
3
Power LED
The Power LED lights up when the camera is connected to the
power source and goes off once the camera boot-up process is
complete.
NOTE: For typical use, the power LED is hidden inside the
housing and cannot be seen. However, knowing how the power
LED works is essential when troubleshooting or doing a reset.
4
Ethernet Port
Connects to a network using a standard Ethernet cable.
5
Audio Input
Connects to audio input devices, such as a microphone with
built-in amplifier, etc.
NOTE: The microphone must have a built-in amplifier.
Connecting an ordinary microphone will dwarf sounds and will
result in inaudible recording.
6
Audio Output
Connects to audio output devices, such as a speaker, etc.
