LevelOne KVM-0221 User Manual

3. KVM Switch Utility Operation
In addition to PC switching, the KVM Switch Utility also provides user more advanced
functions such as described in below.

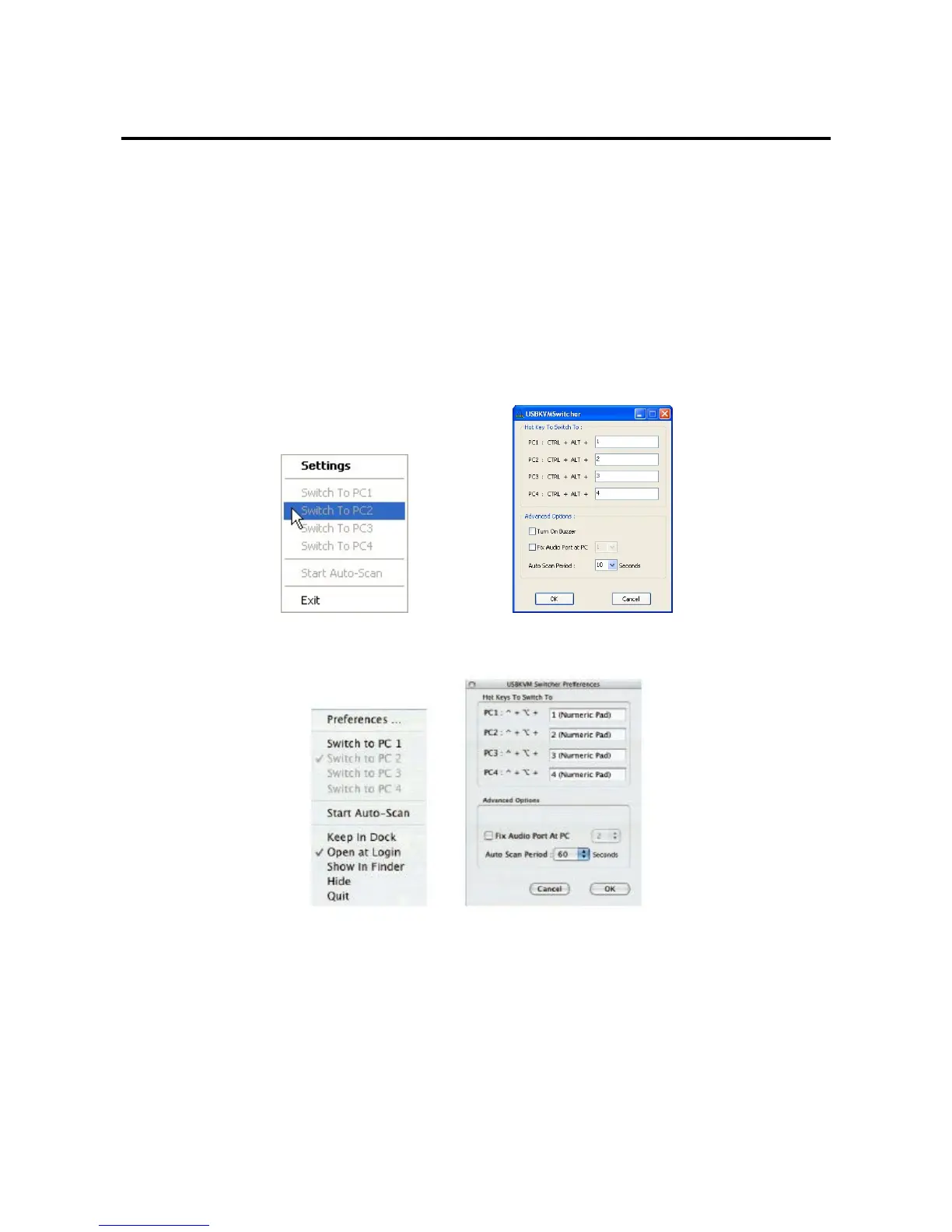

Switch to PC x by Operation Menu
Double click the KVM Switch utility icon on the desktop screen to evoke the operation menu,
and then select whichever PC that is available for switching. Once user selects a PC
channel, it will immediately switch to that PC. Note that the unconnected port(s) or the
active port will be grayed-out and non-selectable.
Windows: Operation Menu Configuration Dialog Box
Mac OS: Operation Menu Configuration Dialog Box
8

LevelOne KVM-0221 Specifications

General

Console ports	3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Audio connections	Yes
Headphone outputs	1
USB connector type	Mini-USB, USB Type-A
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	3
Number of computers controlled	2
Scan interval	25, 35, 45, 55, 50, 40, 10, 15, 20, 30, 60 s
Maximum resolution	2048 x 1536 pixels
Product color	Black, Green
Rack mounting	-
Housing material	Plastic
Built-in display	No
Country of origin	China
Harmonized System (HS) code	85176200
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	KVM, Mini-USB
Package depth	76 mm
Package width	221 mm
Package height	190 mm
Package weight	1140 g

Weight and Dimensions

Depth	61 mm
Width	96 mm
Height	24 mm
Weight	116 g
