LevelOne USB-0301 User Manual

USB 2.0 Ethernet Adapter User’s Manual
12
on Mac

Operating Systems

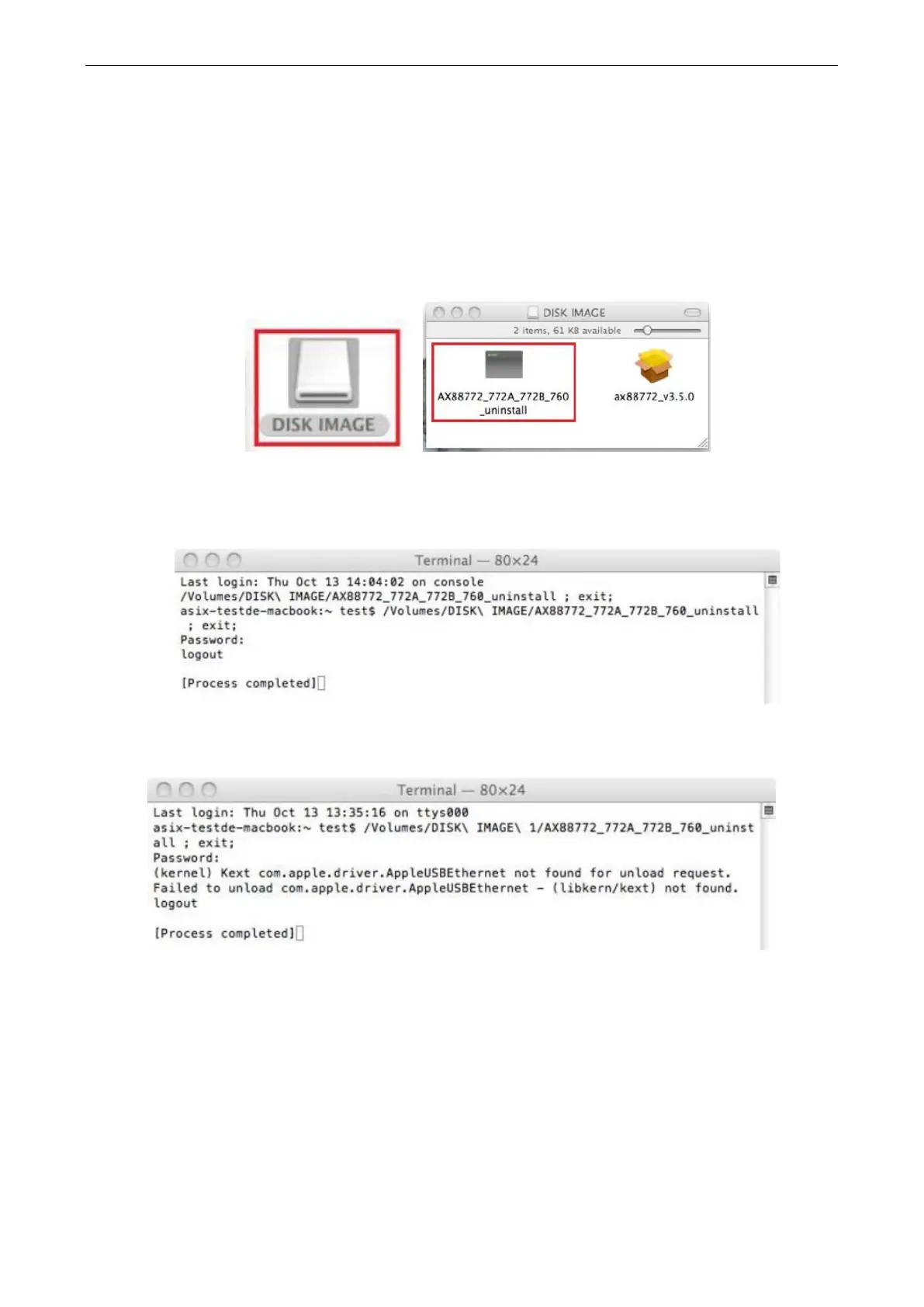

1. .Click the “AX88772.dmg”, the following “DISK IMAGE” virtual disk will be appeared on the
Desktop of your Mac OSX system. (This “DISK IMAGE” virtual disk will be auto-removed
after rebooting Mac OSX system.)
2. Click the “AX88772_772A_772B_760_uninstall” script file to uninstall ASIX’s
AX88772B/772A/760/772 Mac OSX driver.
Situation 1: If the AX88772B USB dongle was installed, you will see below messages.
Situation 2: If the AX88772B/772A/760/772 USB dongle was not installed, you will see below
messages but the driver un-installation can still be completed successfully.

LevelOne USB-0301 Specifications

Network Specifications

network standards	IEEE 802.3: 10Base-T, IEEE 802.3u: 100Base-T
data transfer rates	Ethernet: 10Mbps (Half/Full Duplex), Fast Ethernet: 100Mbps (Half/Full Duplex)
network interface	Female RJ45 jack

Power

power consumption	850mW
power management	Suspend mode, hibernation mode

Operating Environment

operating system support	Windows® 2000, XP, Vista™, Windows®7; Mac OS X 10.x
operating temperature	0°C to 70°C

System Memory

RAM	Embedded 20KB SRAM for RX packet buffering and 20KB SRAM for TX packet buffering

Weight and Dimensions

dimensions	66 mm x 22 mm x 15 mm
weight	25g
