LevelOne USB-0301 User Manual

1. Introduction
3
1. Introduction

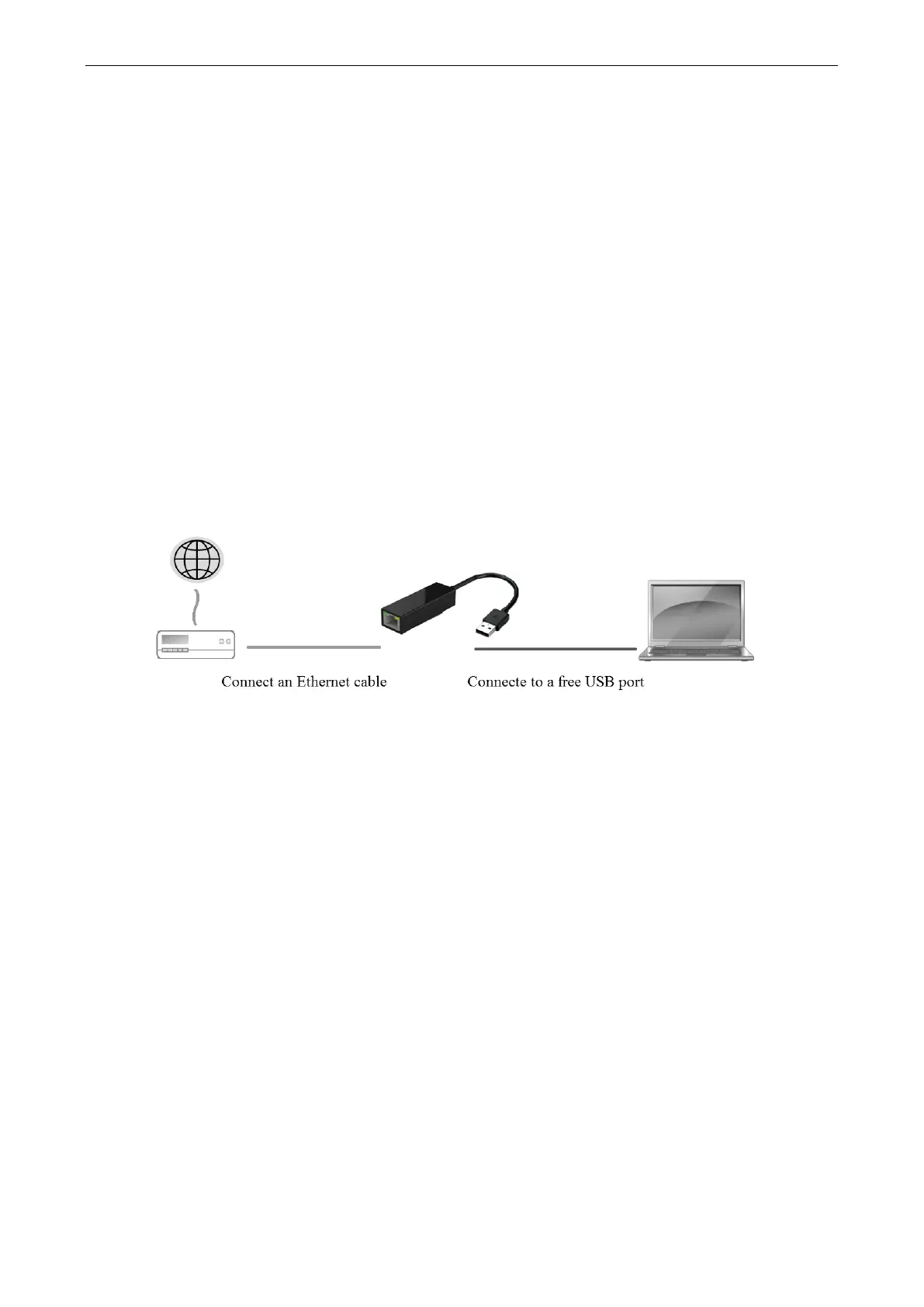

The USB2.0 Ethernet adapter design with small form factor, and simple
plug-and-play Fast Ethernet network connection capability ,It is the easiest solution
to enable your computer with network capability through an available USB 2.0 port
without going through the hassles to install a network card. for desktops, notebook
PC’s, Ultra-Mobile PC’s, docking stations ,digital-home appliances, and any
embedded system using a standard USB port.
The USB2.0 Ethernet adapter implements a 10/100Mbps Ethernet LAN function
based on IEEE802.3, and IEEE802.3u standards. The USB 2.0 Fast Ethernet
Adapter is also compliant with USB Specification, Revision 2.0. It is fully compatible
with a wide variety of Windows

operating systems
Features
 Compliant with USB 2.0 and USB 1.1 specifications
 IEEE 802.3 10BASE-T/100BASE-TX compatible
 IEEE 802.3 100BASE-FX compatible
 Supports twisted pair crossover detection and auto-correction (HP Auto-MDIX)
 Supports IPv4/ IPv6 packet Checksum Offload Engine(COE) to reduce CPU
loading
 Supports full duplex operation with IEEE 802.3x flow control and half duplex
operation with back-pressure flow control
 Support Wake-on-LAN Function via Link-change, Magic packet, MS wakeup
frame
 Supports dynamic power management to reduce power dissipation during idle
or light traffic

LevelOne USB-0301 Specifications

Network Specifications

network standards	IEEE 802.3: 10Base-T, IEEE 802.3u: 100Base-T
data transfer rates	Ethernet: 10Mbps (Half/Full Duplex), Fast Ethernet: 100Mbps (Half/Full Duplex)
network interface	Female RJ45 jack

Power

power consumption	850mW
power management	Suspend mode, hibernation mode

Operating Environment

operating system support	Windows® 2000, XP, Vista™, Windows®7; Mac OS X 10.x
operating temperature	0°C to 70°C

System Memory

RAM	Embedded 20KB SRAM for RX packet buffering and 20KB SRAM for TX packet buffering

Weight and Dimensions

dimensions	66 mm x 22 mm x 15 mm
weight	25g
