The embedded RF Module1 is a IEEE 802.11b/g/n compliant 2.4GHz Wireless Module.
3.1.2.1 Wireless Setup
There are several wireless operation modes provided by this device. They are: “AP
Only Mode”, “WDS Hybrid Mode”, “WDS Only Mode”, and “Universal Repeater
Mode”. You can choose the expected mode and configure the device manually.
Besides manually configuration the devices to be deployed one by one, you can also
configure your devices via the simple WEC configuration approach as stated in last
Chapter. By default, the Master AP is set to the WDS-hybrid Mode, and the Slave APs
are set to the Universal Repeater mode. You just have to manually configure the
Master AP via the web UI configuration, and use the WEC process for the rest Slave
APs.

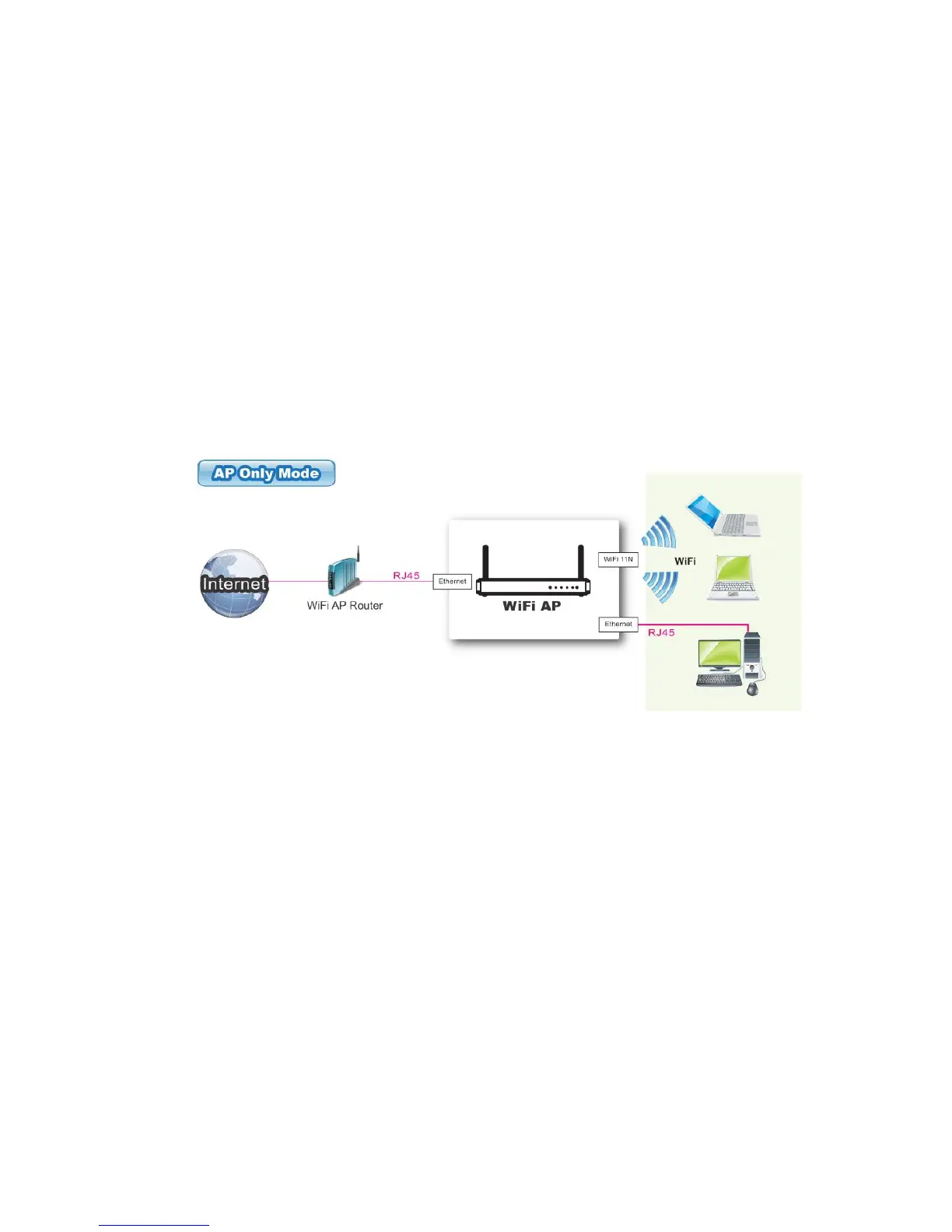

3.1.2.1.1 AP Only Mode
When acting as an access point, this device connects all the wireless stations to a
wired network.
